Zebra OTA Update & Patch Management - View

Based on the configuration settings, once Scalefusion syncs the available updates, they will start appearing on Dashboard.

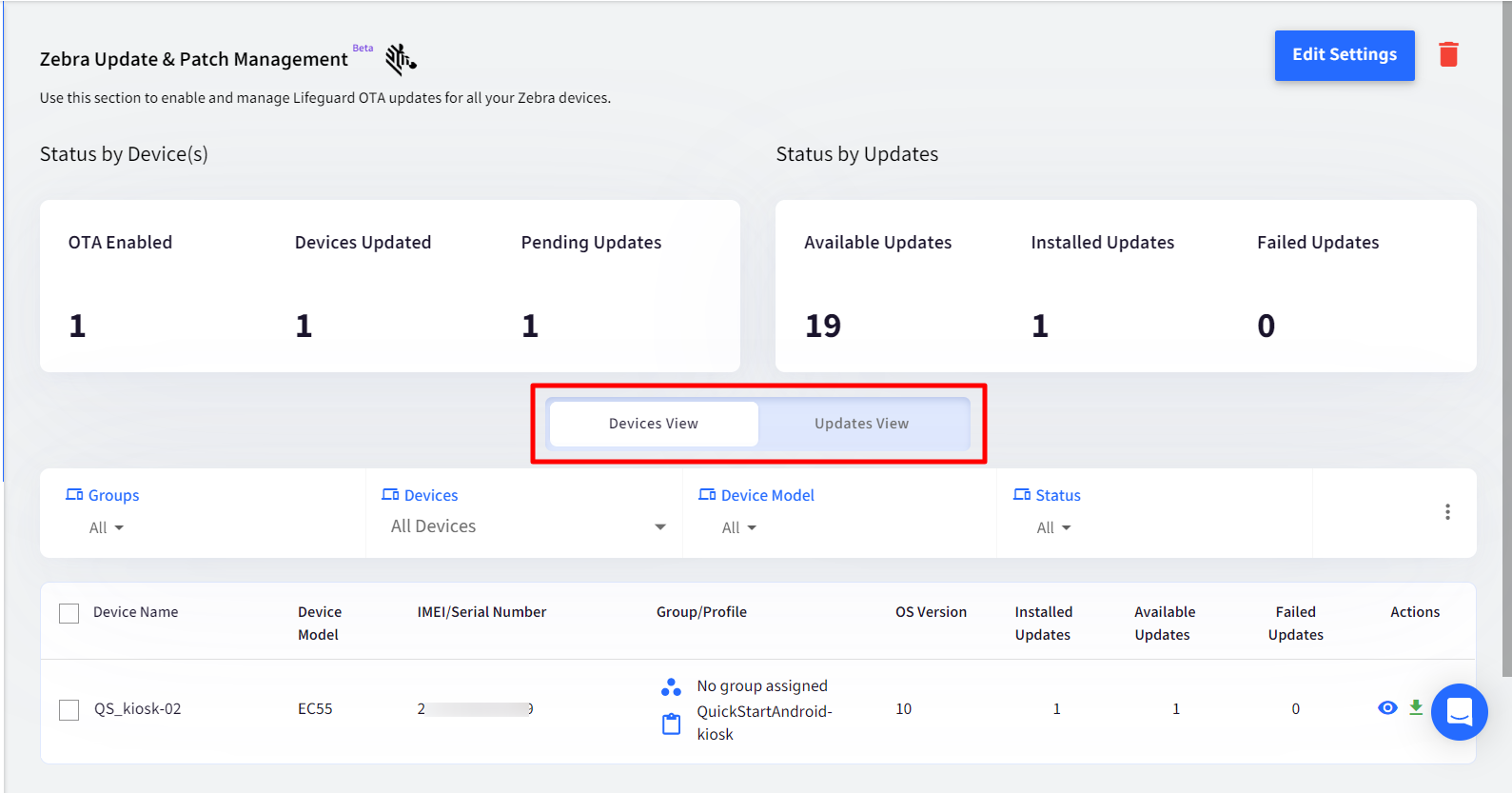

Following details are fetched and displayed in a summarized view, with respect to OS updates when you navigate to Update & Patch Management on Dashboard. There are two ways in which you can view the updates:

  1. Devices View: Provides the details based on devices
  2. Updates View: Provides the details based on updates reported

Devices View

Following are the components in device view

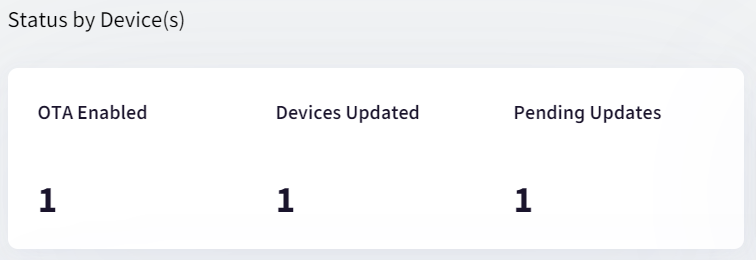

Summary

A quick view shows following information on status of updates

  • OTA Enabled: Total no. of Zebra devices that are enrolled in Scalefusion, with “Zebra Enrollment Manager” installed and configured.
  • Devices Updated: Total no. of devices which have received updates with no pending updates.
  • Pending Updates: Total no. of devices where there is at-least one update in progress/scheduled (not yet installed).

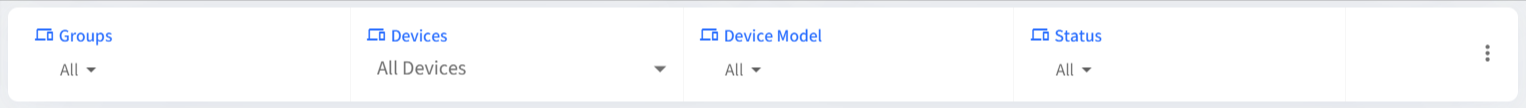

Filters

You can filter and view the devices accordingly. The devices can be filtered over following:

Filter

Description

Groups

Lists all devices in the selected group. By default, devices of all groups are shown.

Devices

Allows you to select a particular device and view its details. You can also search for a device by name, serial number, IMEI number etc.

Device Model

Shows a list of all distinct Device Models. Selecting a device model filters the list below with all devices of that model.

Status

Filters devices based on installation status of updates. The installation status can be chosen from:

  • Update Scheduled
  • Download in Progress
  • Download Done
  • Download Failed
  • Installation in Progress
  • Installation Done
  • Installation Failed

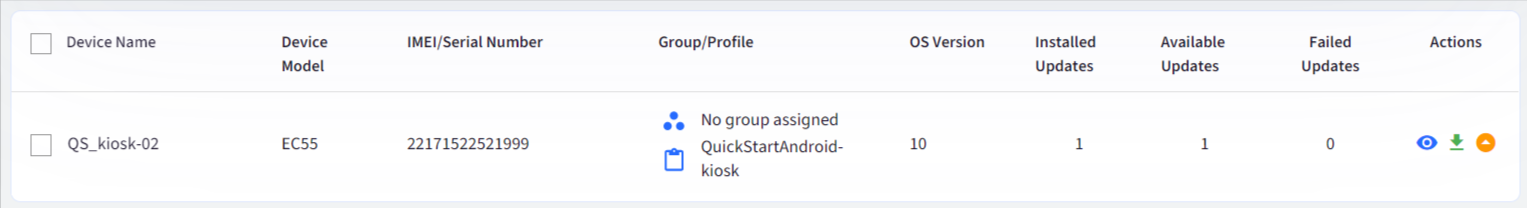

Device Details

The devices view displays following details with respect to updates:

  1. Device Name
  2. Device Model
  3. IMEI/Serial Number
  4. Group/Profile: The Group and Profile applied on the device
  5. OS Version
  6. Installed Updates: No. of updates installed on device
  7. Available Updates: No. of updates which are pending (not yet installed)
  8. Failed Updates: No. of updates which have failed to install

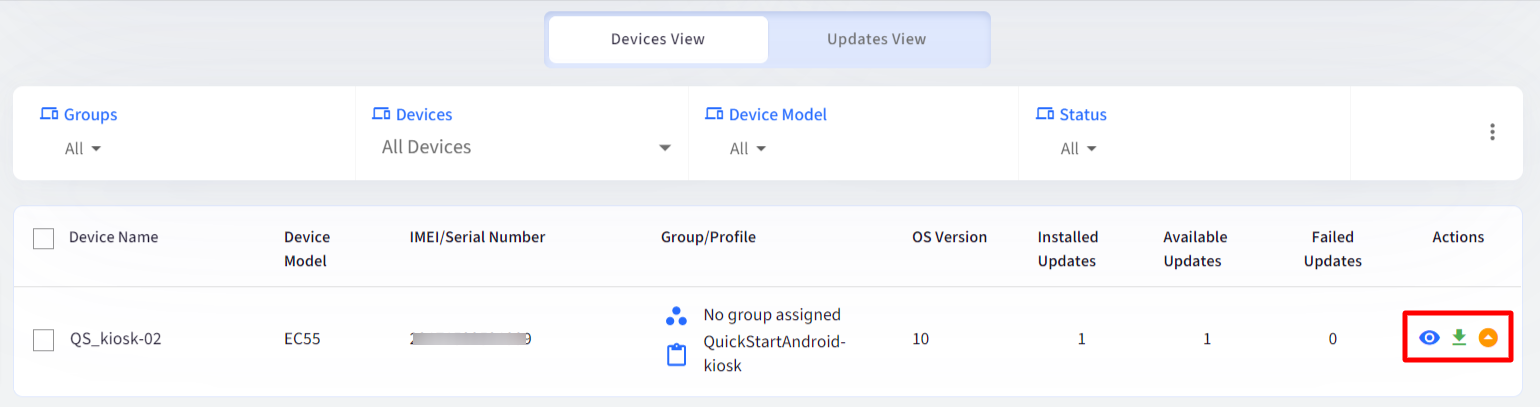

Device Level Actions

Following actions can be performed on devices.

These actions are present under Actions menu in front of each device

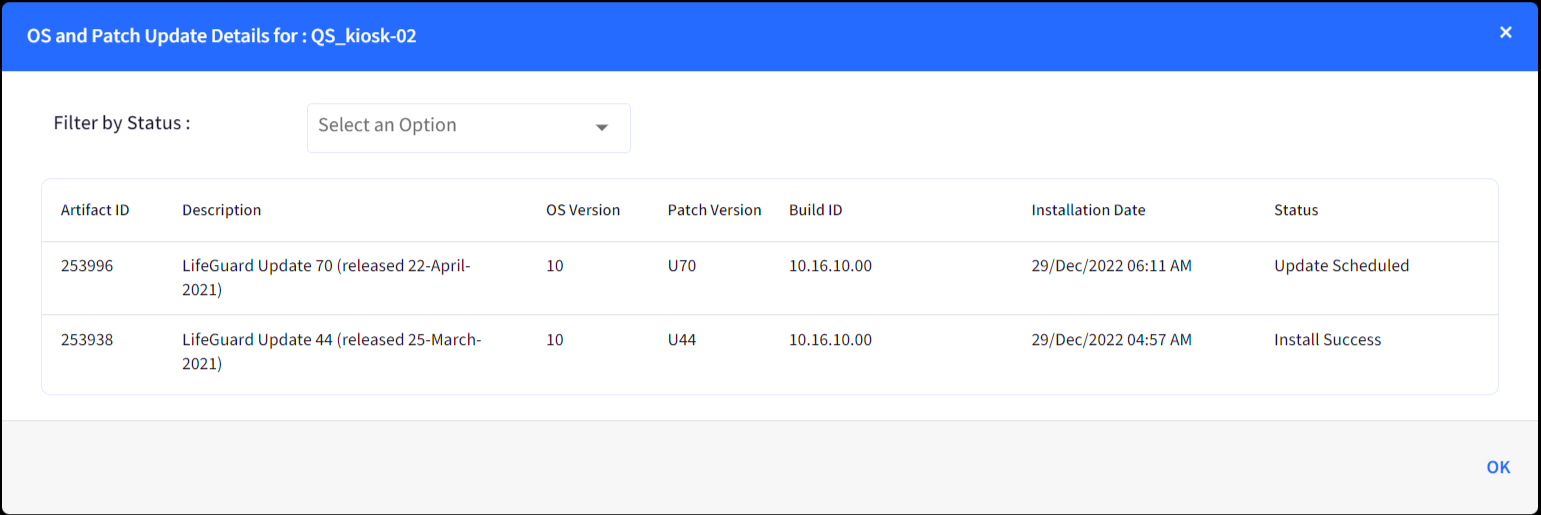

  • View: Clicking on the eye icon opens a Dialog that displays the available updates on the device and displays a consolidated view of all updates. You can also filter the updates by status in the dialog box.
  • Download: Downloads a CSV of all the updates along with their status, published date etc.

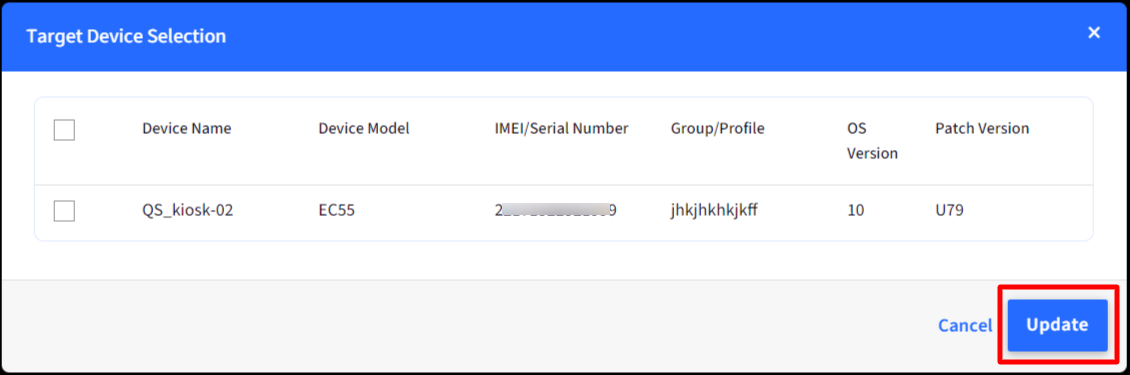

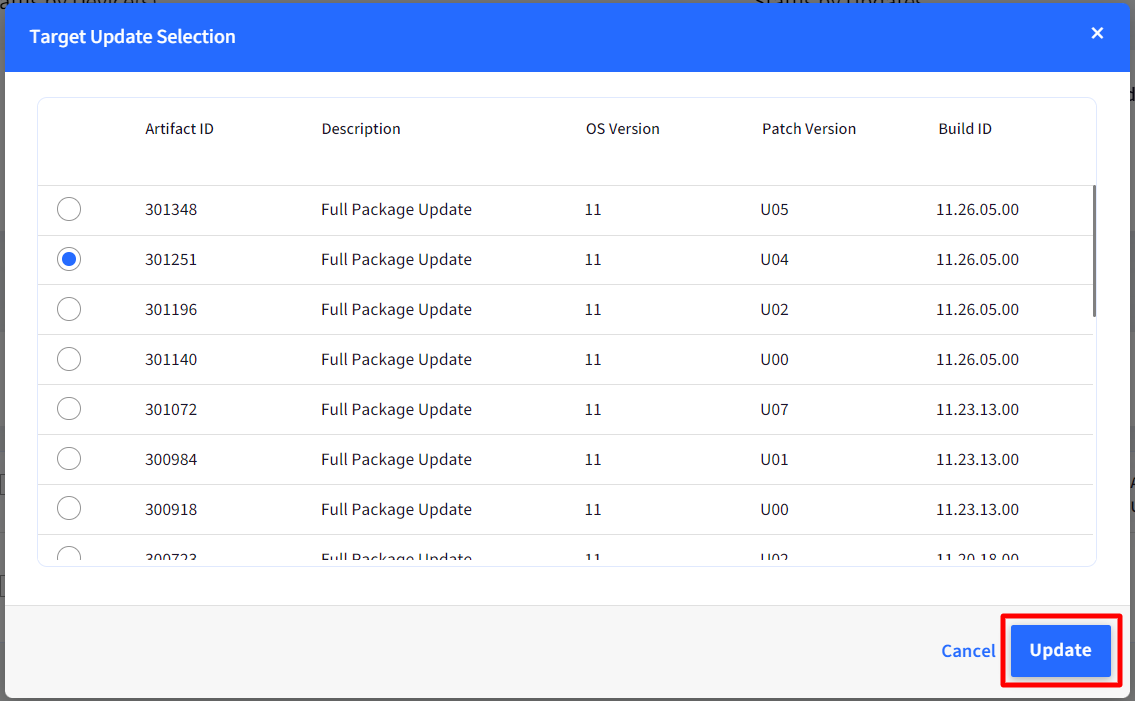

  • Push Update: This will push update on the device. On clicking push update icon, a dialog box will open. In this, select the update that you want to push on the device and click Update.
    You can push and apply only one update at a time

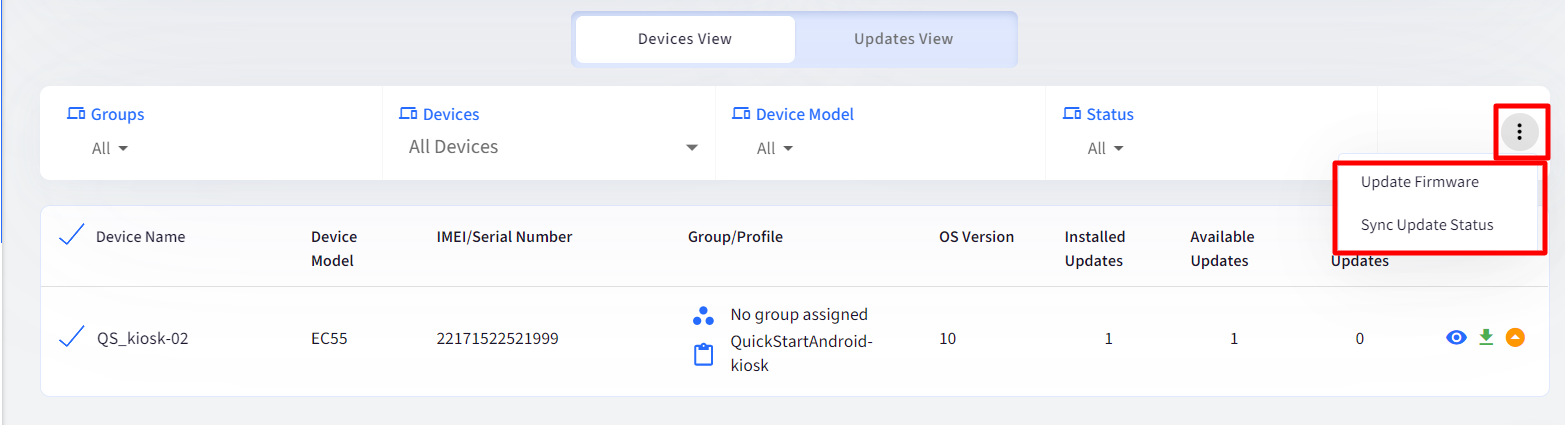

Bulk Actions on Devices

You can also perform actions on all or selected devices in bulk. Following actions can be performed:

  1. Update Firmware: Initiates installing the pending updates on all or selected devices. The latest available update for the selected devices will be applied.
  2. Sync Update Status: It syncs the status of all the updates which were approved and sent to device for Installation

To access these actions, click on the three dots at the right of filters

Updates View

Following are the components in Updates view

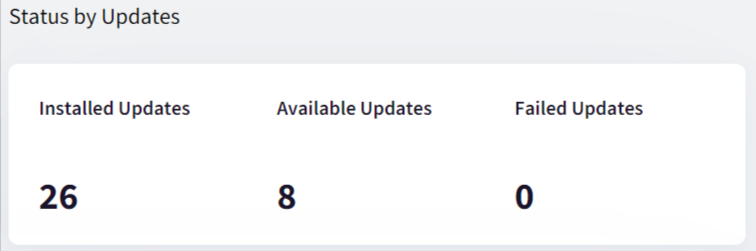

Summary

A quick view shows following information on status of updates:

  • Installed Updates: Total updates installed so far
  • Available Updates: Total updates available (pending) across the devices (all or group)
  • Failed Updates: Total updates that have failed to download or installation is failed

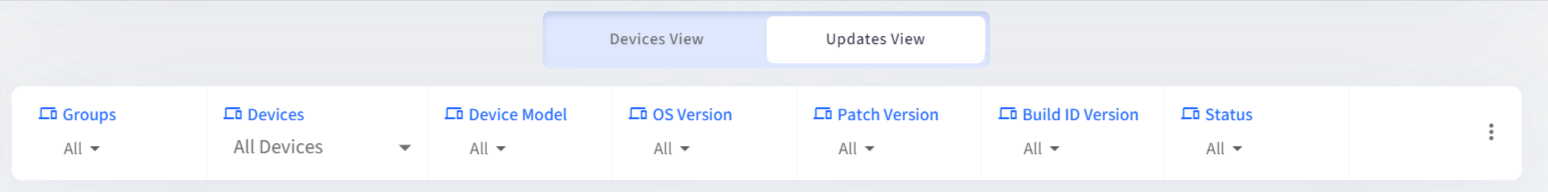

Filters

You can filter and view the updates accordingly. The updates can be filtered over following:

Filter

Description

Groups

Lists all devices in the selected group. By default, devices of all groups are shown

Devices

Allows you to select a device name and view its details. You can also search for a device by name, serial number, IMEI number etc.

Device Model

Shows a list of all distinct Device Models. Selecting a device model filters the list below with all devices of that model.

OS Version

Lists unique OS Versions available across all devices that are OTA enabled. Selecting this will display a list of all devices that have the selected OS version.

Patch Version

Lists unique Patch Versions available across all devices that are OTA enabled. Selecting this will display a list of all devices that have the selected Patch version.

Build ID version

Lists unique builds available across all devices that are OTA enabled. Selecting this will display a list of all devices that have the selected Build ID.

Status

Filters updates based on installation status. The installation status can be chosen from:

  • Update Scheduled
  • Download in Progress
  • Download Done
  • Download Failed
  • Installation in Progress
  • Installation Done
  • Installation Failed

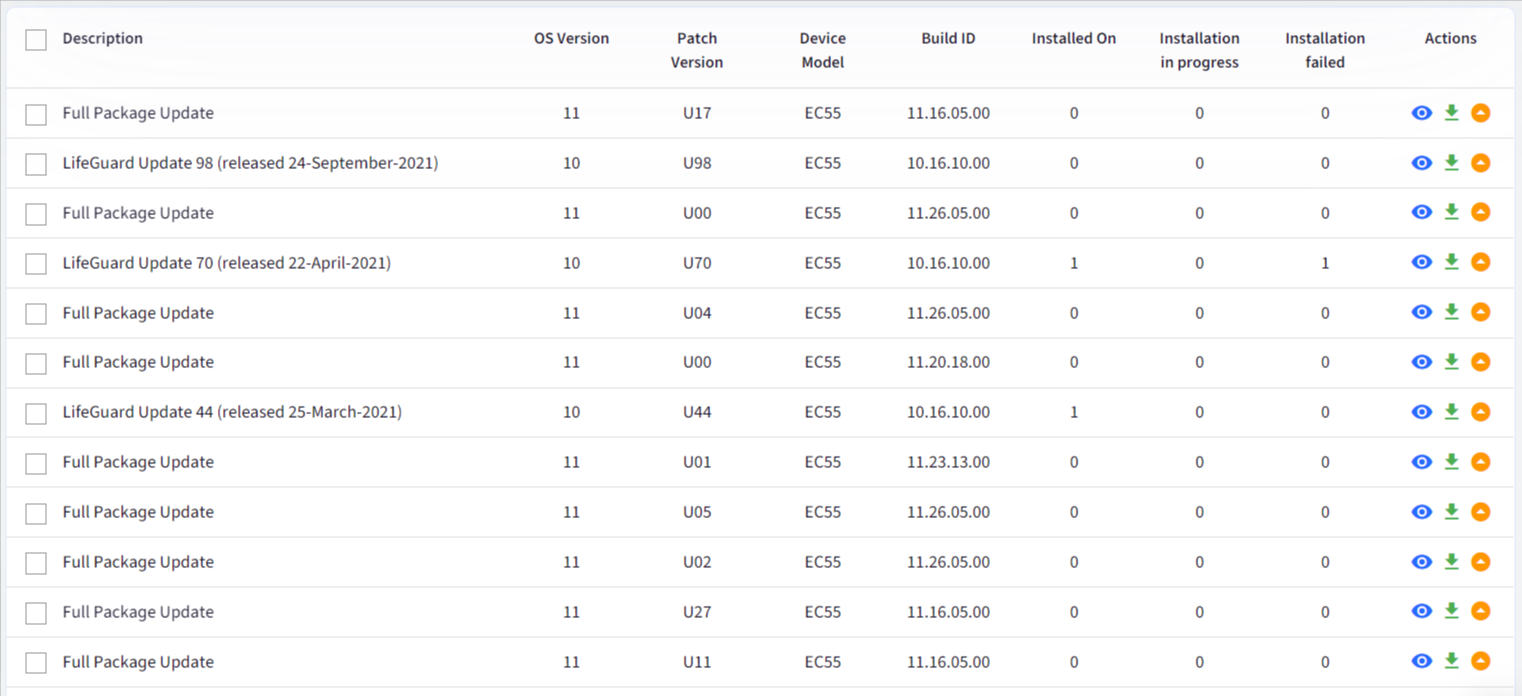

Update Details

The updates view displays following details with respect to each update:

  1. Description
  2. OS Version
  3. Patch Version
  4. Build ID
  5. Installed On: Number of devices on which this update is installed.
  6. Installation in Progress: Number of devices on which this update is being installed.
  7. Installation Failed: Number of devices on which this update installation failed.

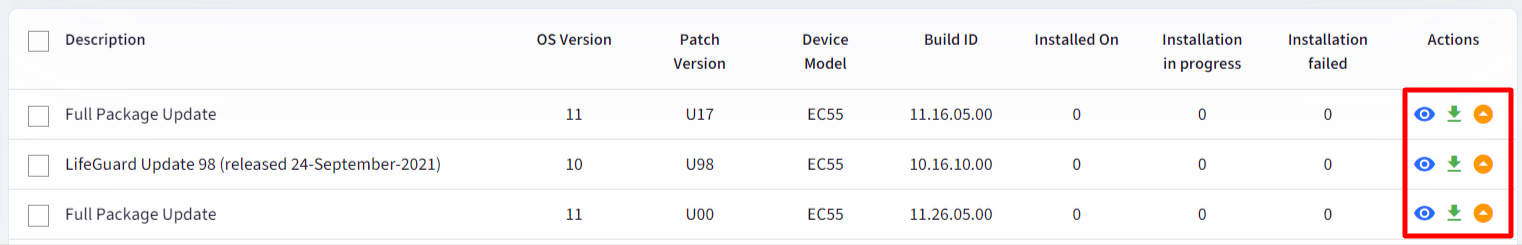

Actions on Updates

Following actions can be performed on an update:

These actions are present under Actions menu in front of each update

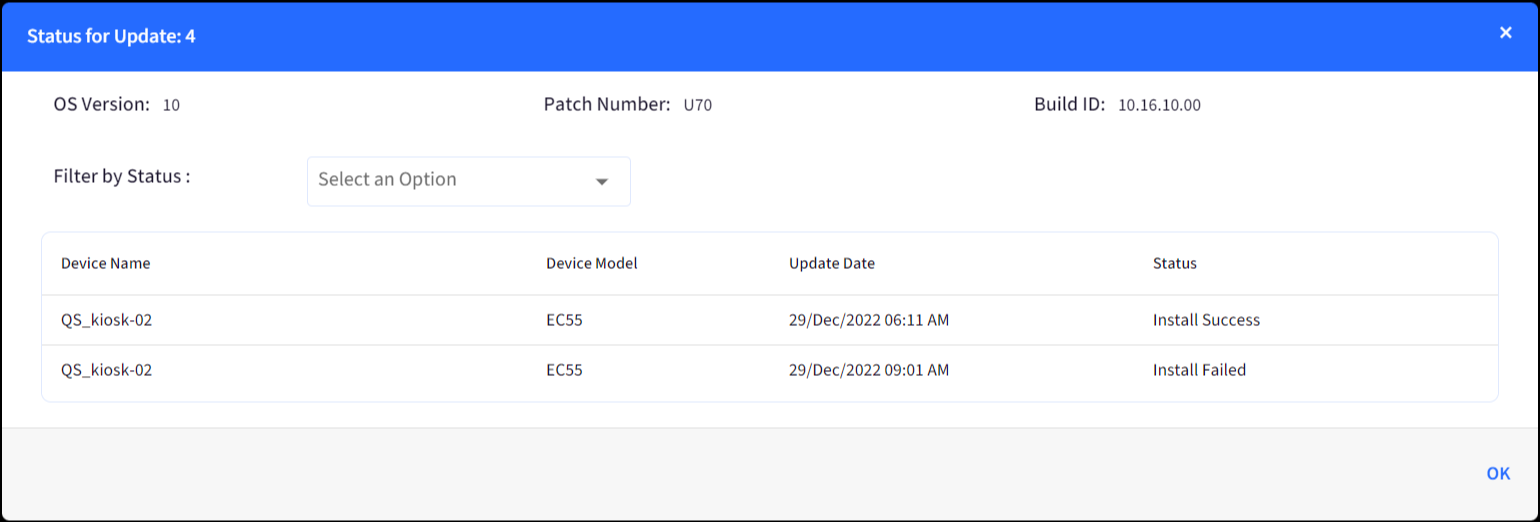

  • View: Clicking on the eye icon opens a Dialog that displays information about the update like
    • Device(s) on which it is installed
    • Device Model
    • Current status of installation on the device
    • Updated on: The date and time when the update last synced with the device
  • Download: Downloads a report of all the updates in csv format
  • Push Update: This will push update on the device. On clicking push update icon, a dialog box will open. In this, select the update that you want to push on the device and click Update.

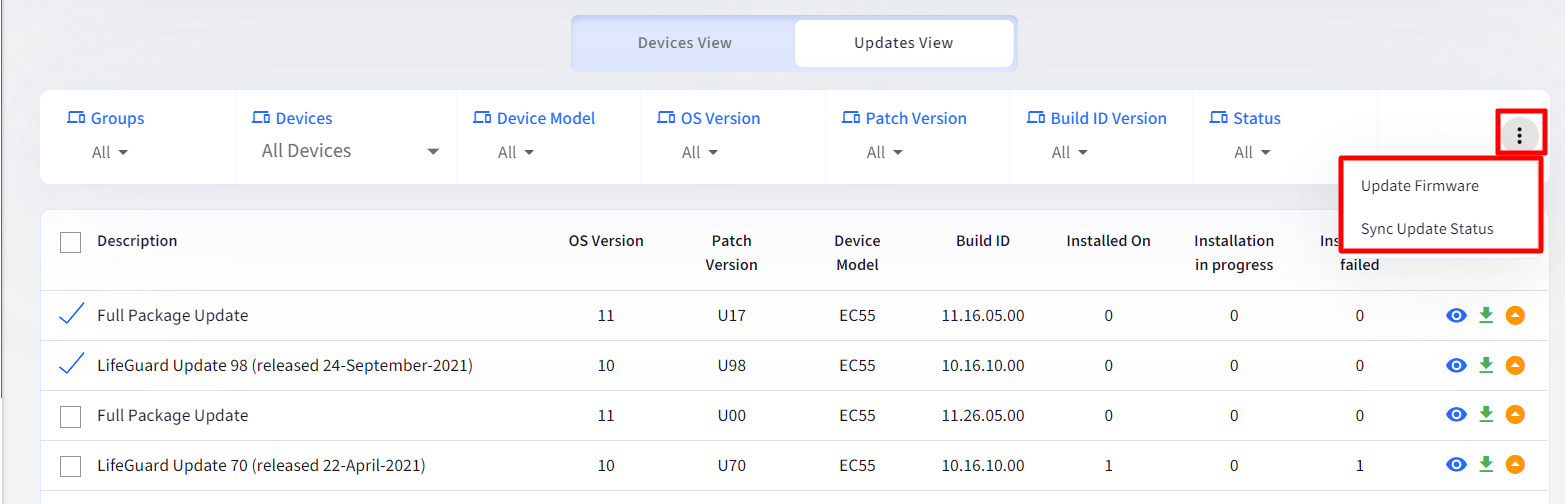

Bulk Actions on Updates

You can also perform actions on all or selected updates in bulk. Following actions can be performed:

  1. Update Firmware: Initiates installing the pending updates on the devices which are eligible for the selected update.
  2. Sync Update Status: It syncs the status of all the updates which were approved and sent to device for Installation

To access these actions, click on the three dots at the right of filters
