Application Configurations for configuring Outlook

Application Configurations or Managed Configurations offer enterprises an easy way to remotely configure applications from the Scalefusion Dashboard. App Configurations can be considered as the login credentials or setup data that can be passed to an application so that it is automatically configured without/minimal user intervention.

This document describes the App Configurations which make it easier to configure Outlook on Scalefusion managed Android and iOS devices which are employee owned (BYOD).

Before you Begin

1. For Android devices, Search and Install Outlook application from Play for Work apps as described here.
2. For iOS devices, search and install Outlook from Apple App Store as described here

Creating the Application Configuration

The first step is to create an application configuration. Follow the steps below,

Configuration for Android devices

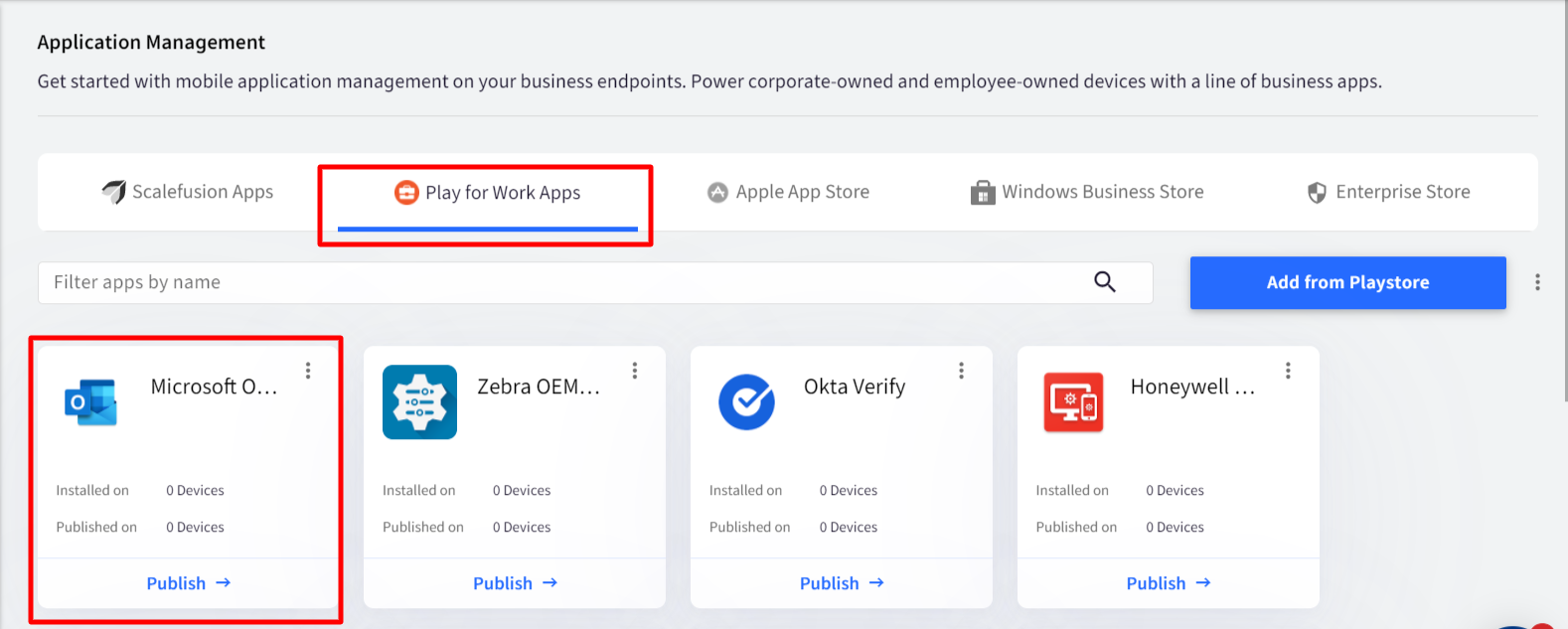

1. Navigate to Application Management > Play for Work Apps
2. Click on the Outlook app

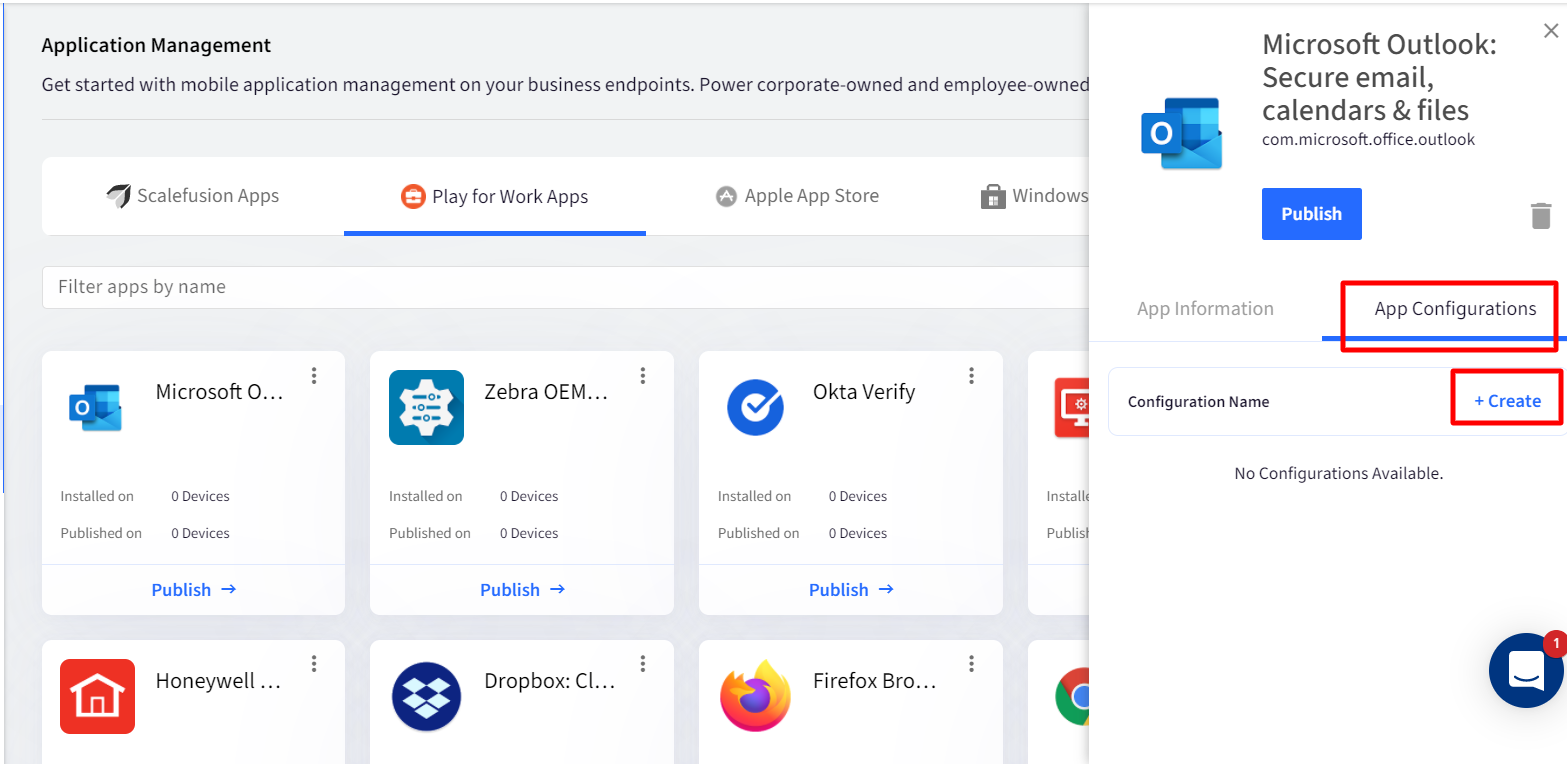

3. From the wizard on the right hand side, click on App Configurations tab and click CREATE.




4. The App Configuration wizard will be shown. Enter the details in the wizard, as provided below:
   1. Enter Configuration name. For eg. Outlook Configuration

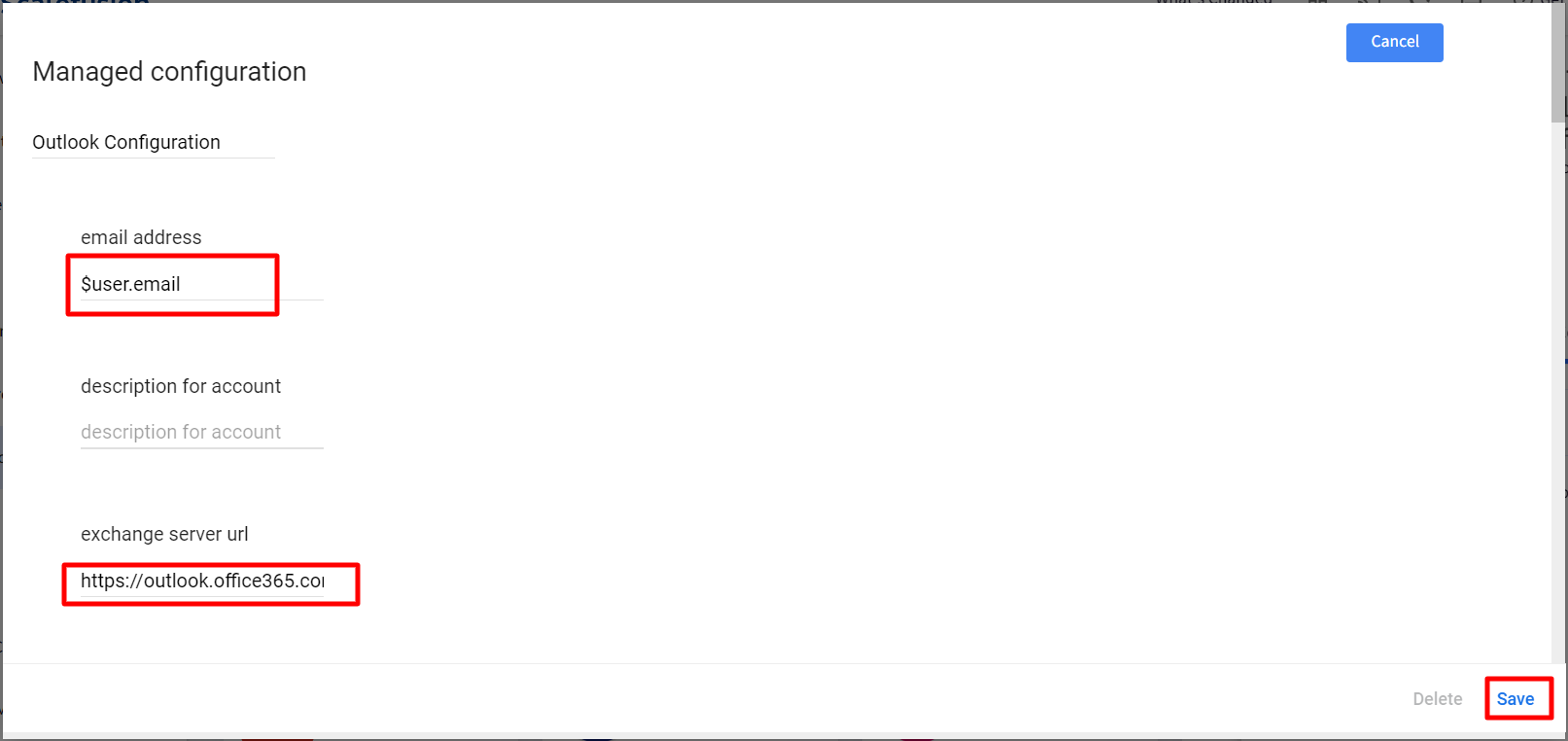

   2. Enter the following:
      In the Email Address field enter $user.email
      In the Exchange Server URL field enter https://outlook.office365.com
      All other text fields should be left blank and to their defaults
   3. SAVE: Click Save to save the configuration.

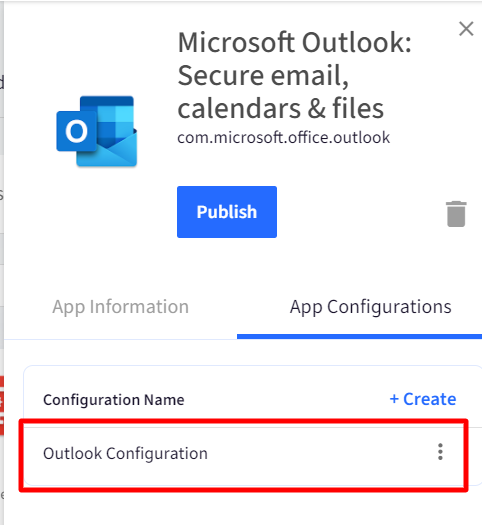

   4. Once the configuration is saved, it will reflect on Dashboard under App Configurations.




Configuration for iOS devices

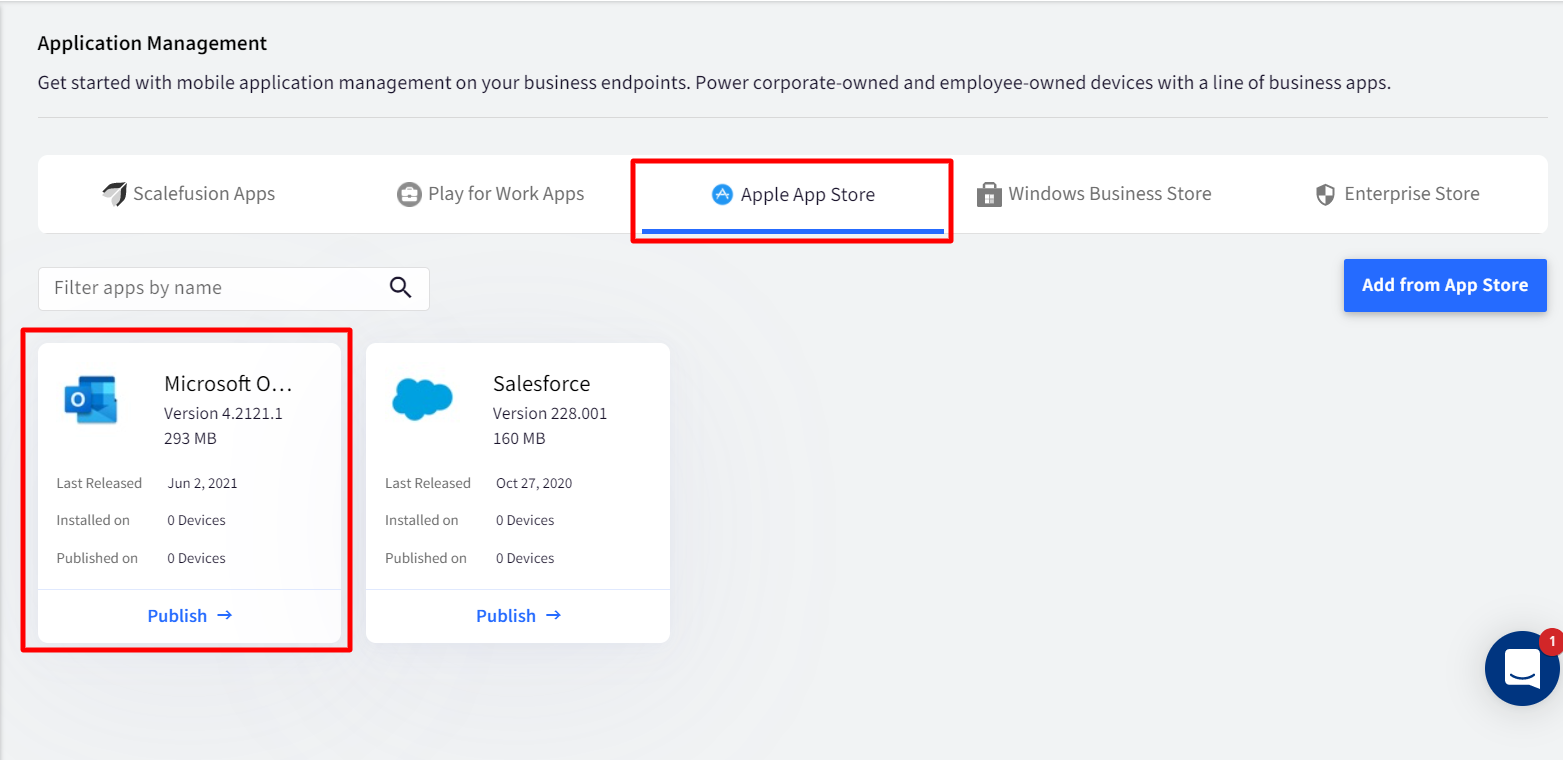

1. Navigate to Application Management > Apple App Store
2. Click on the Outlook app

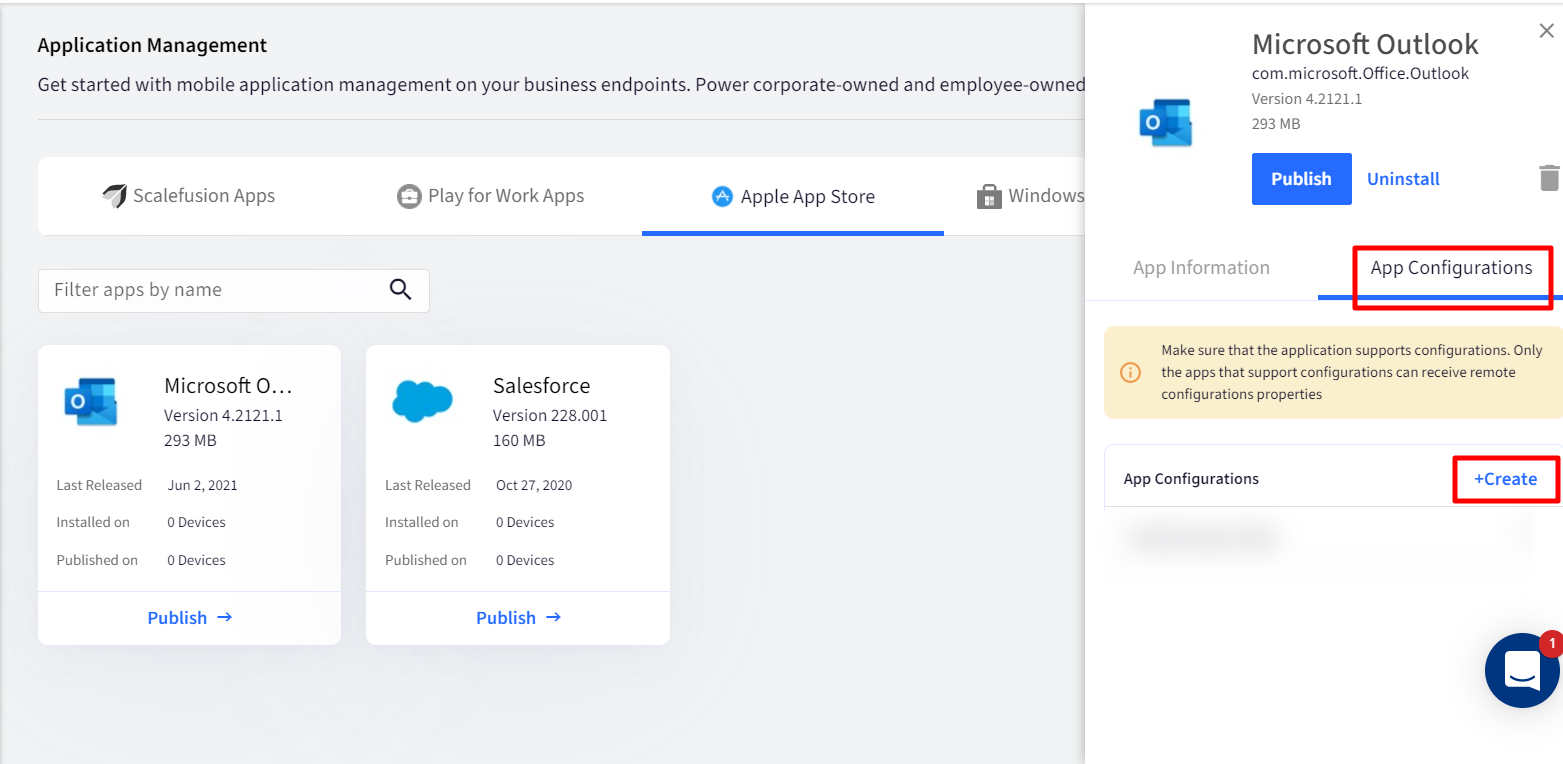

3. From the wizard on the right hand side, click on App Configurations tab and click CREATE.

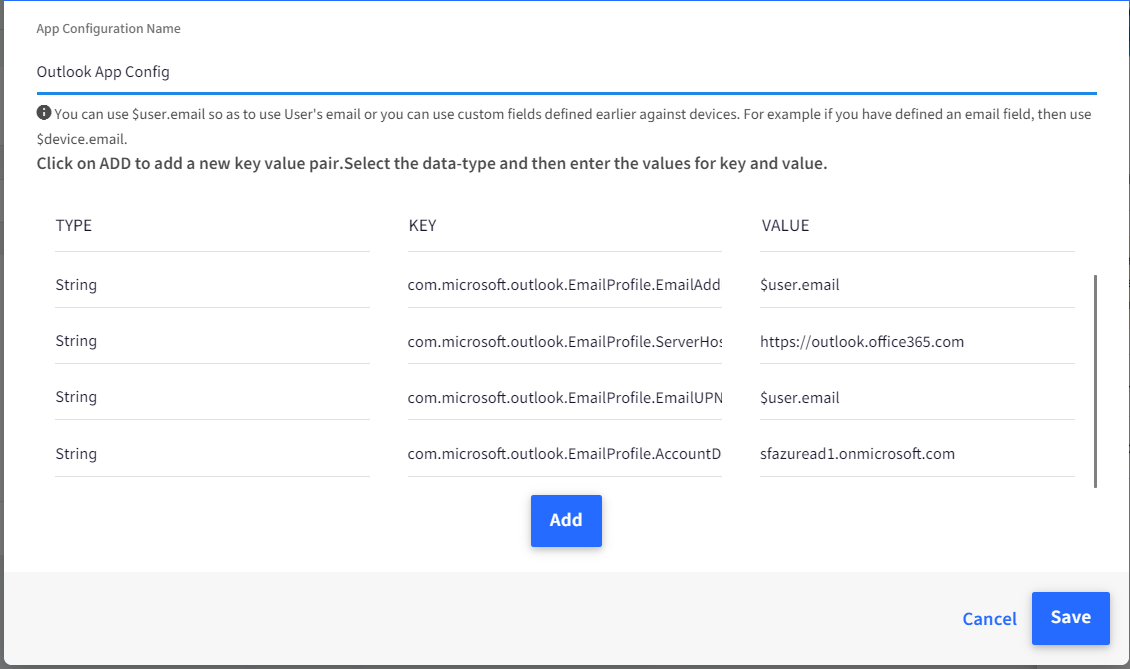

4. The App Configuration wizard will be shown. Enter the details in the wizard, as provided below:
   1. Enter Configuration name. For eg. Outlook App Config

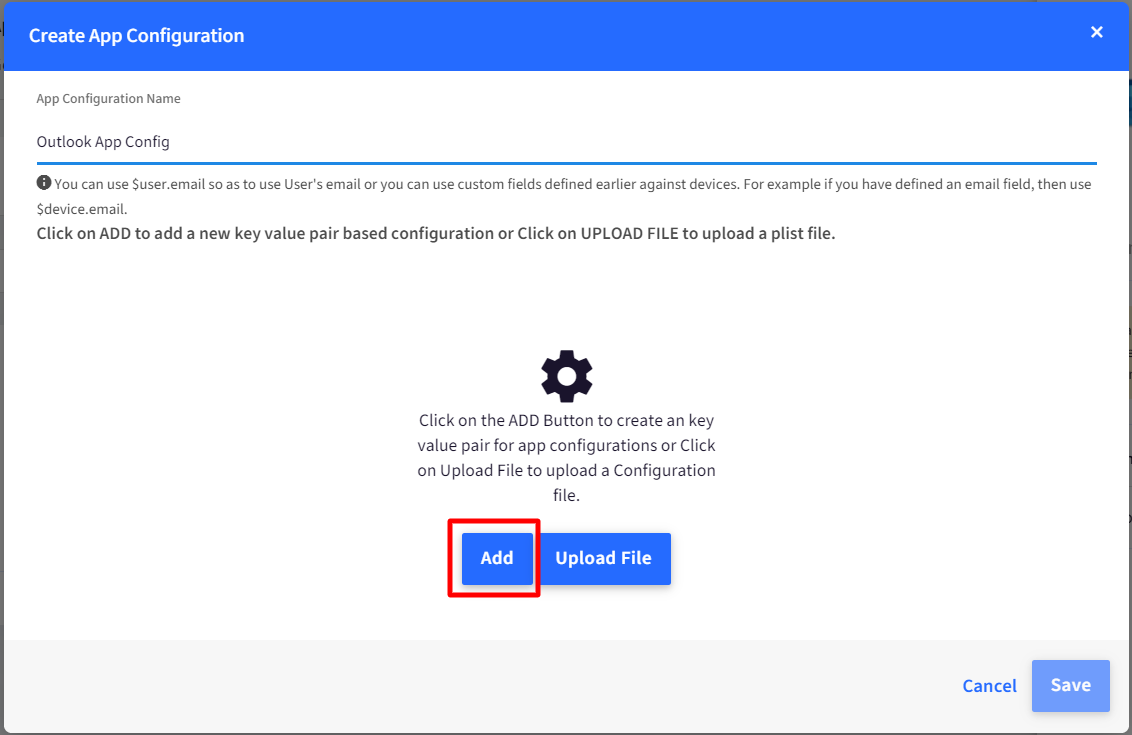

   2. Click on Add and add following fields one by one under respective heads:


      Type	Key	Value
      String	com.microsoft.outlook.EmailProfile.EmailAccountName	$user.email
      String	com.microsoft.outlook.EmailProfile.EmailAddress	$user.email
      String	com.microsoft.outlook.EmailProfile.ServerHostName	https://outlook.office365.com
      String	com.microsoft.outlook.EmailProfile.EmailUPN	$user.email
      String	com.microsoft.outlook.EmailProfile.AccountDomain	sfazuread1.onmicrosoft.com This is the domain name of your company's email






   3. SAVE: Click Save to save the configuration.

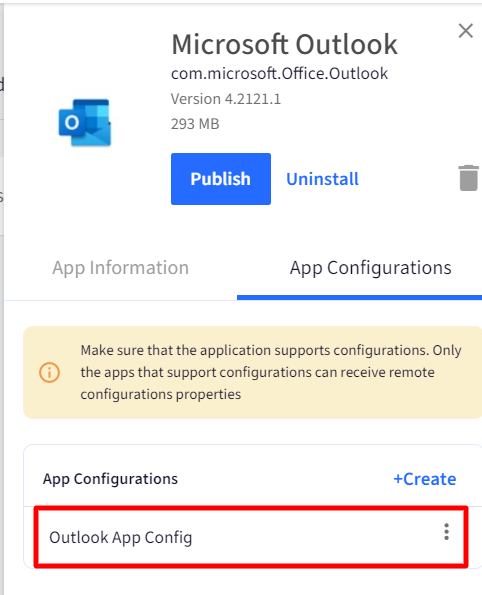

   4. Once the configuration is saved, it will reflect on Dashboard under App Configurations

1. Following actions can be performed on the configurations:
   1. Publish: Used to Publish the configuration on the selected devices.
   2. Edit: Used to edit the configuration.
   3. Un-publish: Used to un-publish the configuration from previously published devices.
   4. Delete: delete and un-publish this configuration.

Publishing the Application Configuration

The next step is to publish the configuration to push them on devices. Follow the steps below,

Android

1. Navigate to Application Management > Play for Work Apps.
2. Click on the Outlook app.

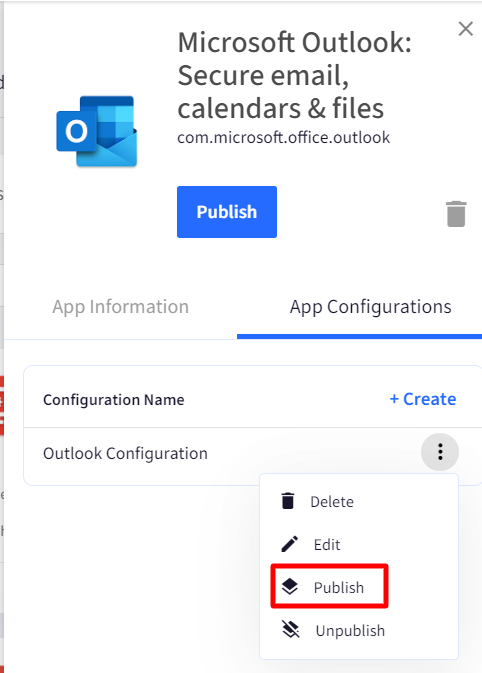

3. Click on the App Configurations tab to see the list of configurations. Click on the three dots next to the configuration and click on Publish.

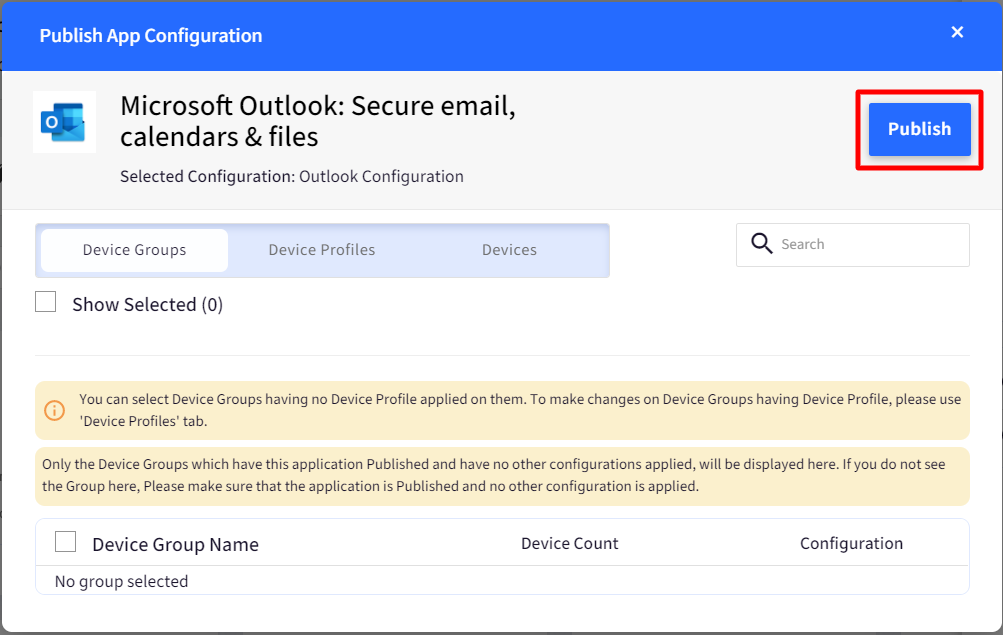

1. Select Device Groups or Device Profiles or Devices and click PUBLISH




1. Once the configuration is pushed, it would take around 5 minutes for the configuration to take effect on the device.

iOS

1. Navigate to Application Management > Apple App Store
2. Click on the Outlook app.

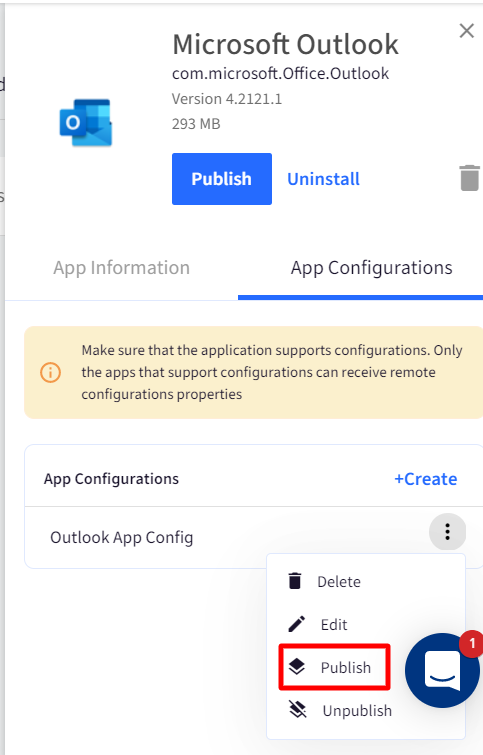

3. Click on the App Configurations tab to see the list of configurations. Click on the three dots next to the configuration and click on Publish.

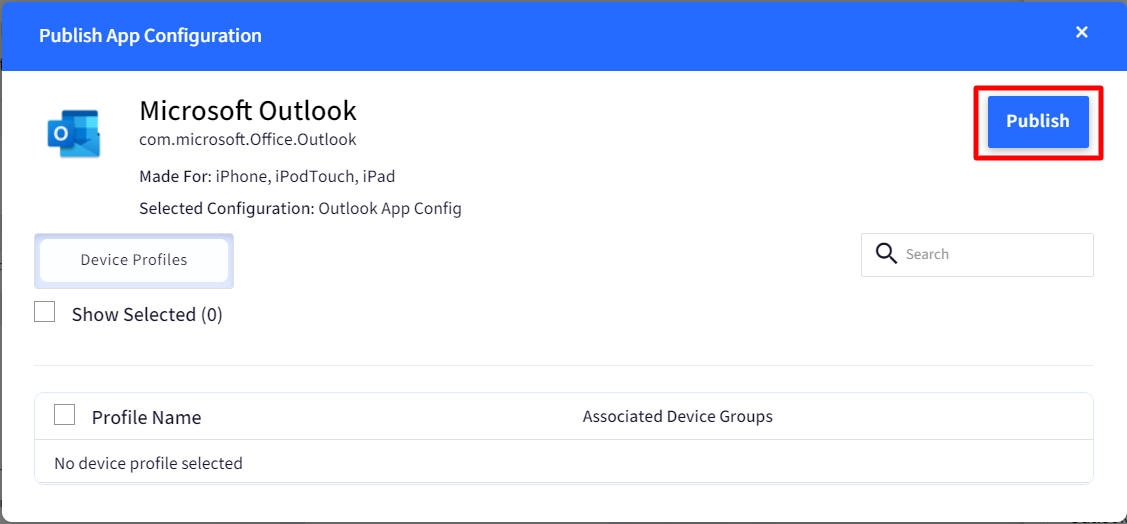

4. Select Device Profiles and click PUBLISH

Corporate Owned devices

For Corporate owned devices use $device.<custom field> in any of the configuration fields. For more information on custom fields, please click here.
