Zero-Touch Enrollment for Android Devices

As described in Android Enterprise Help, Zero-touch enrollment is a streamlined process for Android devices to be provisioned for enterprise management. On first boot, devices check to see if they’ve been assigned an enterprise configuration. If so, the device initiates the fully managed device provisioning method and downloads the Scalefusion MDM agent, which then completes setup of the managed device.

Android zero-touch enrollment offers a seamless deployment method for corporate-owned Android devices making large scale roll-outs fast, easy and secure for organizations, IT and employees.

This document guides on how-to setup Scalefusion Dashboard to be used in conjunction with Zero-Touch devices. We would highly recommend referring to original Android Zero-Touch help document here before you start setting up zero-touch in Scalefusion Dashboard.

Before You Begin

1. Procure a Zero-Touch portal account from a reseller partner. Find the list here.
2. Compatible Zero-Touch device from the list in Android Zero-Touch site.
3. A valid Scalefusion account.
4. Complete Android for Work setup, Create a Device Profile and QR Code configuration.

Visual Guide

You can watch our video guides to get yourself acquainted with the steps to configure Zero-Touch enrollment.

Part 1 - Zero-Touch setup on Scalefusion Dashboard

Part 2 - Zero-Touch Enrollment on Android Device

Coming Soon!!

Zero-Touch Setup on Scalefusion Dashboard

Zero-Touch streamlines the enrollment process of devices and makes Scalefusion android client the device owner right on the first boot. Since it automatically enrolls the device, certain steps in Dashboard are mandatory before you proceed with the Zero-Touch.

Steps on Scalefusion Dashboard

The steps below refer to other help documents for mandatory steps, so that the focus is on Zero-Touch setup.

1. Sign In to Scalefusion Dashboard.
2. Setup Android for Work.
3. Create a Device Profile for your zero-touch devices.
4. Create a Device Enrollment Configuration (a.k.a QR Code) that can be used for zero-touch enrollment as well.
5. Navigate to Getting Started > Android Enterprise Setup
6. Click on the Android Zero Touch & Samsung KME Setup tab.
7. Click on CREATE CONFIGURATION to start creating a configuration,

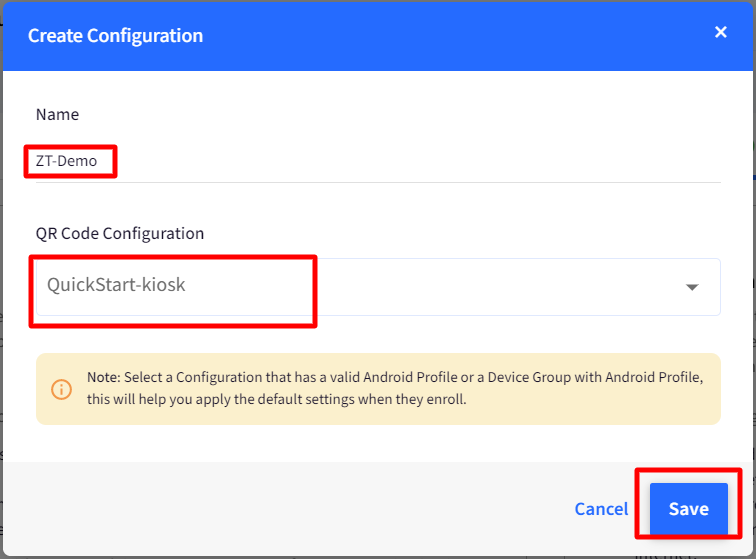

8. In the configuration creator window enter a name for your configuration, select a QR Code configuration and click on SAVE

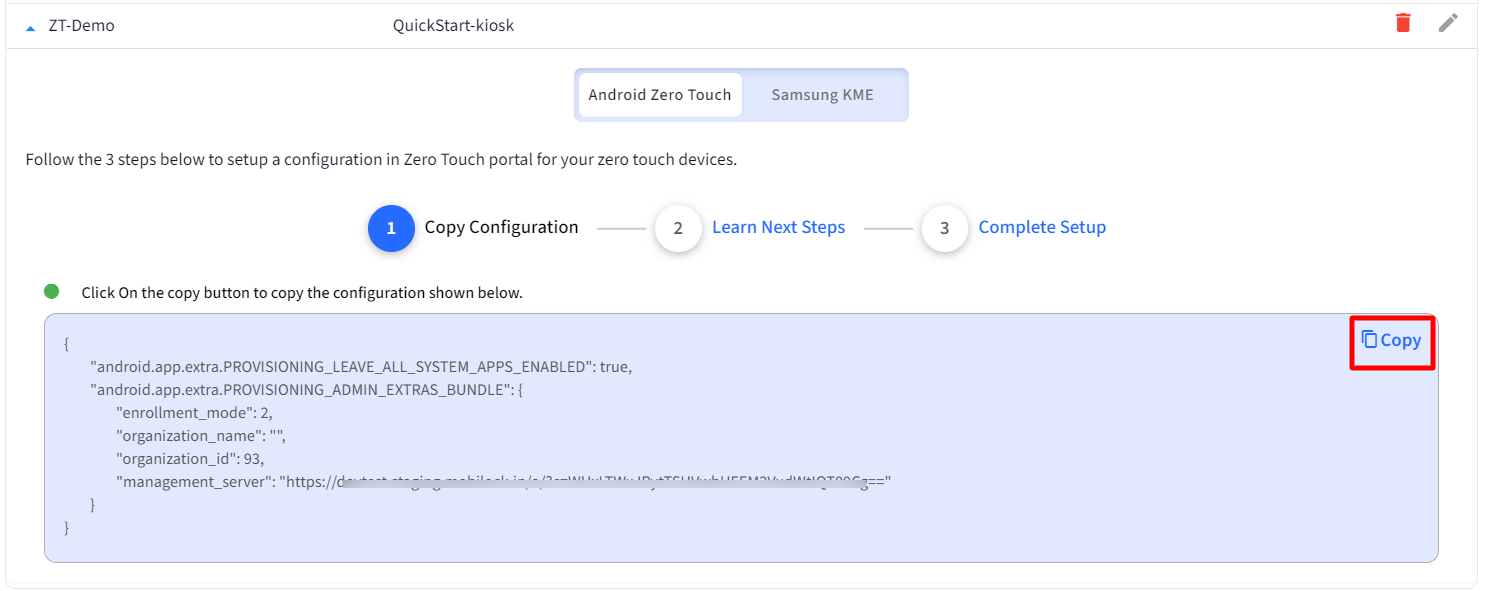

9. Once the configuration is created it will be shown in the list of configurations, click on it to expand it. This expanded view guides on the next 3 steps,
   1. Copy Configuration: Click on the Copy icon to copy the configuration.
   2. Learn Next Steps: Links to this help document and video to guide any admin in your dashboard on how to use.
   3. Complete Setup: From this point you would have to navigate to Android's Zero-Touch portal to finish setup.



10. Once you have copied the configuration as shown above, click on the Complete Setup step. Click on the Sign In link to navigate to zero-touch portal. Follow the steps in section below to complete the setup.

Steps on Zero-Touch Portal

1. Once you Sign-In to the zero-touch portal, click on Configurations tab on the side bar. Click on the + symbol to create a new configuration.
2. The configuration creator in zero-touch portal offers you the settings mentioned below. Once you have filled in all fields, click ADD to add the configuration.
   1. Configuration Name: Give your configuration a name that describes its purpose. Choose a short, descriptive name that's easy to find in a menu. For example, Sales team or Temporary employees.
   2. EMM DPC: Select your Scalefusion Pro - MDM & Kiosk Lockdown Agent from this list.
   3. DPC Extras: Paste the configuration payload that you copied in Step 9.
   4. Company Name: Set this to the name of your organization. Zero-touch enrollment shows this company name to your device users during device provisioning. Shorter names that are easily recognized by your organization's employees work best.
   5. Support Email Address: Set this to an email address your device users can contact to get help. This is typically your internal support email address, for example,  it-support@xyzcorp.com. Zero-touch enrollment shows this email address to device users before device provisioning. Because device users can see the email address but can't click it to send a message, choose a short email address which users can type on another device.
   6. Support Phone Number: Set this to a telephone number your device users can call, using another device, to get help. This is typically the phone number of your IT support team. Zero-touch enrollment shows this number to your device users before device provisioning. Use the plus sign, hyphens, and parentheses to format the telephone number into a pattern that your users will recognize.
   7. Custom Message: Optionally, add one or two sentences to help your users contact you or give them more details about what’s happening to their device. Zero-touch enrollment shows this message before the device is provisioned.

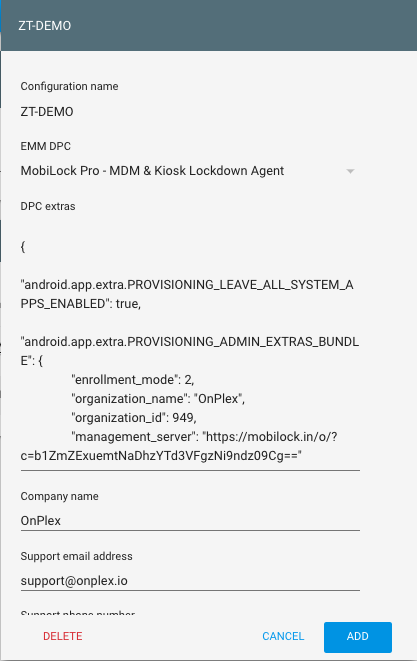

      The following image shows a reference configuration,



3. Click on the Devices tab to see the list of devices and assign the configuration to them.

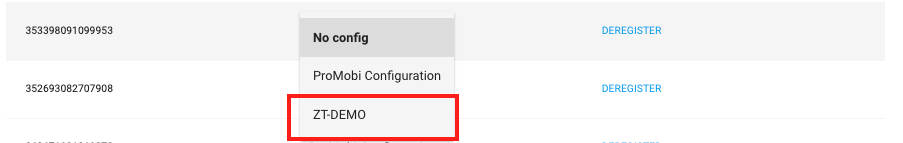

   1. Select a Configuration: From the drop down select the newly created configuration.

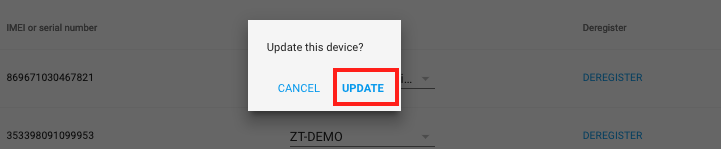

   2. Confirm the action: Click on UPDATE to confirm the action.



4. This completes the steps on Zero Touch portal. Now you can power on the device to complete the steps on device.

Steps on Zero-Touch Device

1. Once you power on the device that has a zero-touch configuration assigned as described above, it will download the Scalefusion android client and enroll into Scalefusion.
2. Users would see the Scalefusion permission screen and once the permissions are given the device will be locked to Scalefusion home screen.
3. User Authenticated Enrollment: If you have selected User Authenticated Enrollment in QR code configuration, you will get the user authentication screen after permissions.
   1. Enter the user's email id (id added at the time of adding user) and tap Continue.



   2. You will receive OTP on the registered email id. Enter the OTP on the device and Submit.
   Sign in as Admin: Tapping on Sign in As admin will ask for exit password. Once you enter the password, it will lock you into Scalefusion.
   This option can be used by admins if they are setting up the devices for end users. With this, admins will be directly led to Scalefusion home screen without authentication and check if policies, published apps are present and working fine or not and then hand over the devices to end users.



Silent Setup using Wingman

Using Wingman admins can do silent setup which means all the permissions will be auto-granted. Admins get an option in Dashboard to enable this. In Utilities -> Global Settings there is a flag Use Wingman to Auto-configure permissions at Setup. This needs to be enabled.

Once enabled and if there is Wingman supported for the device then it will be downloaded and all the permissions will be auto-granted.

Frequently Asked Questions

Question: Why are we shown an error when we click on CREATE CONFIGURATION in Zero Touch Setup tab in Scalefusion?

Answer: There are two cases, when you might see an error,

• You have not created a QR Code with an Android Kiosk Device Profile.
• You have already created zero-touch configuration using all the QR Code configurations that you have created.

Question: How many zero-touch configurations can we create in Scalefusion?

Answer: You can create as many QR Code configs and/or Android Kiosk Device Profiles you have.

Question: We have created the configuration, but nothing happens on the device?

Answer: Make sure that you have complete the steps on Android Zero Touch portal and assigned a configuration to the device. Also make sure that you copied the configuration from Scalefusion properly.

Question: Do we need to still give permissions to Scalefusion during setup, if we are using Zero Touch?

Answer: Yes. For some of the Scalefusion features that go beyond basic managements, these permissions are mandatory. Hence we mandate it during setup. However we are coming up with changes that would let an IT Admin make these permissions optional if they do not want the associated features.

Question: Do we need to manually assign configurations to each device one-by-one in Zero-Touch portal?

Answer: No. You can make one configuration as the default configuration for all your new/subsequent zero-touch devices. The option to make a configuration default is available in the Configuration section of Android zero-touch portal. For all the existing devices, you can upload a CSV. Refer to the Assigning a configuration sections here.

Question: What happens if we do not provide a SIM/Wi-Fi network when the device is powered on for the first time?

Answer: The device boots as a normal device. However once the device connects to network, it prompts the users to setup the device to be used for Android for Work. It gives the users a one hour grace period, before an automatic hard reset is done and the device reboots to download Scalefusion.

References

Some of the documentation in this guide has been verbatim copied from Android Enterprise Help for zero-touch here.
