Workflows - Scheduling Tasks & Actions

Scalefusion's Workflows allows IT Admins to schedule repeated tasks and additionally add actions when these tasks are performed. Workflows are designed to be granular and gives you the control to define a task for a particular platform. Workflows also give you detailed reports of the task that was scheduled and are offers option to execute them like a script.

In the first cut we have added the most frequently asked actions, but we intend to extend the actions to allow integration with web-hooks and other data providers.

Introduction to Workflows

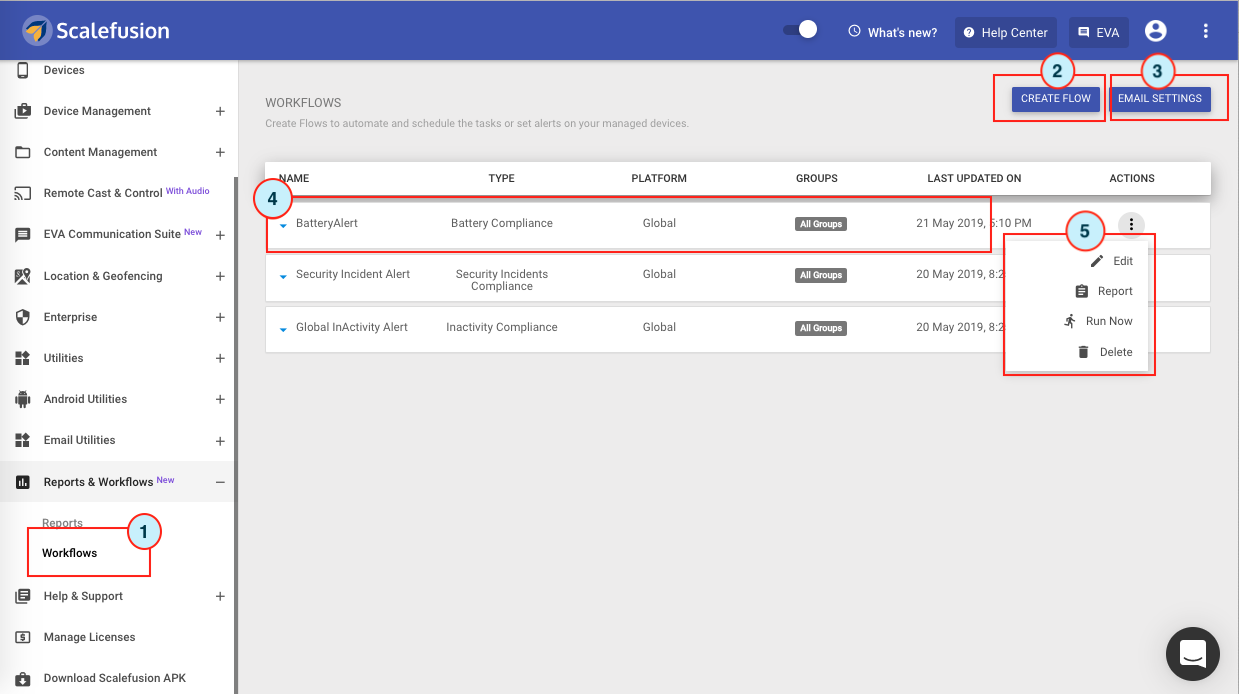

1. The illustration below followed by the description gives you an overview of the Workflow feature,



   1. Workflows: Navigate to Dashboard, Reports & Workflows > Workflows to access the Workflows page.
   2. CREATE NEW: Use this button to create new Workflows.
   3. EMAIL SETTINGS: Use this button to define the global email settings for Workflows.
   4. Workflows List: List of Workflows created till now and their details.
   5. Action Menu: Workflow specific action items.
2. The following are the general rules and conventions for the Workflows,
   1. Workflows are designed to work on Device Groups only.
   2. Workflows are primarily of two types,
      1. Scheduled Task: Typically tasks that change the state of the device or take action on the applications.
      2. Compliance: Typically alerts around various device metrics and events.
   3. For each type of Workflow, each Device Group can have at the maximum of one Workflow.
   4. Workflows of type Scheduled Tasks are scheduled based on Dashboard timezone or the timezone that you select. At the selected time and timezone a push message is sent to the device.
   5. Workflows of type Scheduled Tasks require the device to be online (except few workflows for Android which also work in offline mode) at the scheduled time to receive the push.
   6. Workflows of type Compliance work based on the data that is synced by the devices.

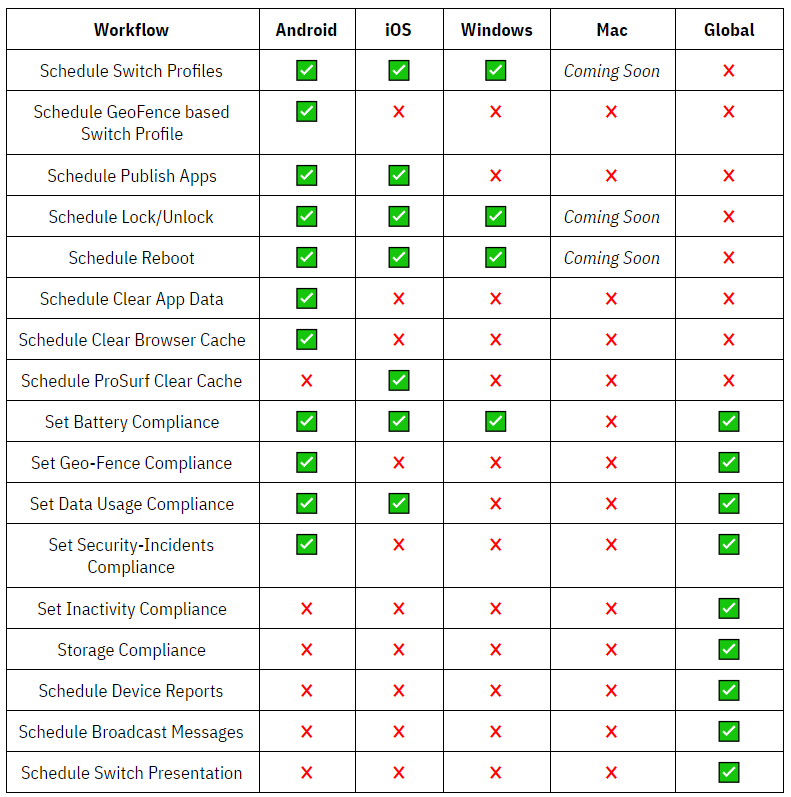

1. The table below shows the Workflows available and the supported platforms/OS,



Migration of Alerts

Our current Dashboard users will observe that, we have removed the Alerts section. We have taken care to migrate the alerts so that you can add additional functionality to them which Workflows offer.

As you navigate to Workflows, you would observe that the Alerts that you might have created earlier would appear as Workflows. Below is a description of the alerts migration rules,

1. Security Incident Alert: This alert used to track the security incidents related to Force unlocks and SIM-Swaps. This is migrated to Workflow with name Security Incident Alert, retaining the settings related to incident reporting.



2. Global InActivity Alert: This alert used to track the device inactivity and has been migrated to Workflow with name Global InActivity Alert, retaining the settings related to inactivity reporting.



3. Battery Level Alert: This alert used to track the battery level of devices at a group level and send out emails. This alert will be migrated with the same name as earlier, and will retain the groups that it was associated with. However for each group it was associated with, it will create a separate Workflow for each platform, one for Android, iOS and Windows. If an alert was created without groups, then an alert will be created for All Groups.
4. Geo-Fence Alert: This alert used to track the geo-fence breaches of devices at a group level and send out emails. This alert will be migrated with the same name as earlier, and will retain the groups that it was associated with. However for each group it was associated with, it will create a separate Workflow for each platform that is one for each Android group. If an alert was created without groups, then an alert will be created for All Groups and All GeoFences.
5. Data Usage Alert: This alert used to track the data usage consumption of devices at a group level and send out emails. This alert will be migrated with the same name as earlier, and will retain the groups that it was associated with. However for each group it was associated with, it will create a separate Workflow for each platform, one for Android and one for iOS. If an alert was created without groups, then an alert will be created for All Groups.

Frequently asked Questions on Migration of Alerts

Question: Why don't we see our old alerts related to Battery Level, Data-Usage and/or Geo-Fence?

Answer:If the group that the alert was set for, did not have any devices, then the alert will be discarded.

Question: We had created one Battery Level alert, but why do we see 3 Workflows tracking Battery Level?

Answer: Workflows are designed to work at OS/Platform level. So if the alert had a group that had at-least oneAndroid, iOS, and Windows device then three Workflows for each platform will be created. If the group did not have iOS devices then only 2 Workflows will be created, one each for Android and Windows.

Workflows - Scheduled Tasks

These type of Workflows are useful to schedule tasks that take actions on the device in the selected groups. These are useful in automating Dashboard functionality based on time and days. In this section we will see the Workflows of type Scheduled Tasks available and how they work. Please click here to learn more about these type of Workflows.

Workflows - Compliances

These type of Workflows are useful to set alerts on device vitals and metrics and then associate actions when the particular compliance is hit. The actions can be set to send emails or to alert the user to take an action. Please click here to learn more about these type of Workflows.
