Device Reports

Updated 6 months ago by Shally Maheshwari

Through Scalefusion dashboard you can generate a wide range of reports that provide important information on its managed devices, ranging from Data Usage, Device Inventory, Device Vitals and many more. These reports allow you to proactively monitor the health and activity of endpoints across your organization more effectively.

This document gives a description of Device Reports that give all important information related to your managed devices on Scalefusion.

We have the following device reports:

  1. Data Usage
  2. App Version
  3. Device Inventory
  4. Sim Swaps
  5. Unlock Attempts
  6. Device Vitals
  7. Device Availability
  8. Battery History

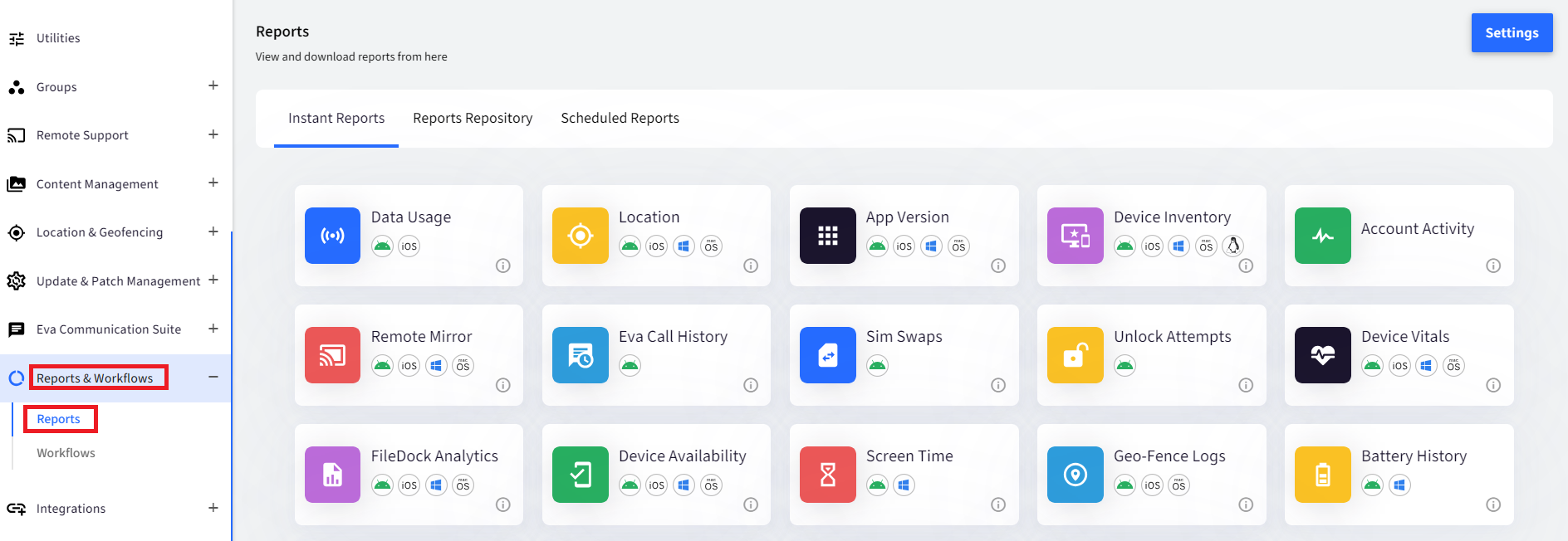

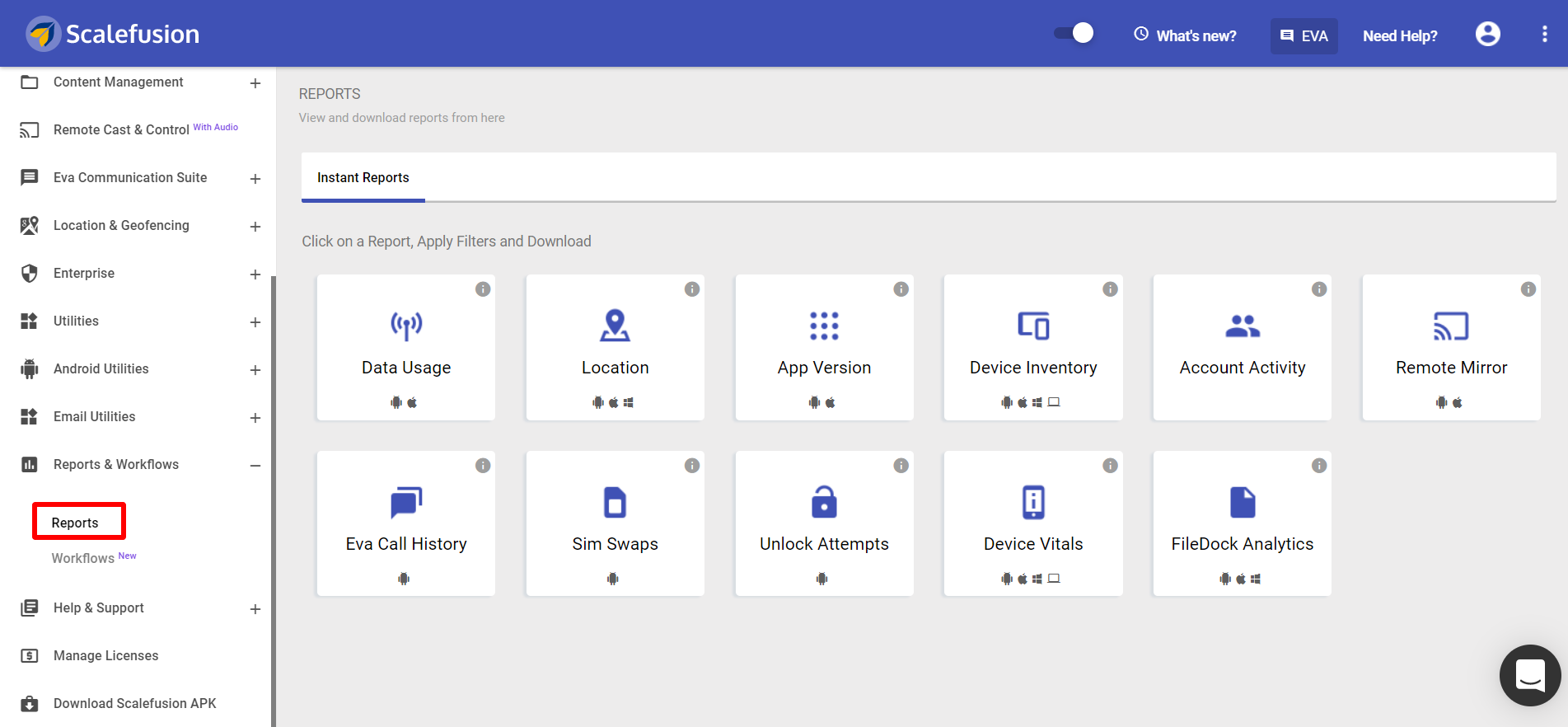

How to access

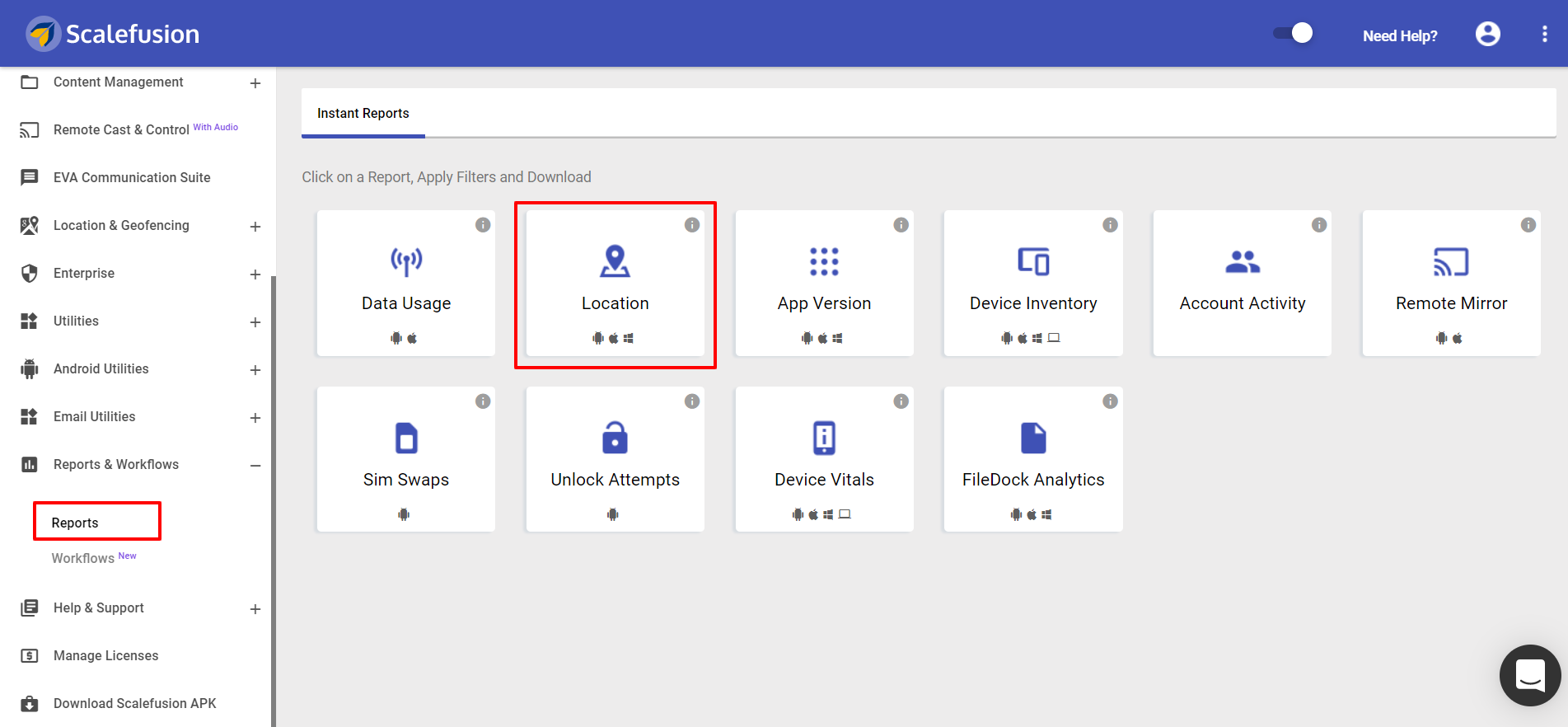

  1. Sign in to Scalefusion Dashboard
  2. Navigate to Reports & Workflows > Reports
  3. Click on the report name that has to be accessed

Who can access

The reports are tied up to the plan that a customer purchases and hence divided in three categories:

  1. Basic: All customers in Pro and Business plan. New Users are allocated Basic during the trial period
  2. Legacy: All customers in a non-Enterprise plan
  3. Advanced: All customers in Enterprise plan

Below is a description of all device reports.

Data Usage

Through Data usage report, user can get:

  • WiFi data Vs Mobile data usage for the selected device / device group
  • App wise data usage like which app consumed how much data

Platforms: Android, iOS

Category: Legacy or Advanced

Steps:

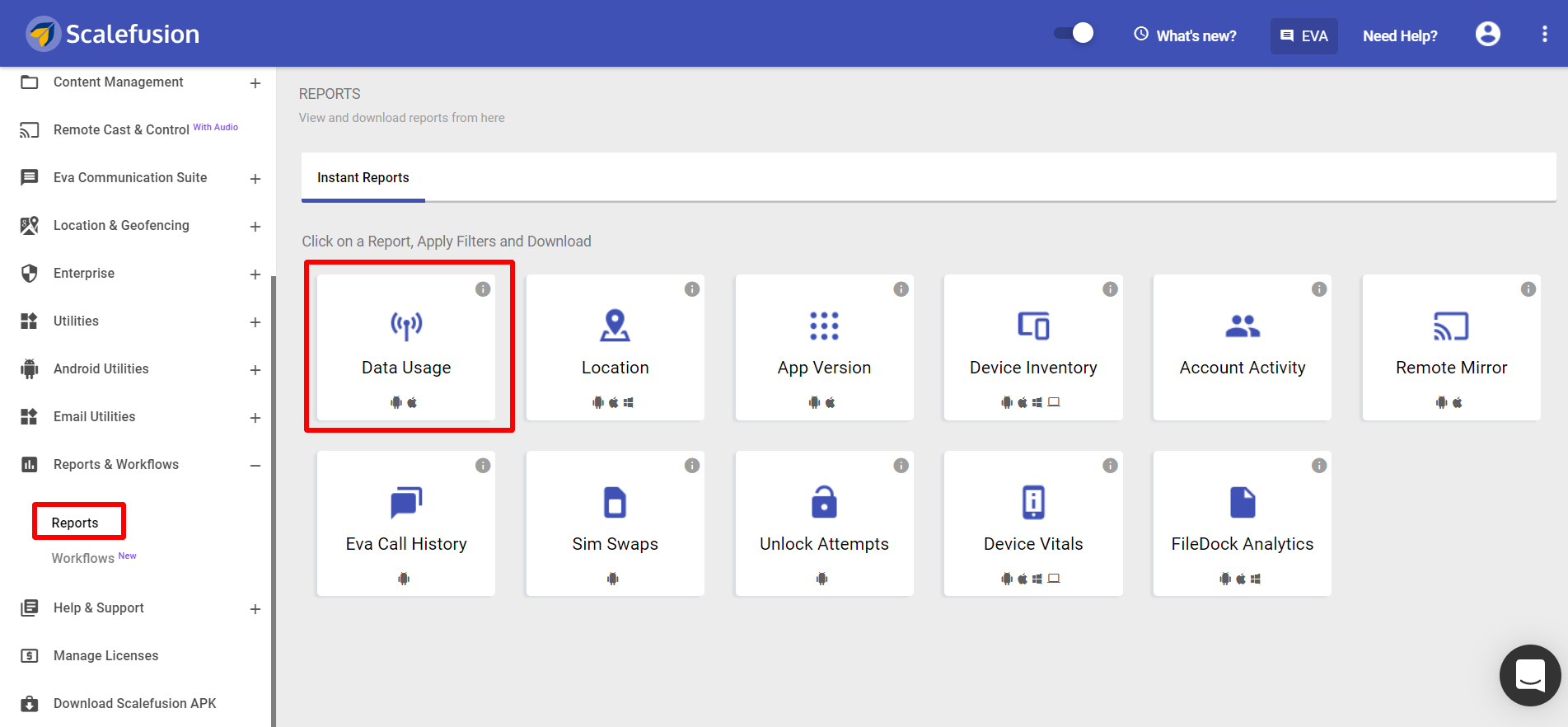

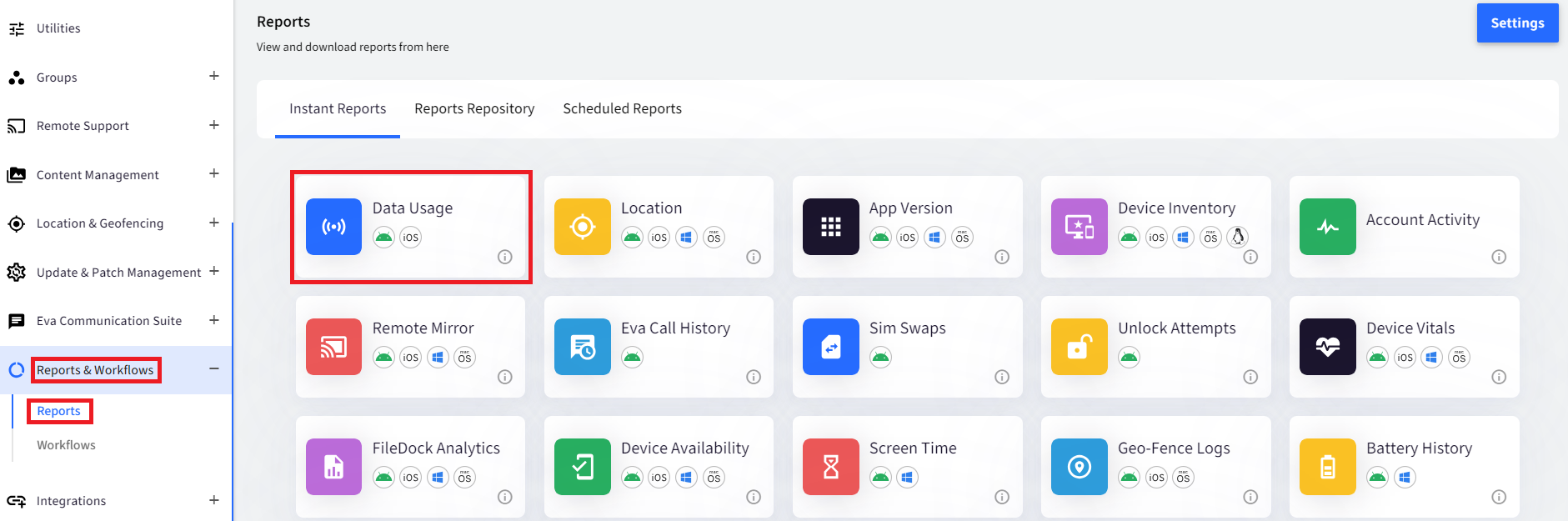

  1. Navigate to Reports & Workflows > Reports and click on Data Usage

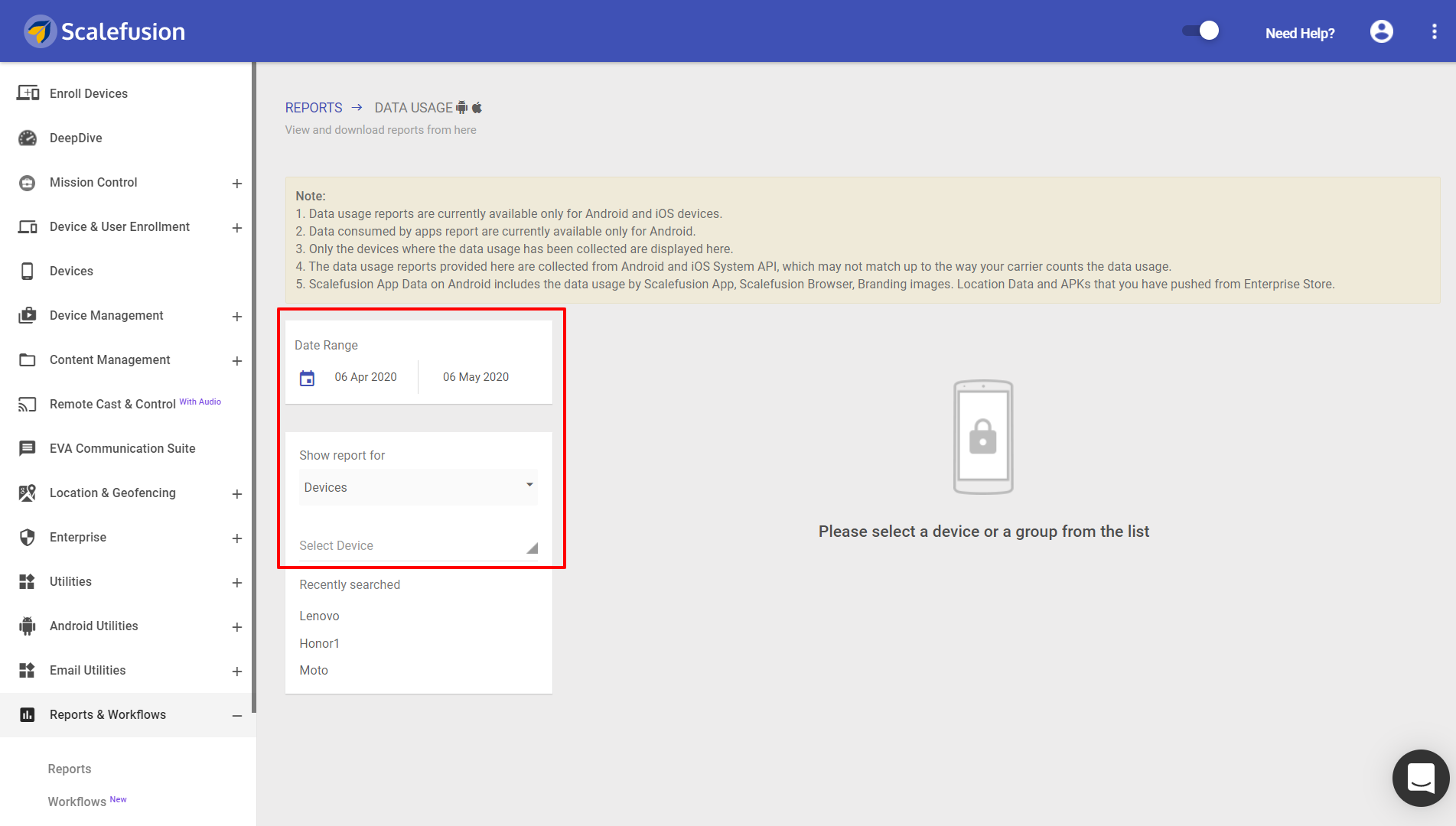

  2. Select Filters

Filter

Description

Date Range

Select the date range. By default you can generate one month's report where default is today's date

Show Report For

Two options here:

  • Device: Lets you select a particular device for which you want to check data usage
  • Device Group: Lets you select a device group and shows data consumed by devices under that device group

Report Output

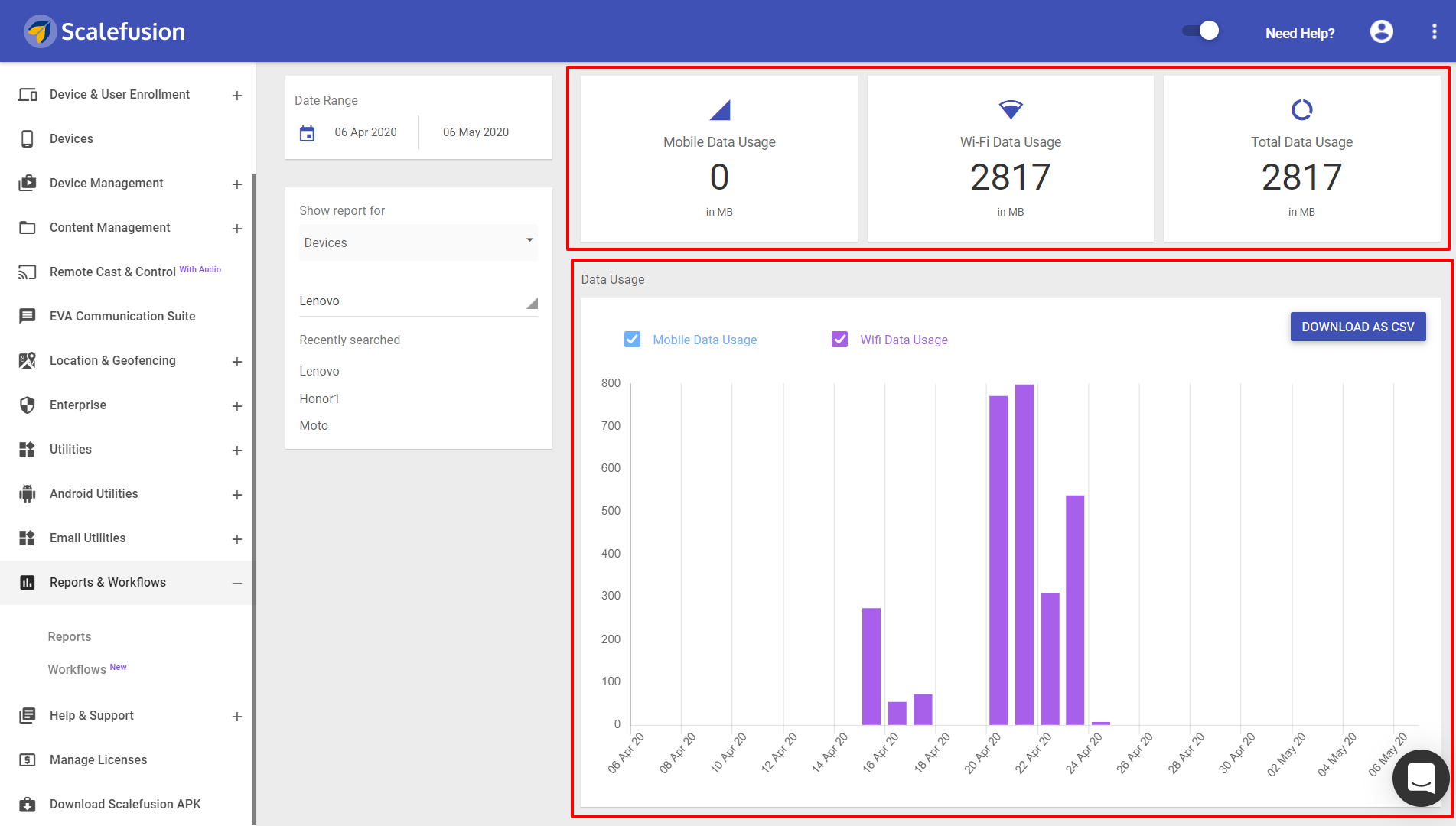

Show Report for Device

Once you select a device, the report will generate and show up. It gives following details:

  • Mobile Data Usage
  • Wi-Fi Data Usage
  • Total Data Usage
  • Graphical representation of Data Usage

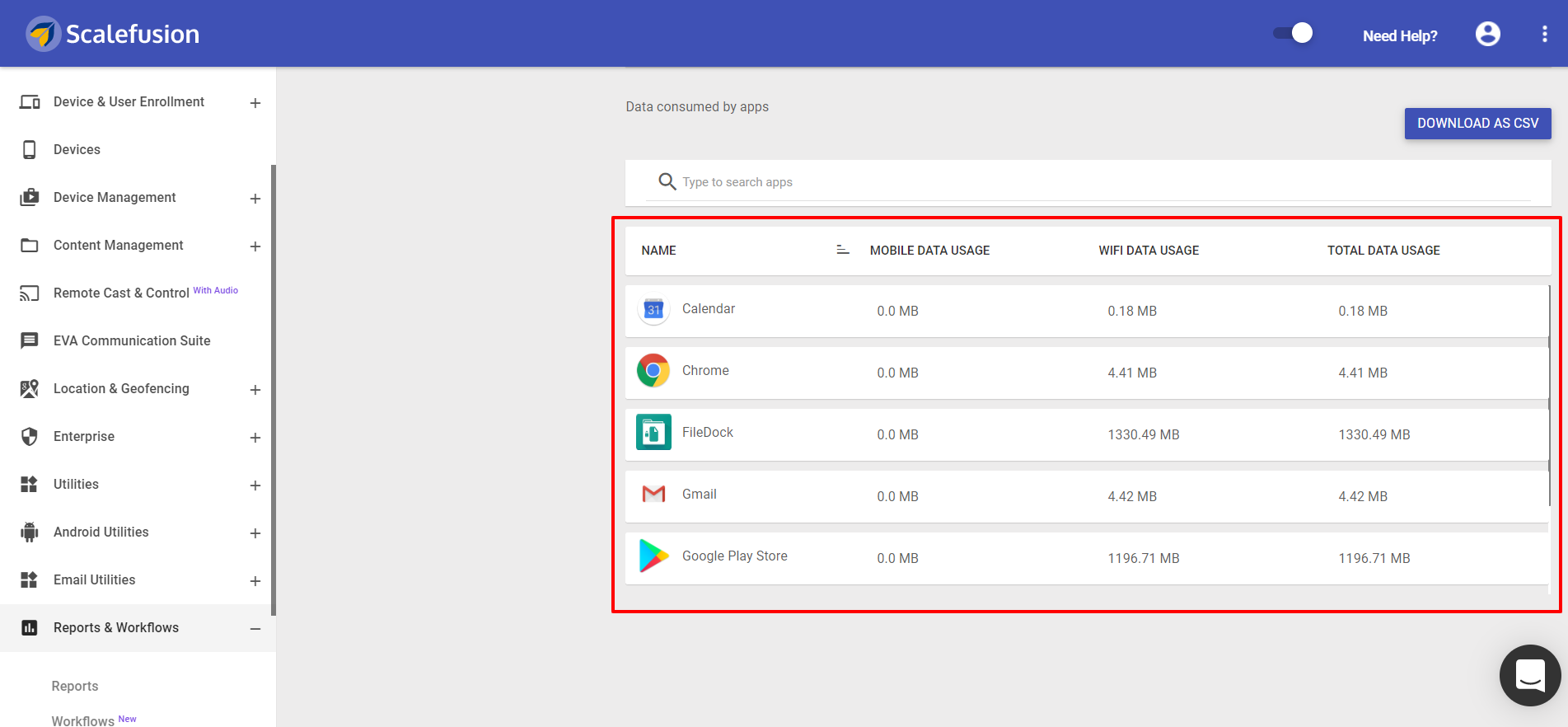

  • Data Consumed by apps

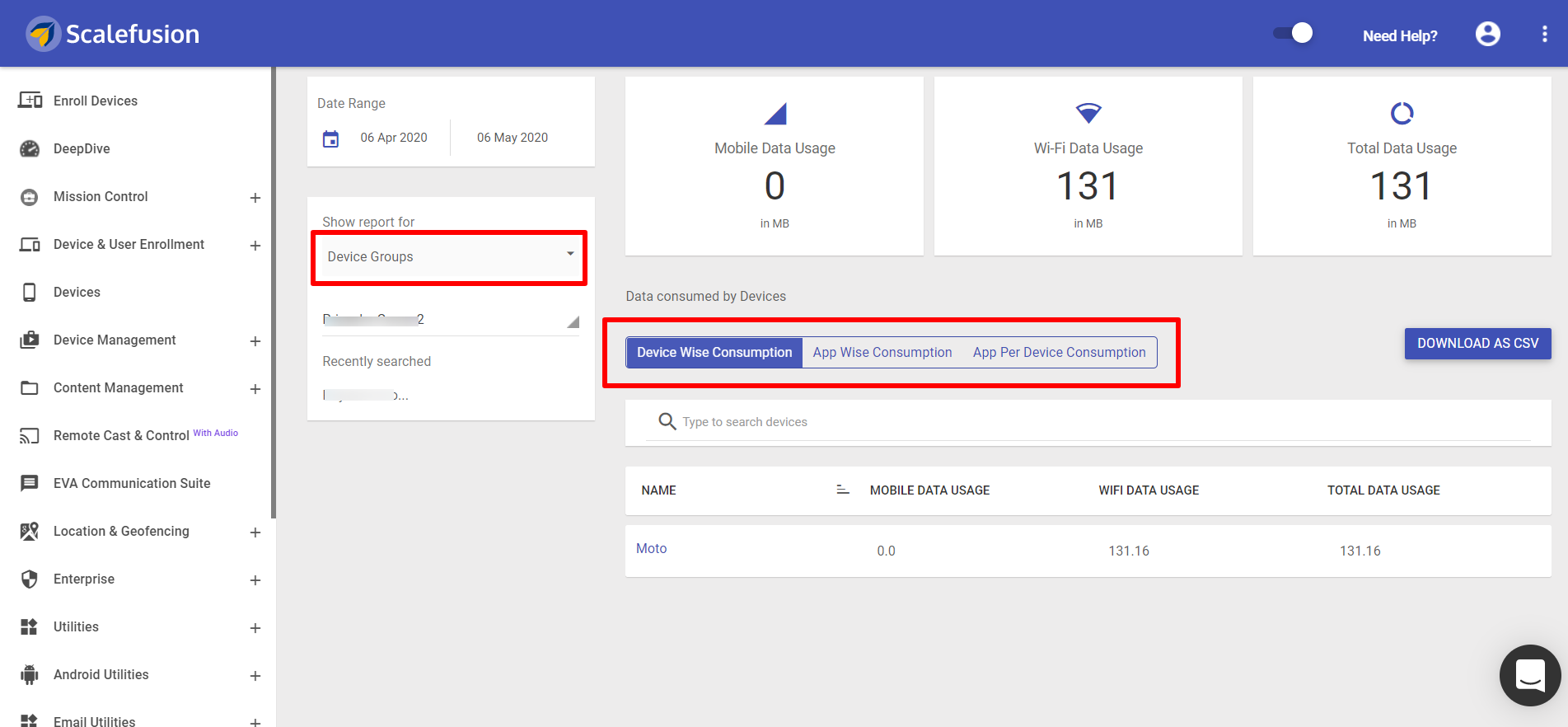

Show Report for Device Group

Selecting a group shows a tabulated list of all devices, with data usage in three different ways:

  • Device Wise Consumption - Lists devices with their mobile and wi-fi data usage that are part of that device group. Clicking on any device's name brings up graphical representation of data consumed.

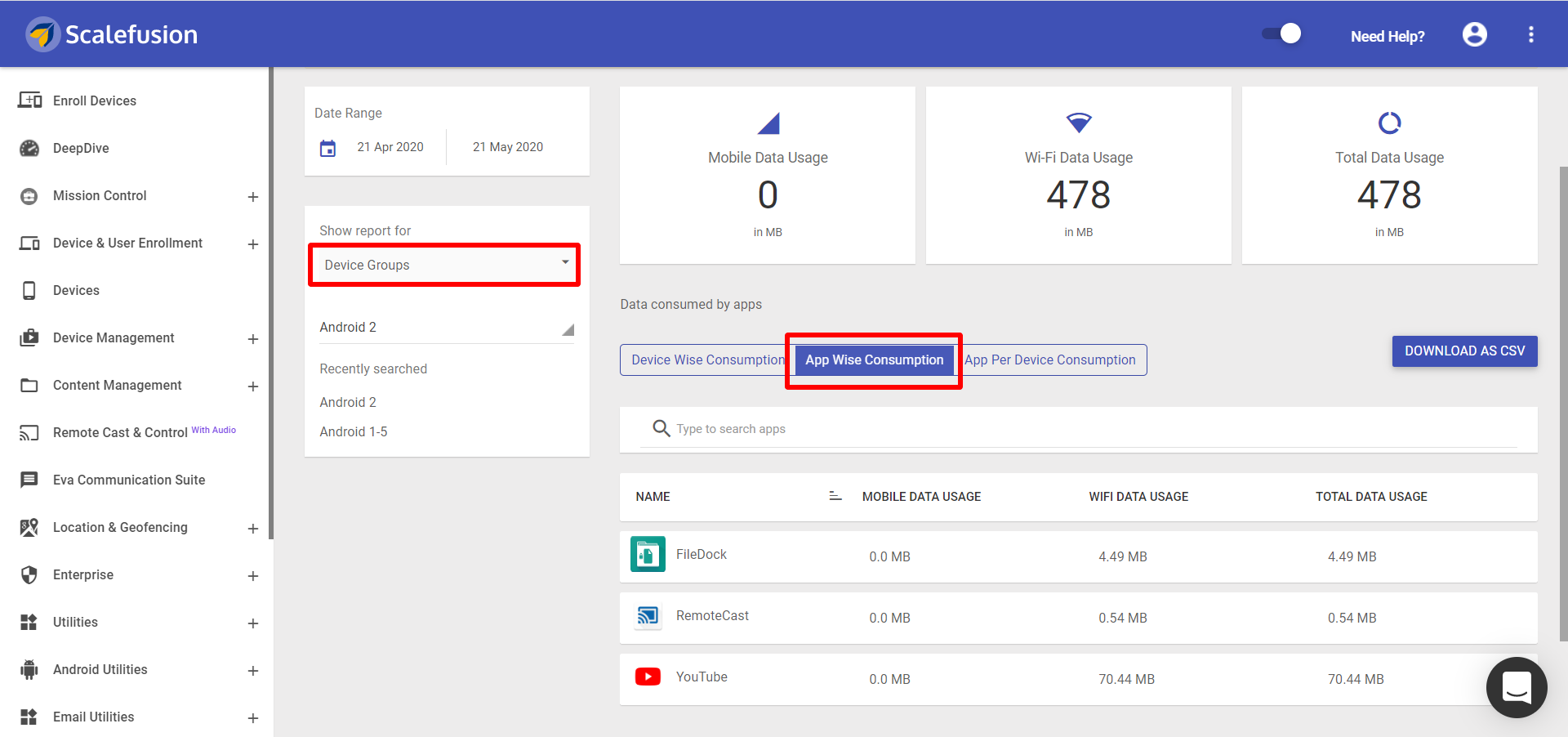

  • App Wise Consumption - Lists apps and corresponding data (mobile, wi-fi, total) consumed by each app

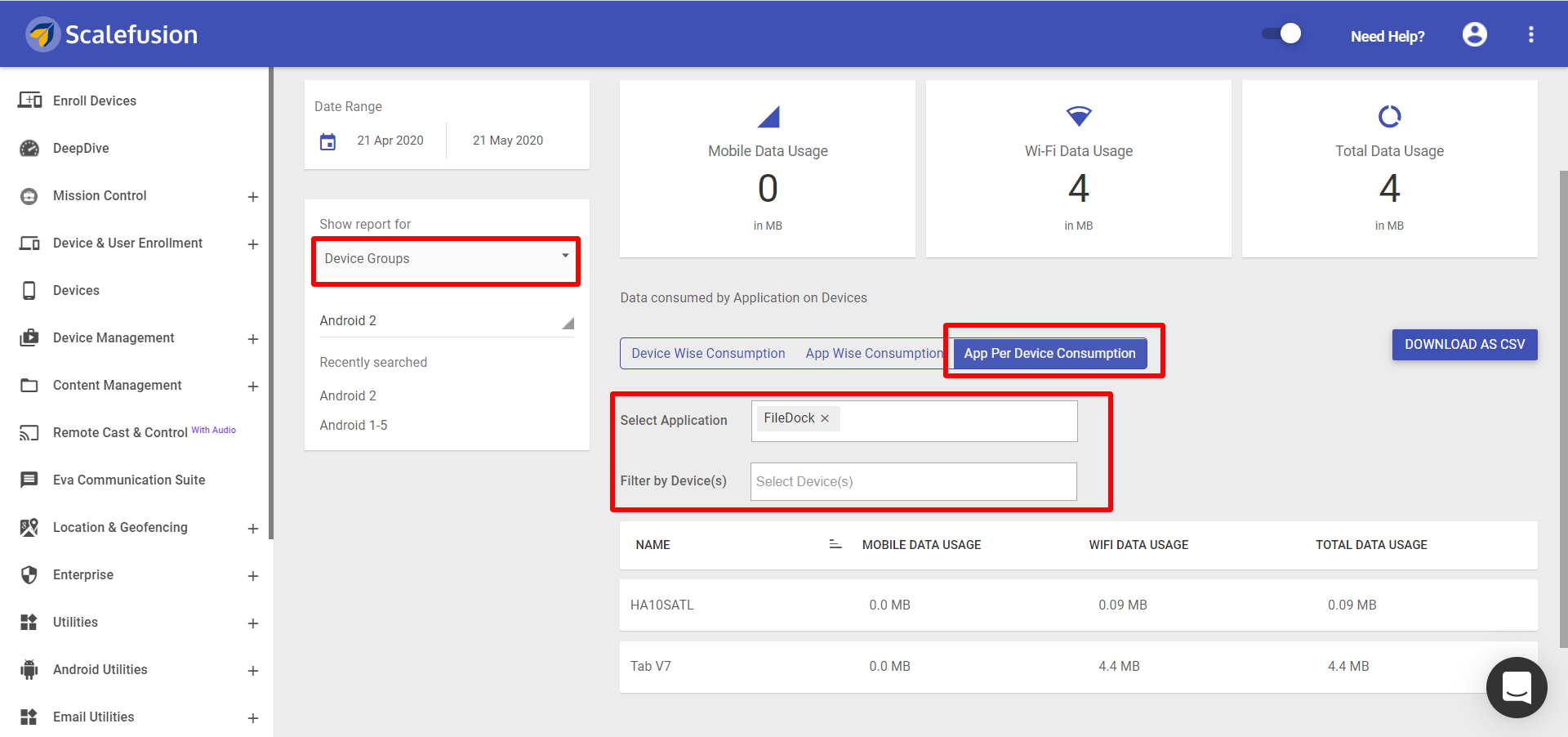

  • App Per Device Consumption - Shows data consumed by the selected app on each device. For this,
    • Select application - Select app from the list of applications. You can select more than one application
    • Filter by Device(s) - You can also filter and see data usage of the selected app on a particular device

Additional Features

  1. Download - The reports can be downloaded in CSV format through Download as CSV button
  2. Search - Use search feature to search for a particular device or app from the results
  3. The graph can be filtered by checking / unchecking Mobile Data Usage and Wi-fi usage options
  4. Hovering over any bar on the graph shows mobile and wifi data usage figures separately

App Version

The app version report shows app version of all the apps installed on the selected devices. With app version report, users can see which device has which version of app(s) installed so that they can better manage their app deployment.

Platforms: Android, iOS, Windows

Category: Legacy or Basic or Advanced

Steps:

  1. Navigate to Reports & Workflows > Reports and click on App Version
  2. Select Filter

Filter

Description

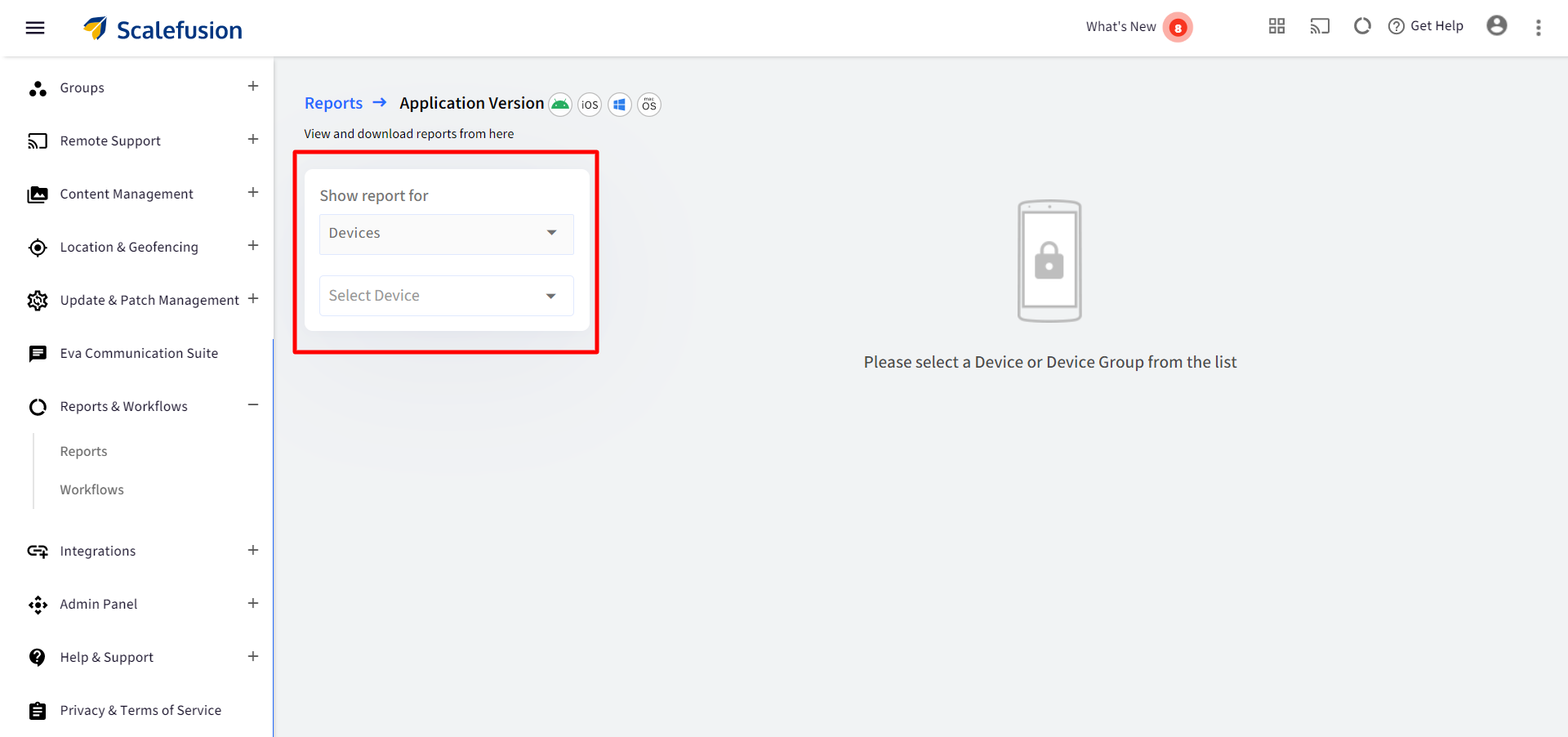

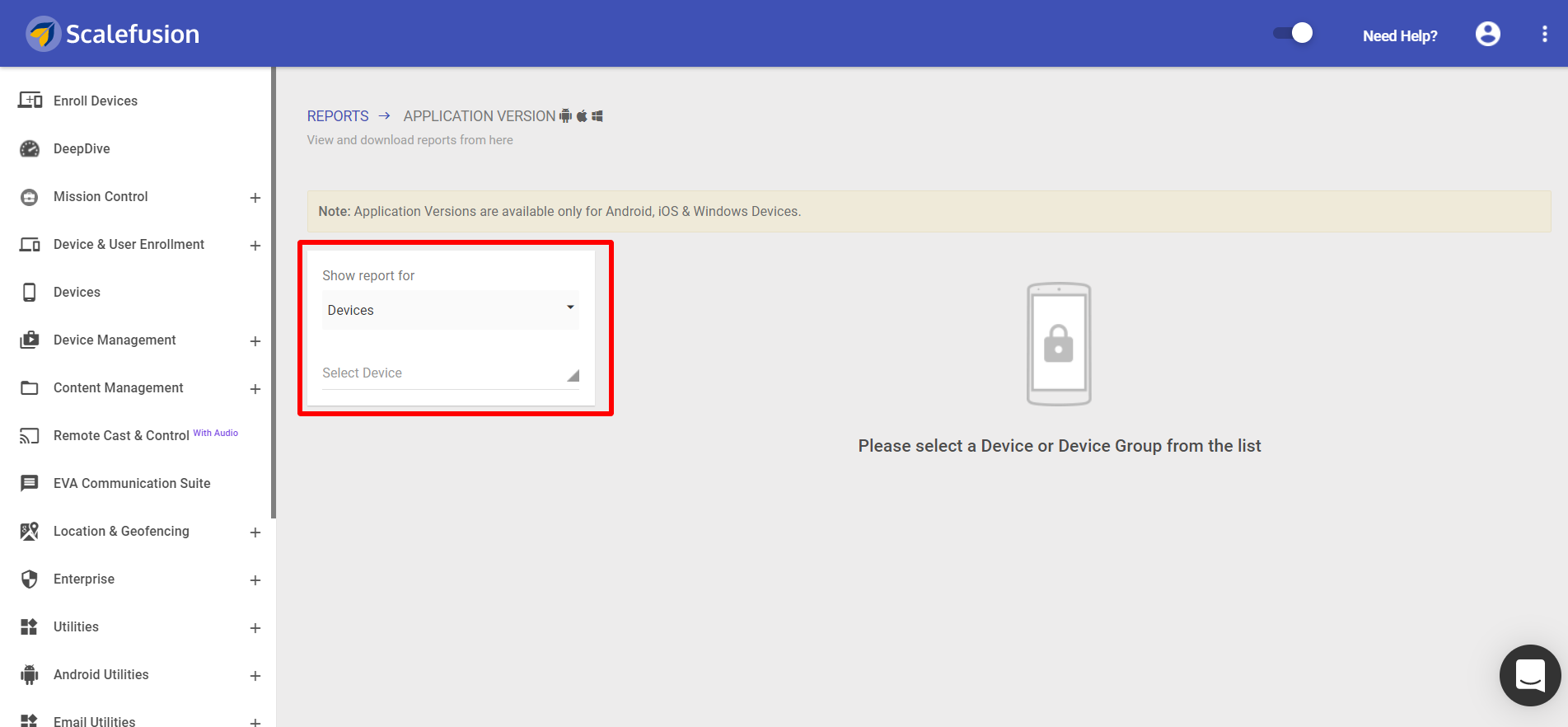

Show Report For

Select any one from the drop-down:

  • Devices: Lets you select a particular device on which you want to see the app versions. Only those devices where applications are installed/published are listed here.
  • Device Groups: Lets you select a device group and shows app versions of all the devices in that group. The group(s) which have at least one device with applications published/installed are listed here.
  • Device Profiles: Lets admin filter data based on Profile to get the application version details of apps published on selected device profile.

Report Output

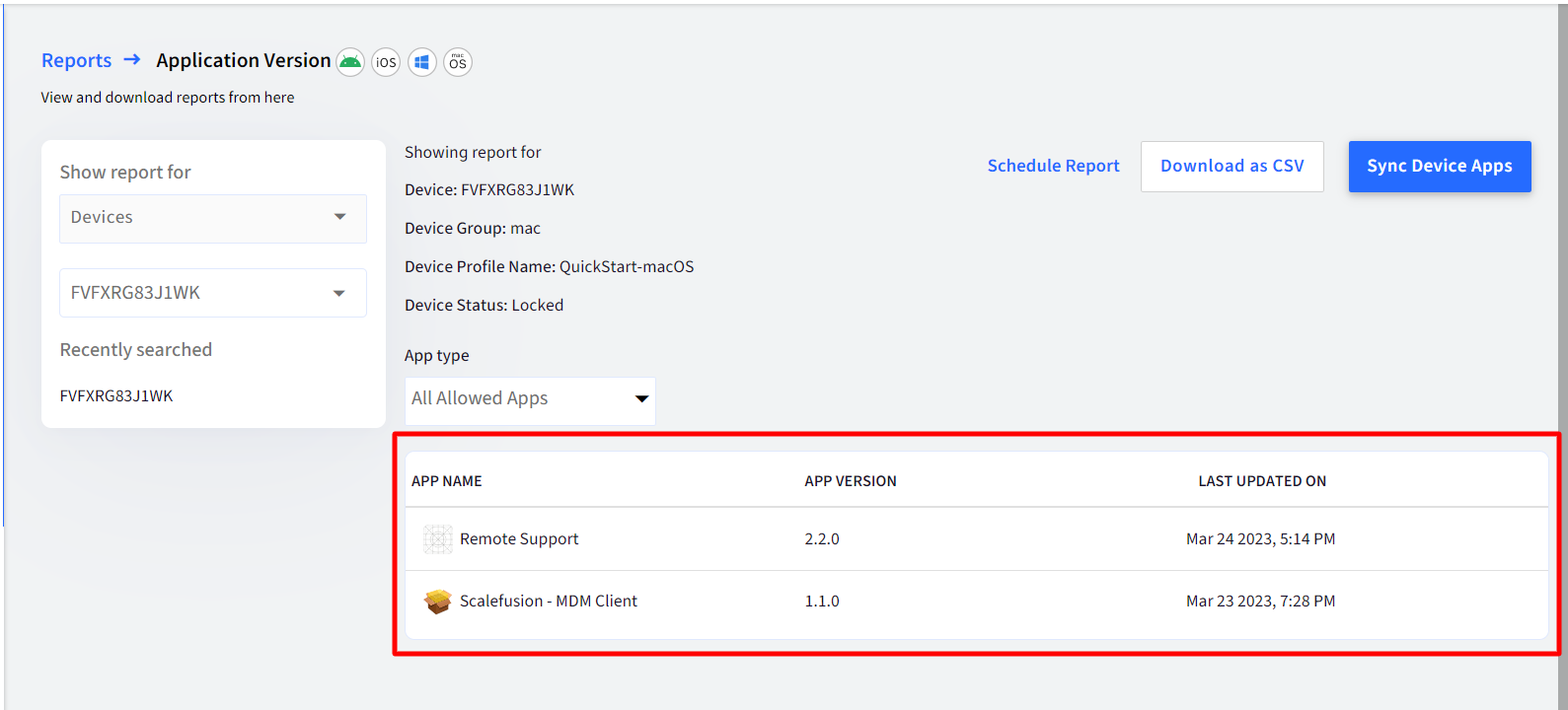

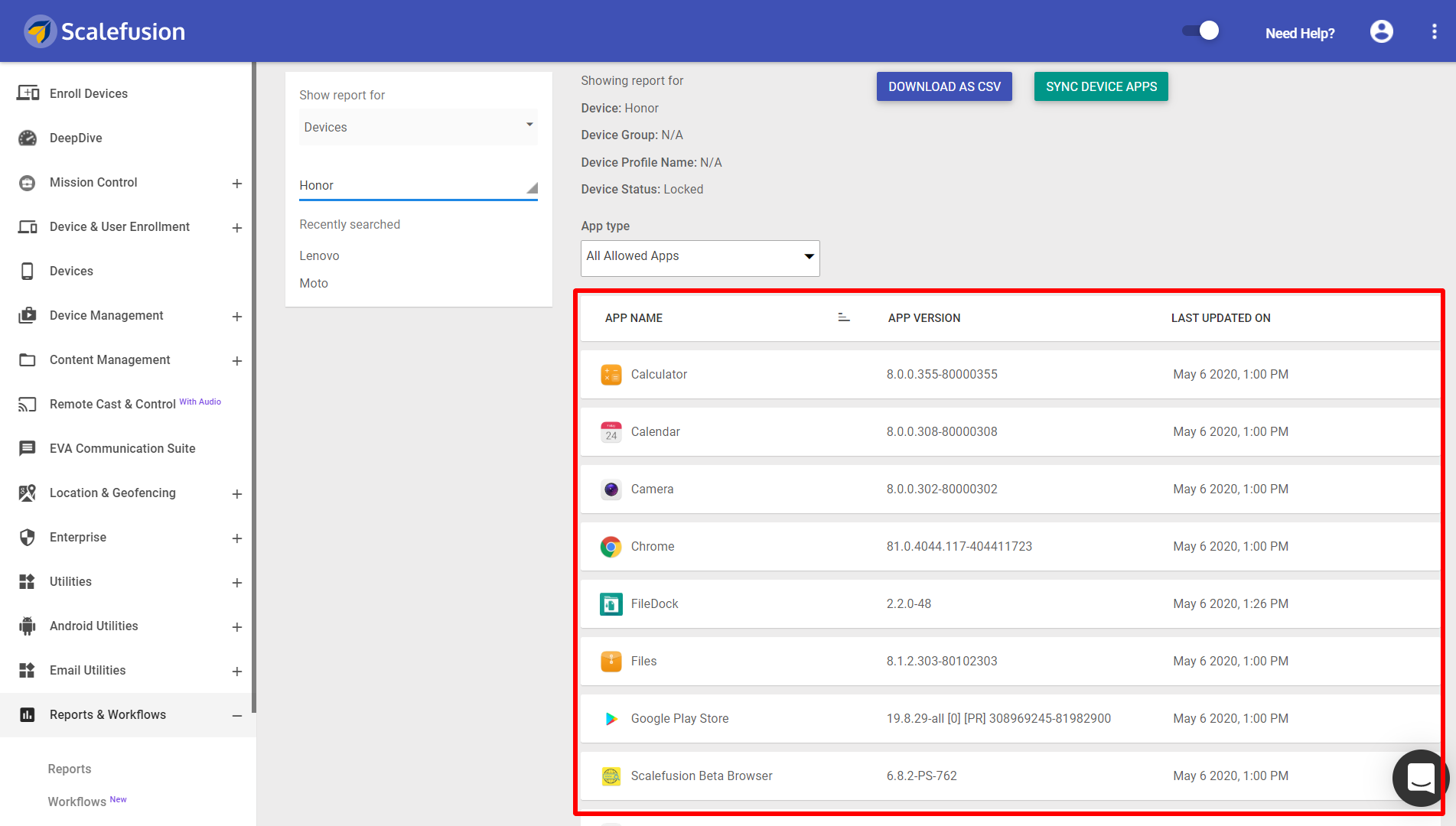

Show Report for Devices

Once you select a Device, all app details are generated in tabular form. Following details are available:

  • App Name
  • App Version
  • Last Updated On

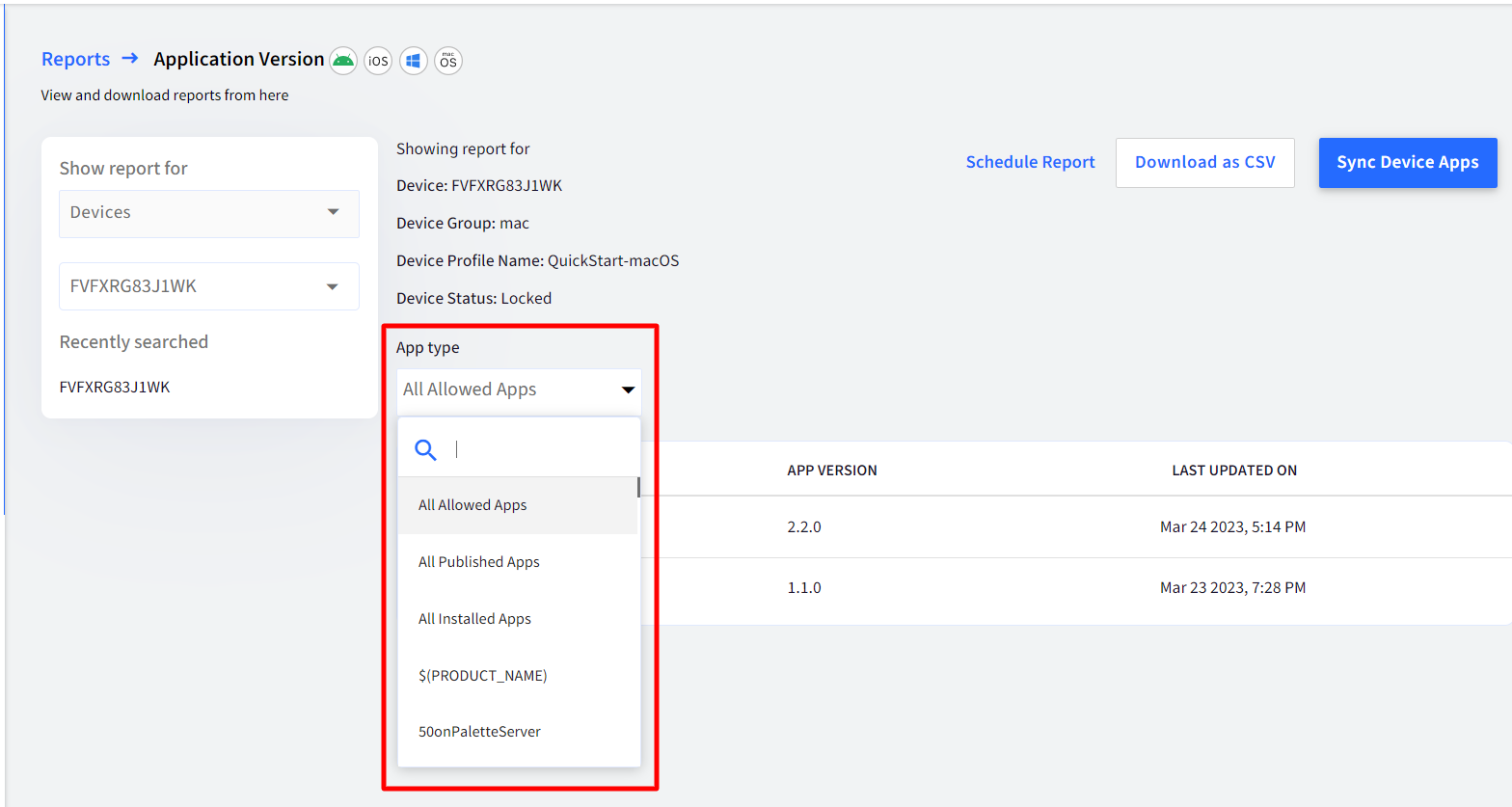

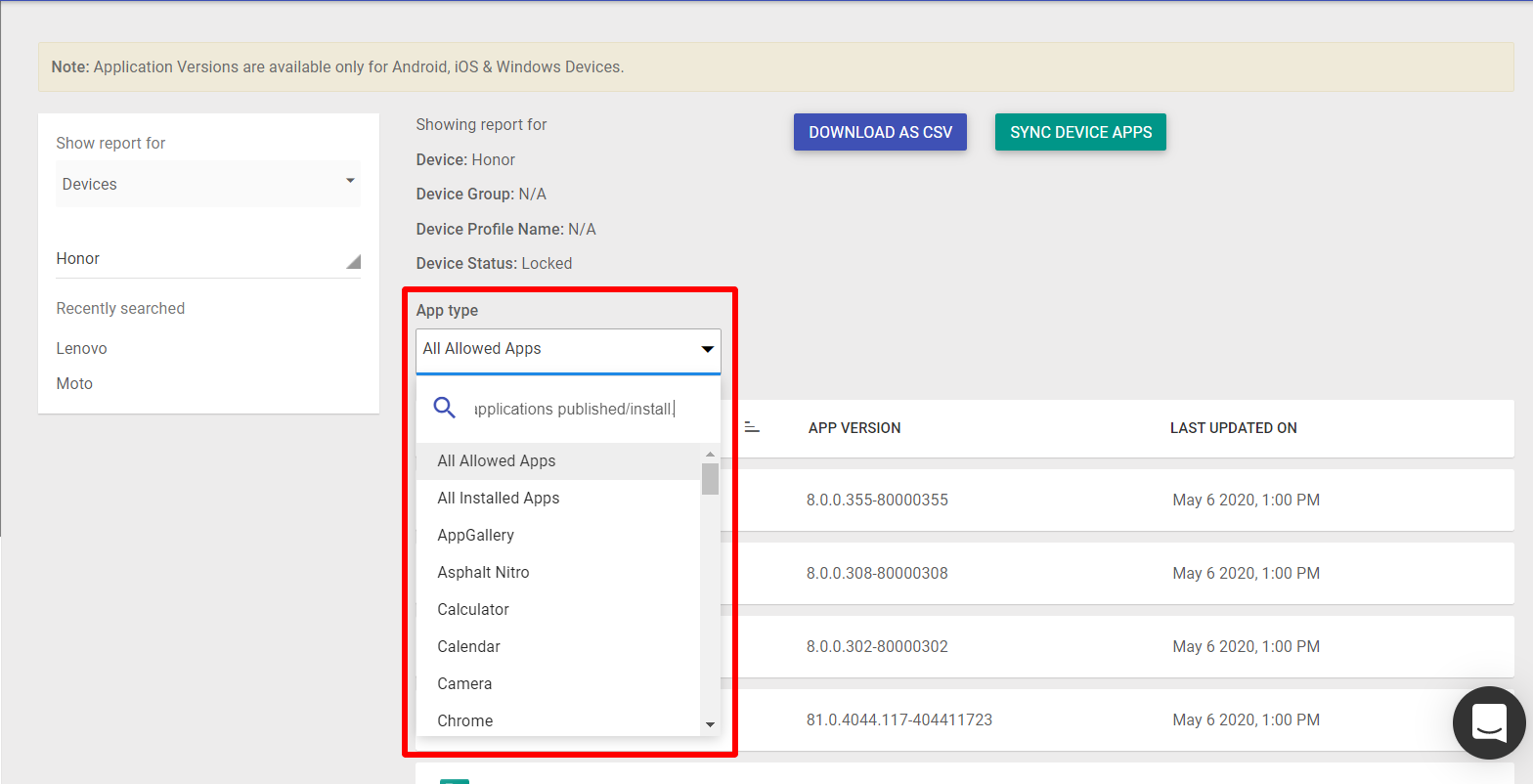

You can also check the version of any specific app, by selecting the app from the App type drop-down. Here the apps can also be filtered on the basis of following:

  • All Allowed Apps - Lists the apps allowed as per list curated from Device Profile > allowed apps.
  • All Published Apps - Lists published apps, that is, apps which are published but not yet installed on the device.
  • All Installed Apps - Lists apps installed on the device.

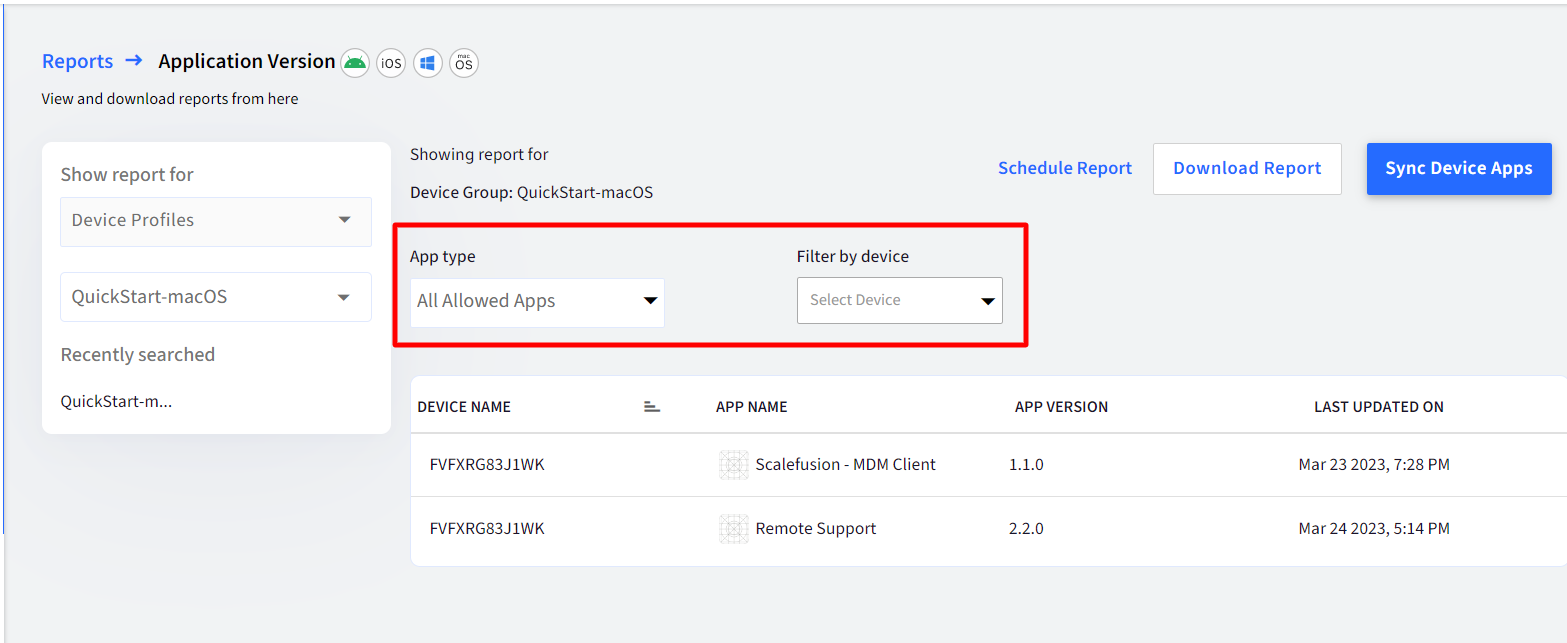

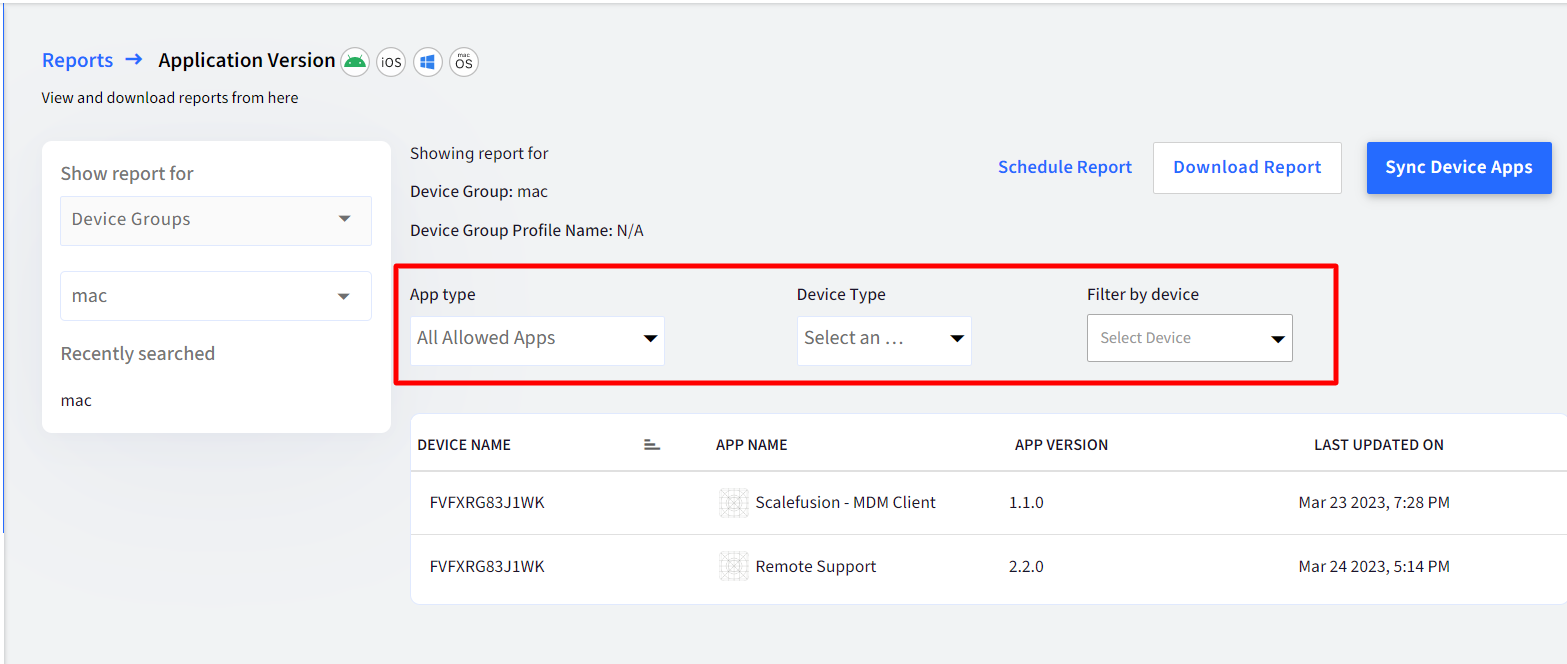

Show Report for Device Groups

Selecting a group shows a tabulated list of all devices, with corresponding apps and their versions. These can also be filtered by:

  1. App type - Select app from the list of applications.
  2. Device type - Lists OS types viz., Android, iOS, Windows. Select an OS type and it filters and shows application version details as per selected OS.
  3. Filter by Device - Lists all the devices of the device group. Select a device and see the app version of the apps installed on it.

Additional Features

  1. Download - The report can be downloaded in CSV format from 'Download as CSV' button
  2. Sync Device Apps - Syncs app versions with the device

Device Inventory

The device inventory report provides details of all the managed devices in the organisation. The Admins choose the inventory details that they want and then download a report.

Platforms: Android, iOS, Windows, Mac

Category: Legacy or Basic or Advanced

Steps:

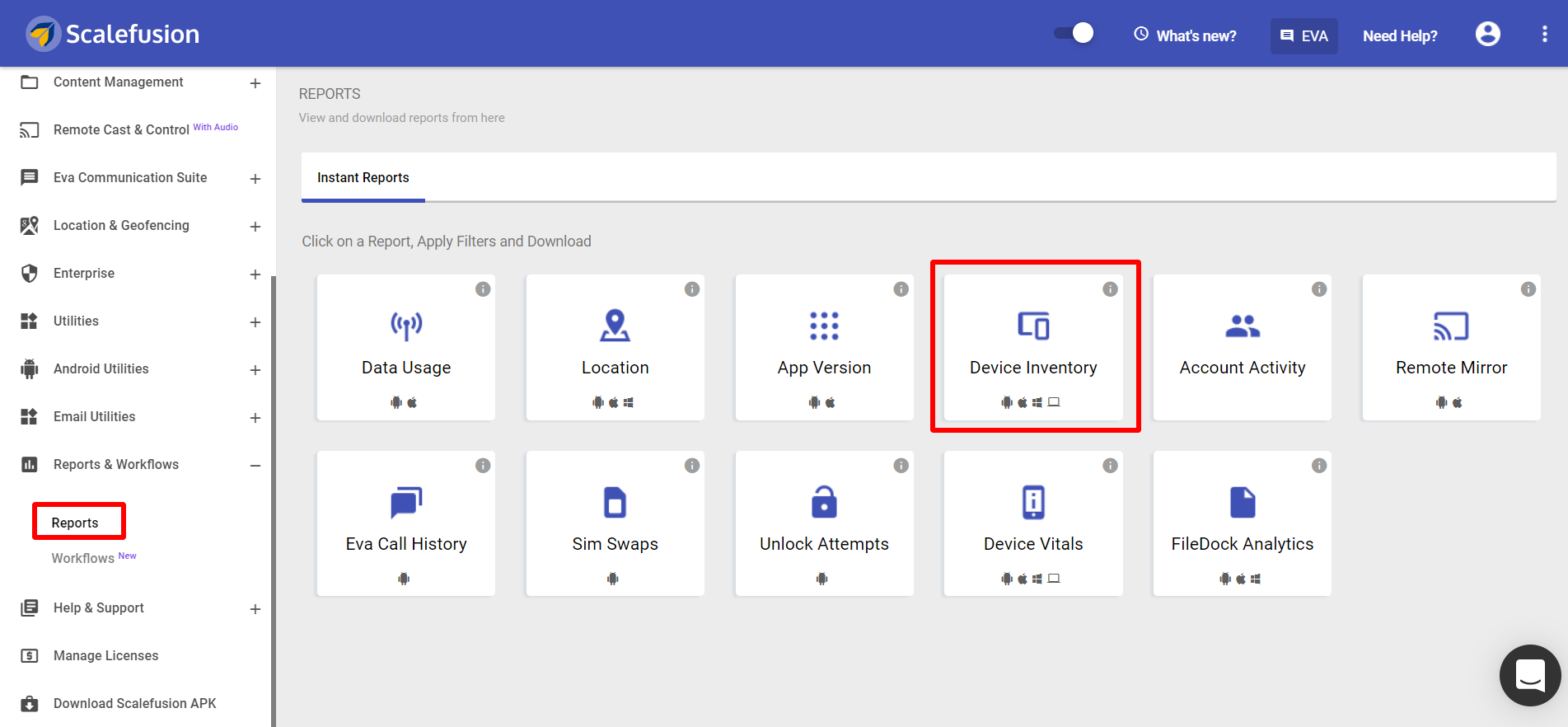

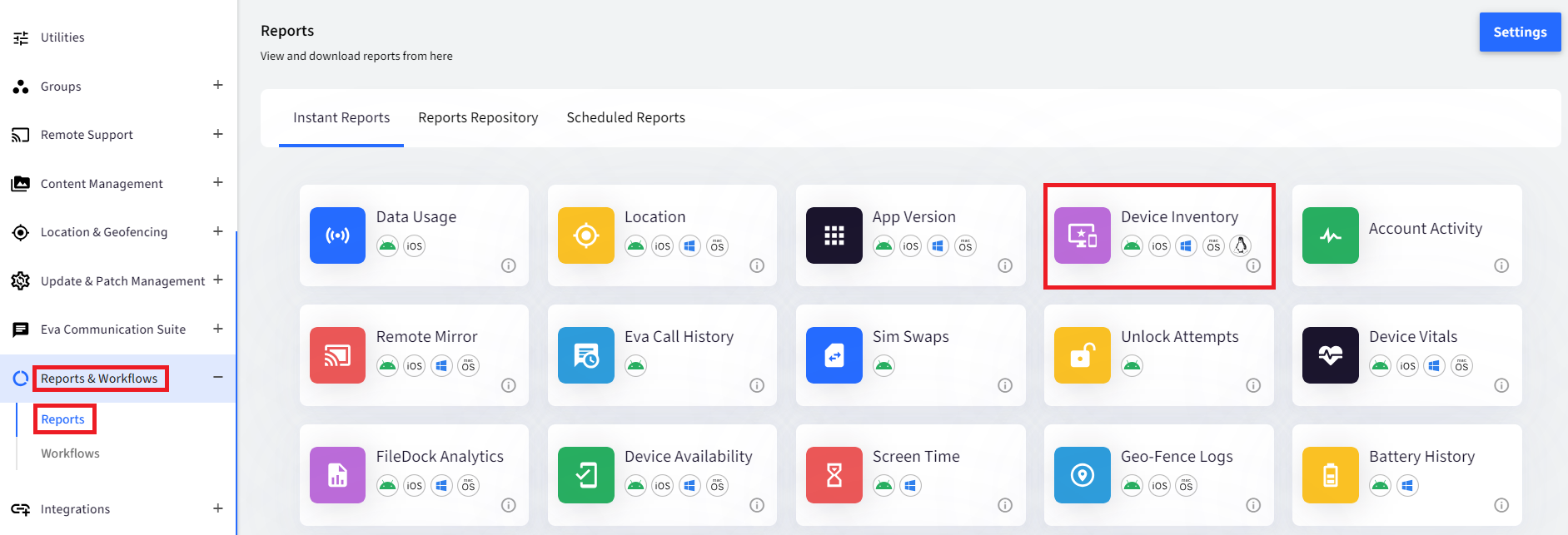

  1. Navigate to Reports & Workflows > Reports and click on Device Inventory

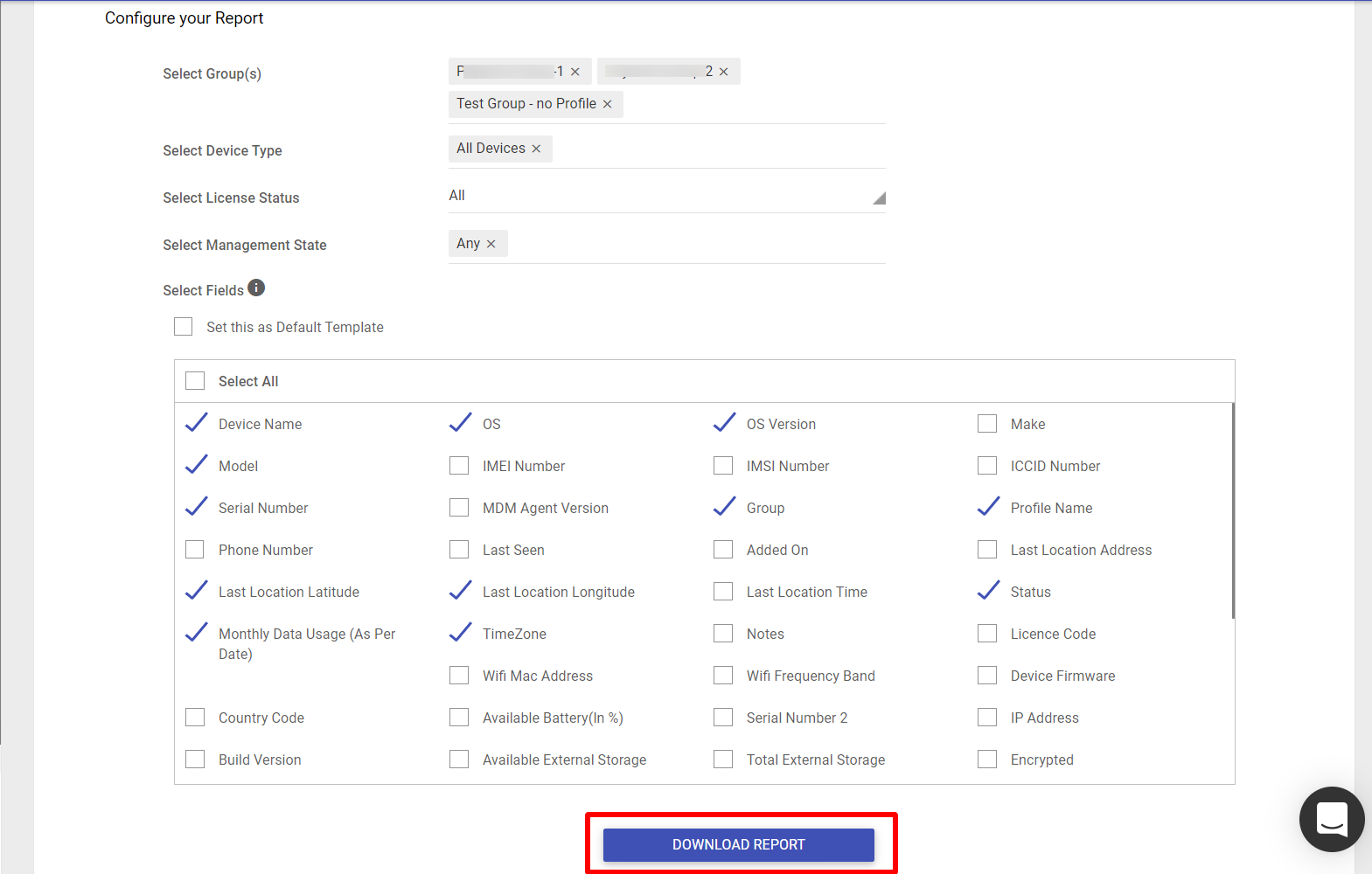

  2. Select Filters to configure your report

Filter

Description

Select Group(s)

Lists all Device Groups and Sub-Groups. More than one group can be selected.

Select Device Type

Lists all OS types. More than one OS can be selected.

  • Android
  • iOS
  • Windows
  • Mac

Select License Status

Select Device's License status from the following:

  • Licensed
  • Unlicensed

Select Management State

Lists Device's Status. Multiple status can be selected

  • Any
  • Locked/Managed
  • Unlocked/Unmanaged
  • Inactive
  • EMM Managed
  • Non EMM Managed

Select Fields

Lists all custom and compulsory fields. Check the fields you require in the report. Following are mandatory and pre-selected:

  • Device Name
  • OS
  • OS Version

  1. Once field selections are done, click on Download Report. The report will be downloaded in CSV format containing fields as configured by the user.
Not all of the fields will be applicable to all the OS types. In such cases the reports would have empty or N/A value.

Additional Features

  1. Set this as Default template - The selected combination of fields can be set as default for this user account admin.

Unlock Attempts

The Unlock Attempts report provides information about the event of failed unlocks for the selected device/device group. If a user tries to exit Scalefusion (unlock) from the device by entering wrong Exit passcode more than 3 consecutive times, the report captures and shows this information.

Platforms: Android

Category: Legacy or Basic or Advanced

Steps:

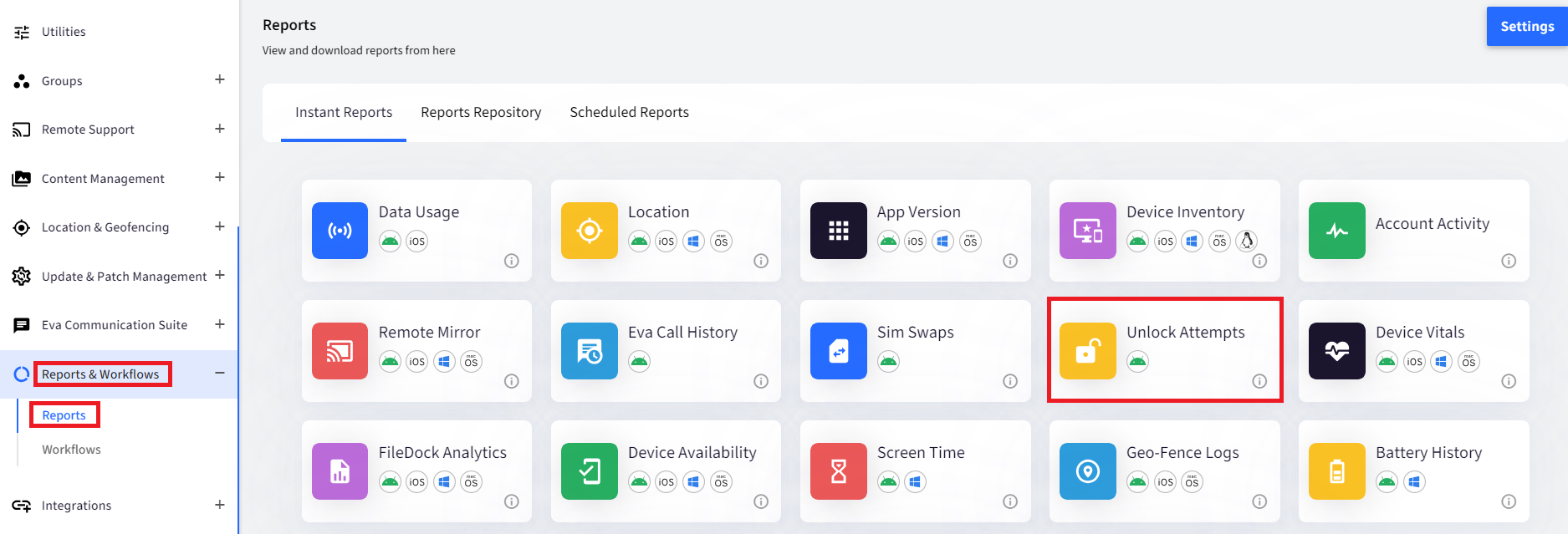

  1. Navigate to Reports & Workflows > Reports and click on Unlock Attempts
  2. Select Filters

Filter

Description

Date Range

Select the date range for which report has to be generated. By default one month's date range is pre-selected

Show Report For

Select any one from the drop-down:

  • Devices: Lets you select a particular device on which you want to check failed unlock attempts.
  • Device Groups: Lets you select a device group and shows failed unlock attempts of all the devices in that group.

Report Output

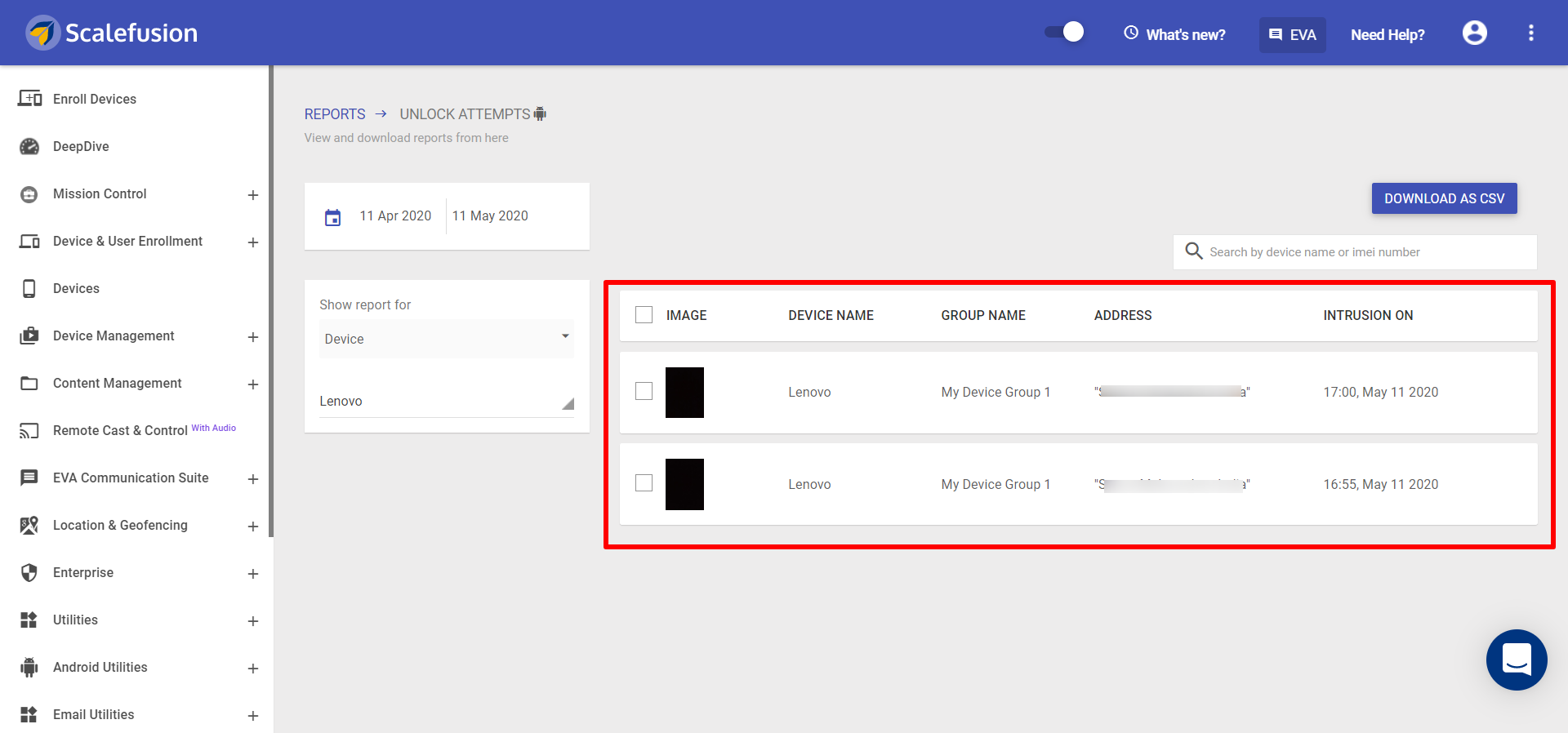

Show Report for Devices

Once you select a Device, all details are generated in tabular form:

  • Image: Image of the user who was trying to unlock device
  • Device Name: Device Name, selected in filter
  • Group Name: Corresponding Device Group name
  • Address: The address of the place where unlock attempt has taken place
  • Intrusion On: Date and time of the incident


Clicking on image shows enlarged view along with map view of location and other details of the incident.

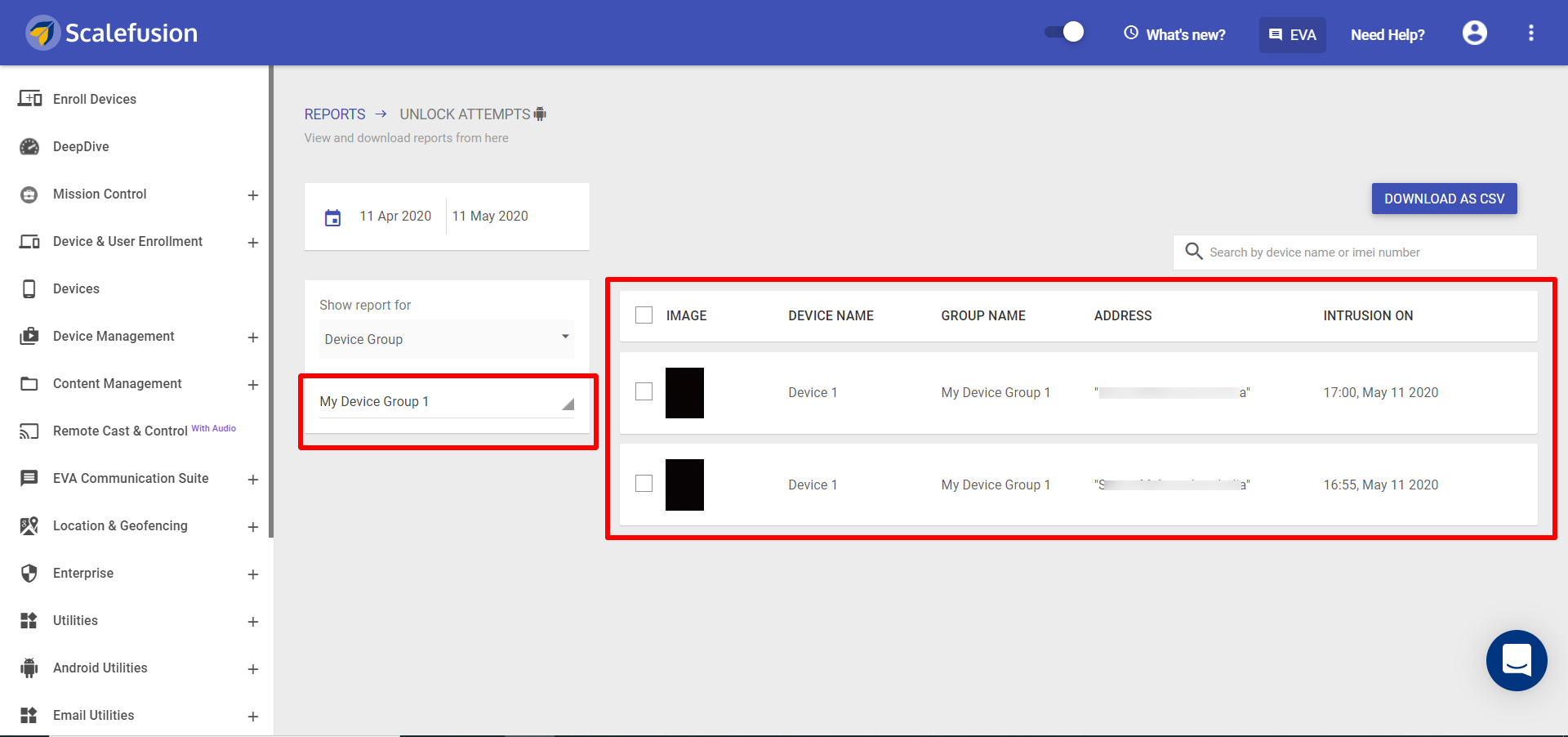

Show Report for Device Groups

Selecting a group shows a tabulated list of all device groups, with corresponding devices and other details of failed unlock attempts

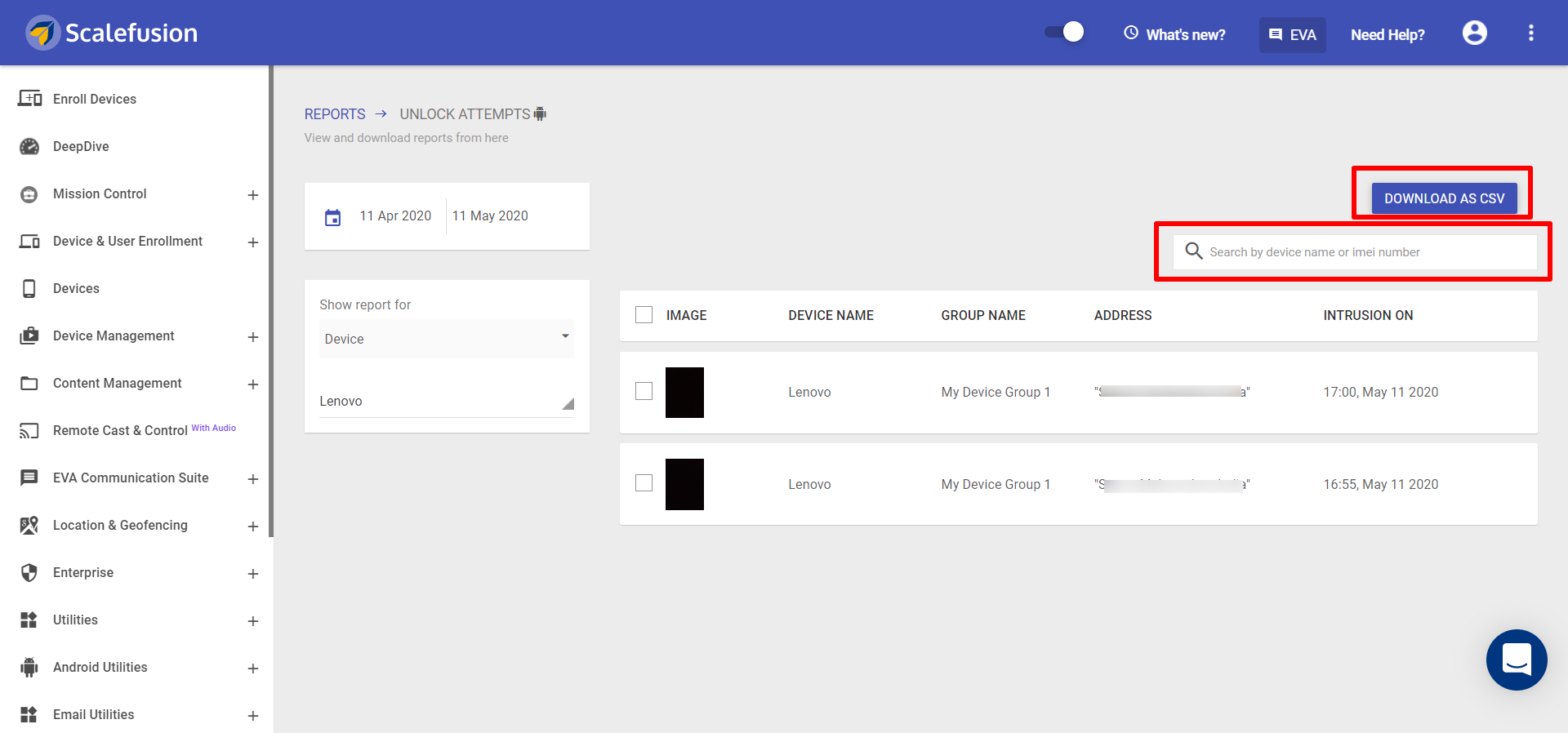

Additional Features

  1. Download - The report can be downloaded in CSV format from 'Download as CSV' button
  2. Search - Search by device name or imei number can be performed, to search for a particular record or set of records in the report

Device Vitals

Device Vitals provides all the important information related to your managed devices. The Admins choose the filters based on their requirements and then download report.

Platforms: Android, iOS, Windows, Mac

Category: Advanced

Steps:

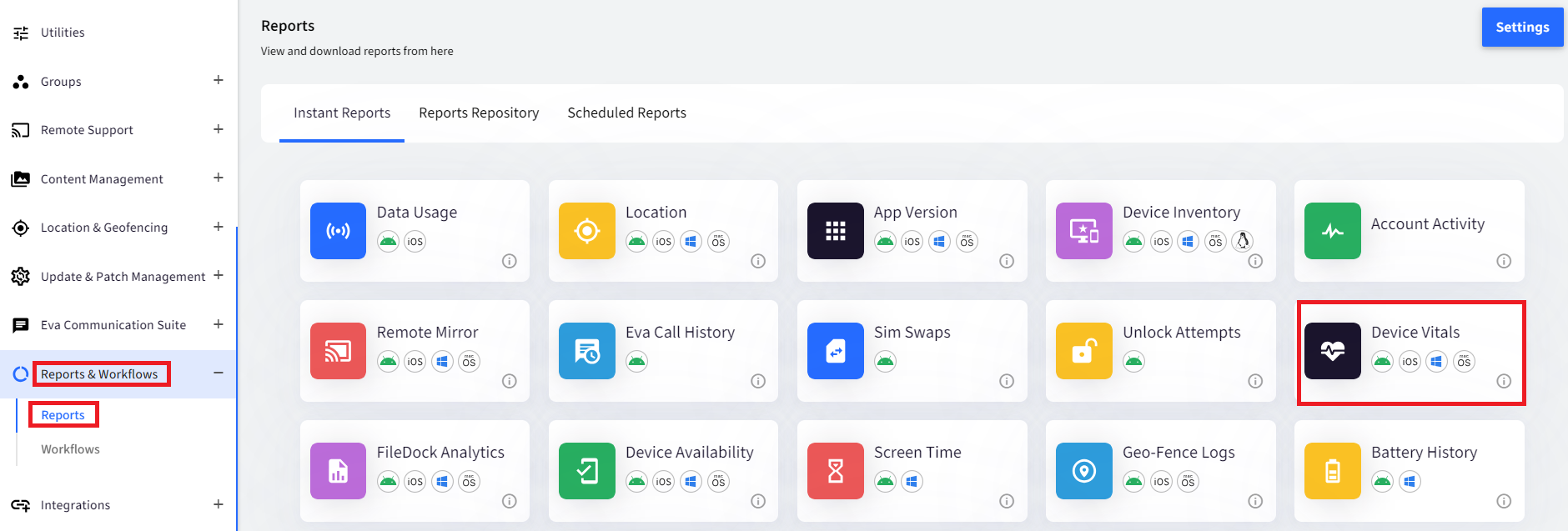

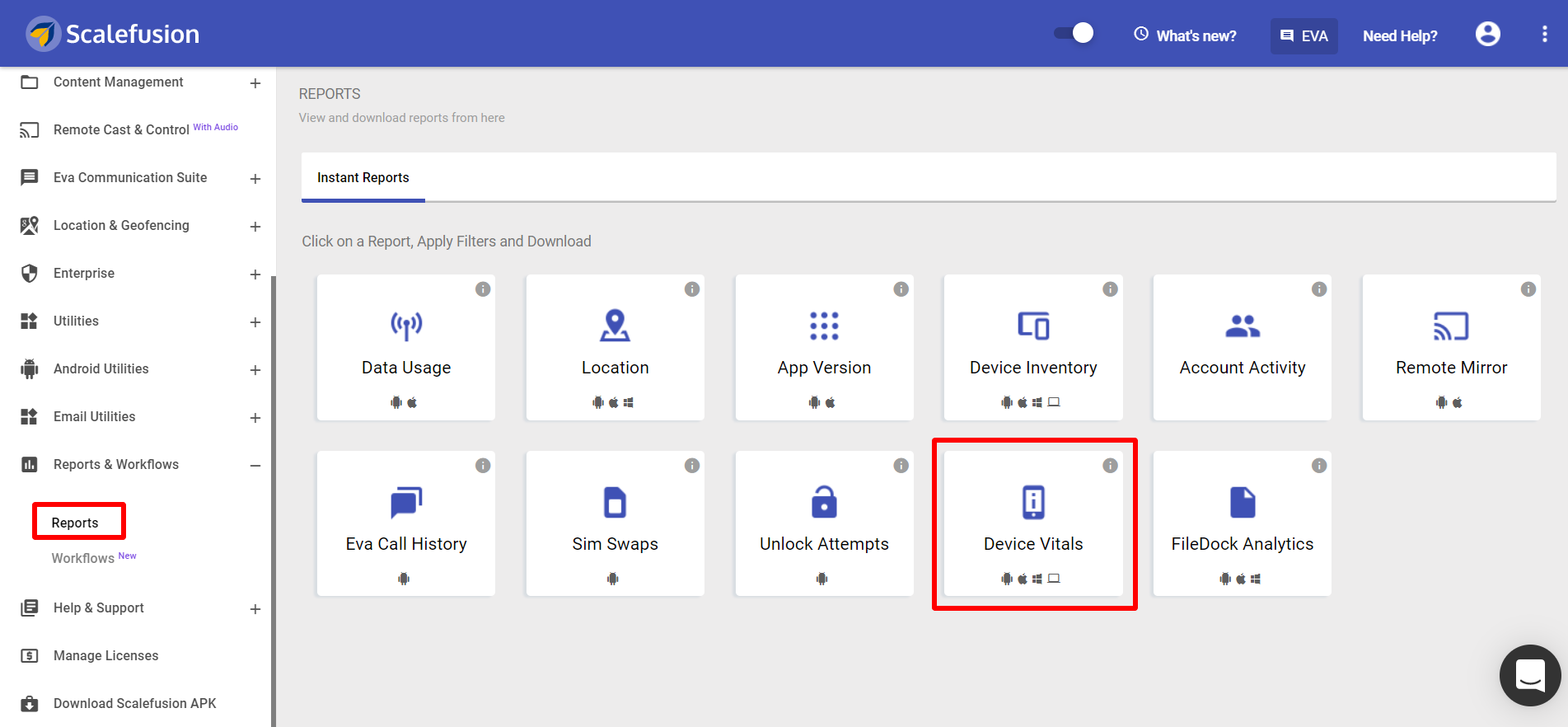

  1. Navigate to Reports & Workflows > Reports and click on Device Vitals
  2. Select Filters to configure your report

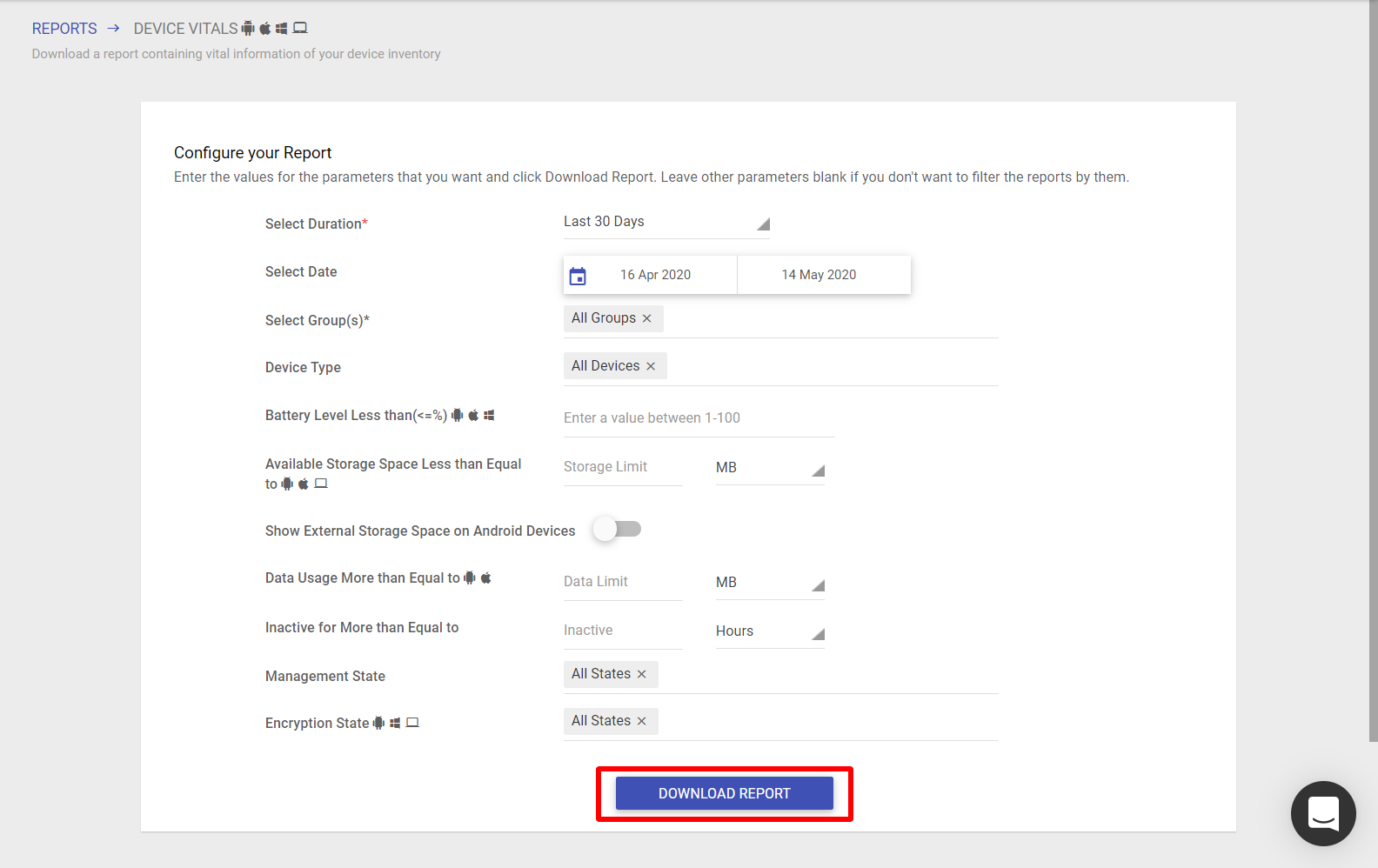

Filter

Description

Select Duration

The report can be generated for:

  • Today: Current Date (This is selected by default)
  • Yesterday: Previous day to the current date
  • Last Week: Week is calculated from Monday to Sunday
  • Last 30 Days: Previous one month starting from today's date
  • Current Month: Starting from 1st of the current month till current date
  • Custom Dates: Choose the dates as per requirement. By default, three months date range is pre-selected

Select Date

Based on the selection above (in Select Duration), the Select Date field populates the dates

Select Group(s)

Lists all Device Groups and Sub-Groups. More than one group can be selected. If you want a report on all groups, select 'All Groups' which is selected by default.

Device Type

Lists all OS types. More than one OS can be selected.

  • Android
  • iOS
  • Windows
  • Mac

By default 'All Devices' is selected

Battery Level Less than(<=%)

Lets Admin filter the data by battery %

This filter is applicable on Android, Windows and iOS only

Available Storage Space Less than Equal to

Lets Admin filter the data by Storage space. It can be selected in MB or GB.

This filter is applicable on Android, iOS and Mac only

Show External Storage Space on Android Devices

This is a toggle and if turned on, the external storage space on Android devices will be revealed in the report

Data Usage More than Equal to

Select data usage limit of the device in MB or GB

This filter is applicable on Android and iOS only

Inactive for More than Equal to

Select if the device has been in inactive state in Hours/Weeks/Months

Management State

Lists Device's Status. Multiple status can be selected

  • Locked/Managed
  • Unlocked/Unmanaged

Encryption State

Select device's encryption state from the following:

  • Encrypted
  • UnEncrypted

By default, 'All States' are selected

This filter is applicable on Android, Windows and Mac only

  1. Once field selections are done, click on Download Report. The report will be downloaded in CSV format containing fields as configured by the user.

SIM Swaps

This report provides information about any SIM swaps taken place on the devices. If on a managed device, mobile sim is changed, removed or inserted, that information is captured because it is treated as security threat.

Platform: Android

Category: Legacy or Basic or Advanced

Steps:

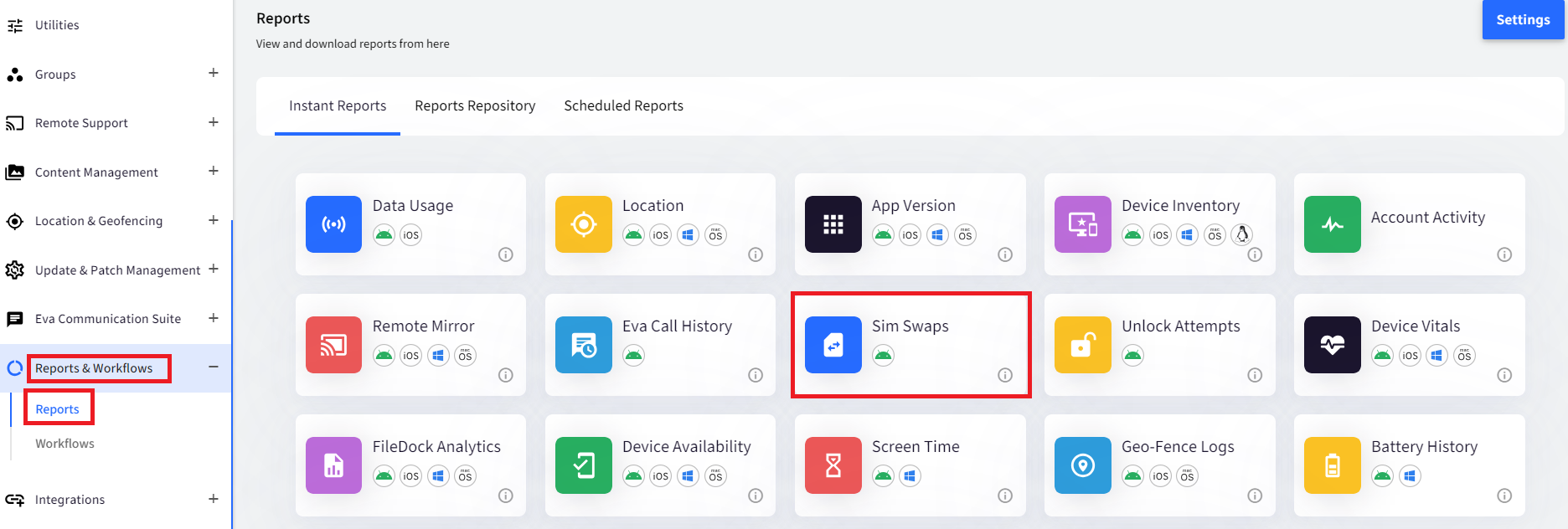

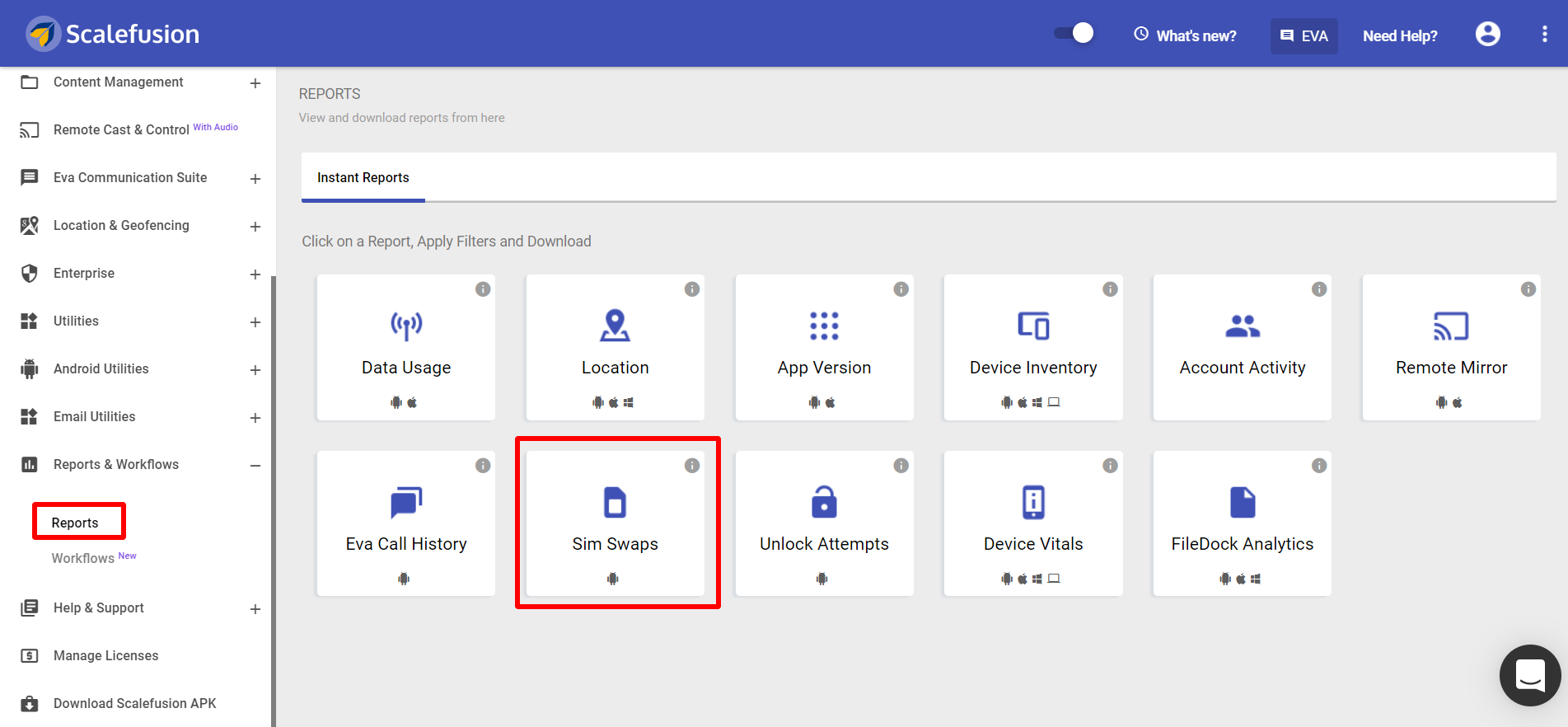

  1. Navigate to Reports & Workflows > Reports and click on SIM Swaps

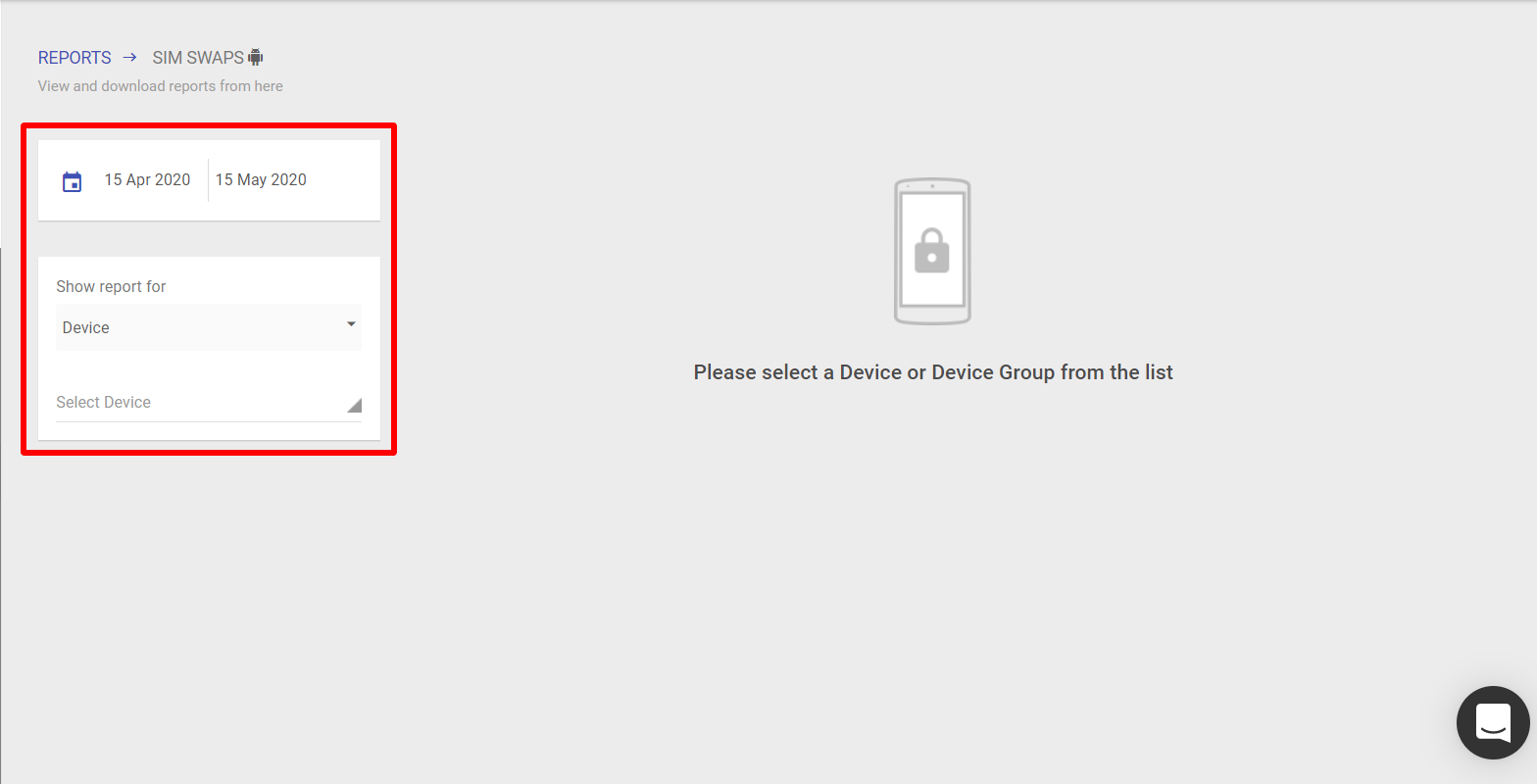

  2. Select Filters

Filter

Description

Date Range

Select the date range. By default you can generate one month's report where default is today's date

Show Report For

Two options here:

  • Device: Lets you select a particular device for which you want to check SIM swaps
  • Device Group: Lets you select a device group and shows SIM swaps for devices under that device group

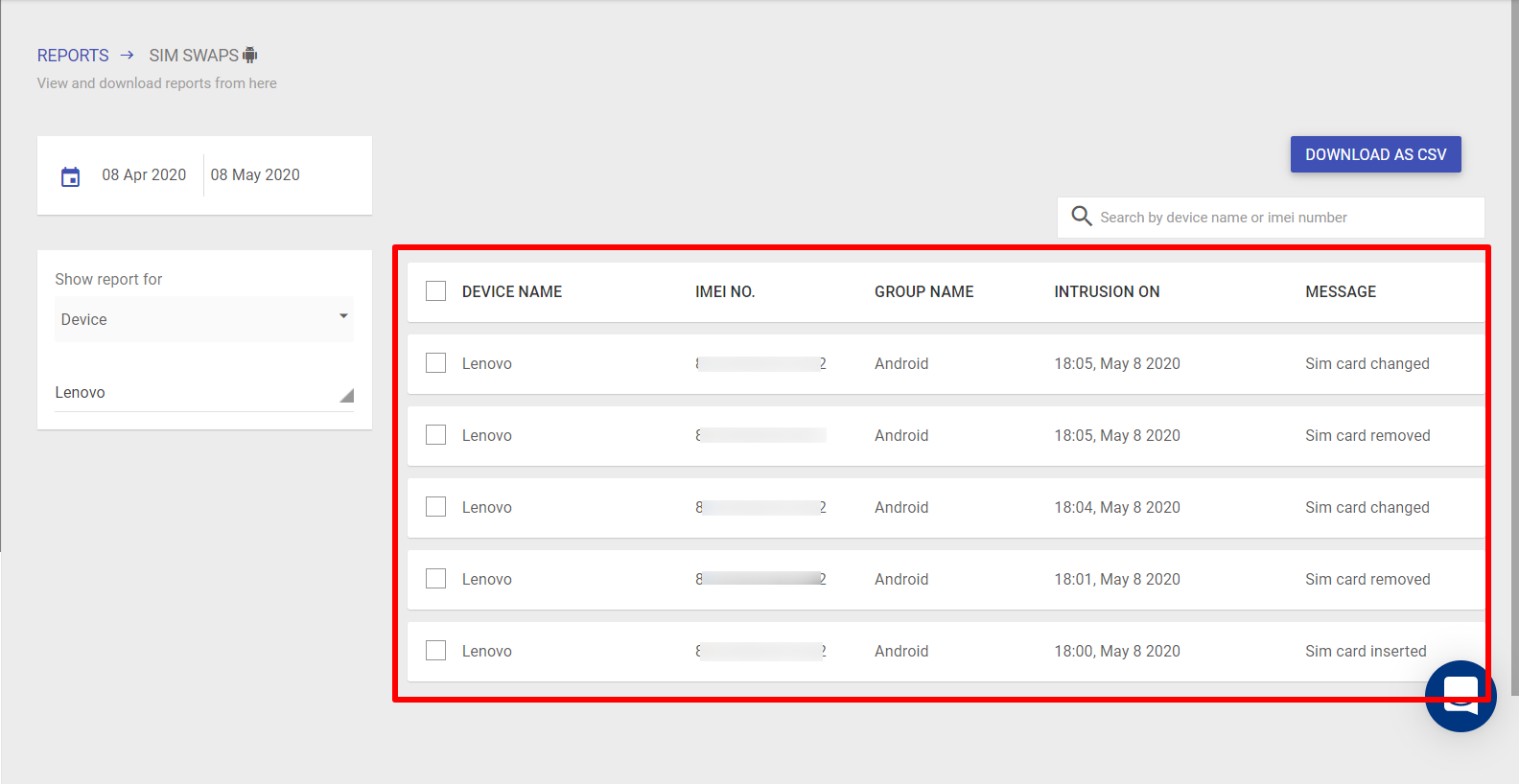

Report Output

Once you select a device or device group, the report will generate and show up. It gives following details in a tabular format:

  • Device Name: Name of the device
  • IMEI No.: IMEI number of the selected device
  • Group Name: Device Group name to which the device belongs
  • Intrusion On: Exact date and time at which SIM swap activity took place
  • Message: Description of activity (Sim card changed, Sim card removed, or Sim card inserted)

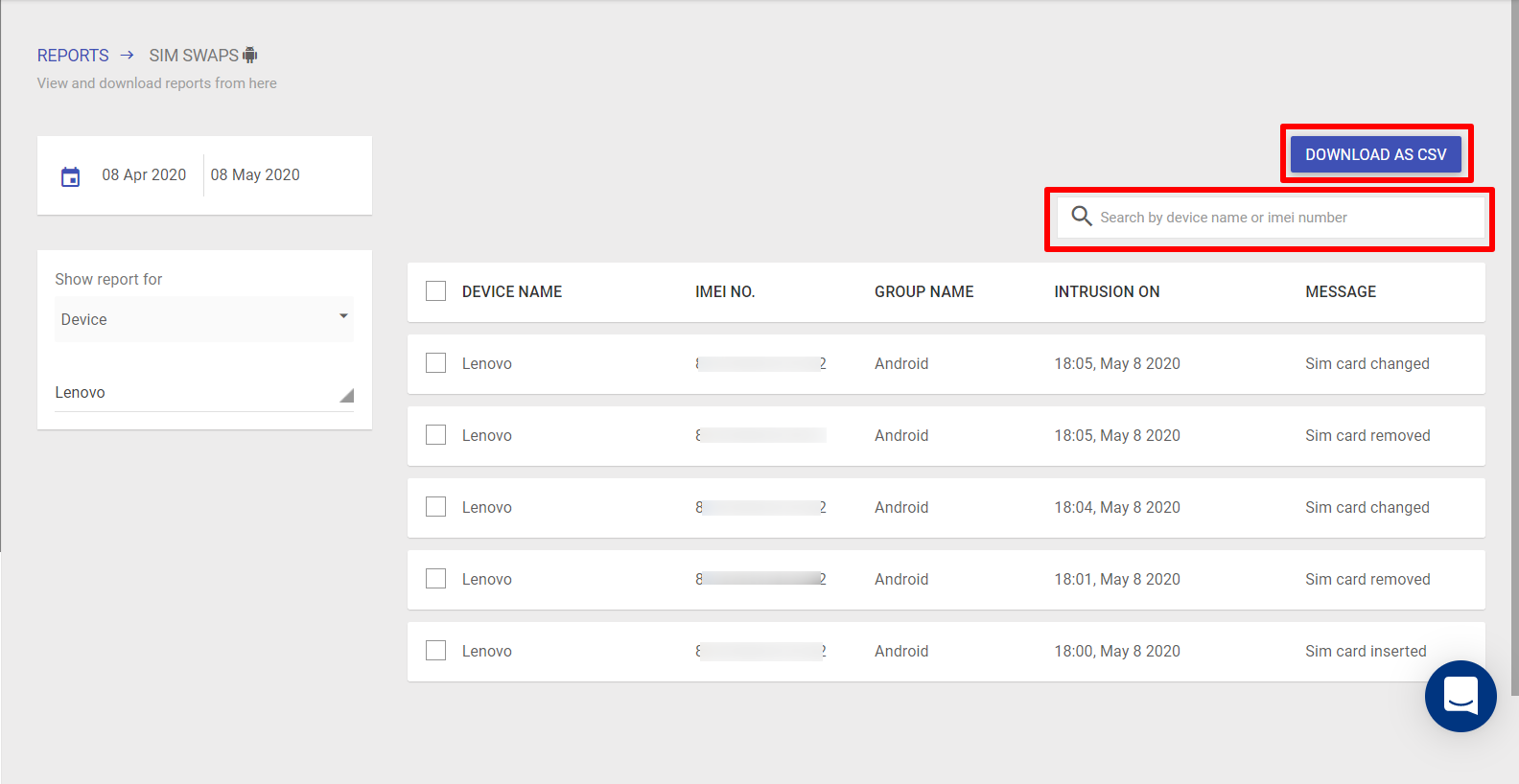

Additional Features

  1. Download - The report can be downloaded in CSV format from 'Download as CSV' button
  2. Search - To search for a particular record or set of records in the report from results, search by device name or imei number can be performed

Device Availability

Device availability report gives information about devices availability, that is, their Active/Inactive status and other related details during a selected timeframe. The Admins choose the filters based on their requirements and then download report.

Platforms: Android, iOS, Windows, Mac

Category: Basic, Legacy or Advanced

Steps:

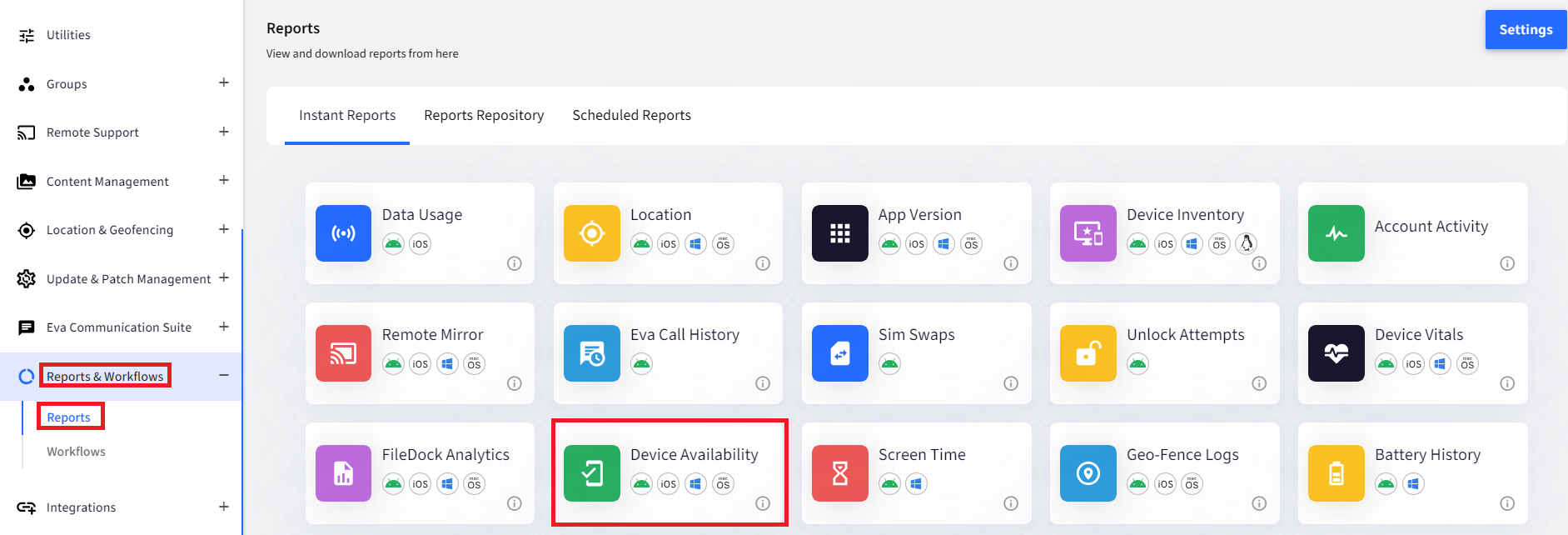

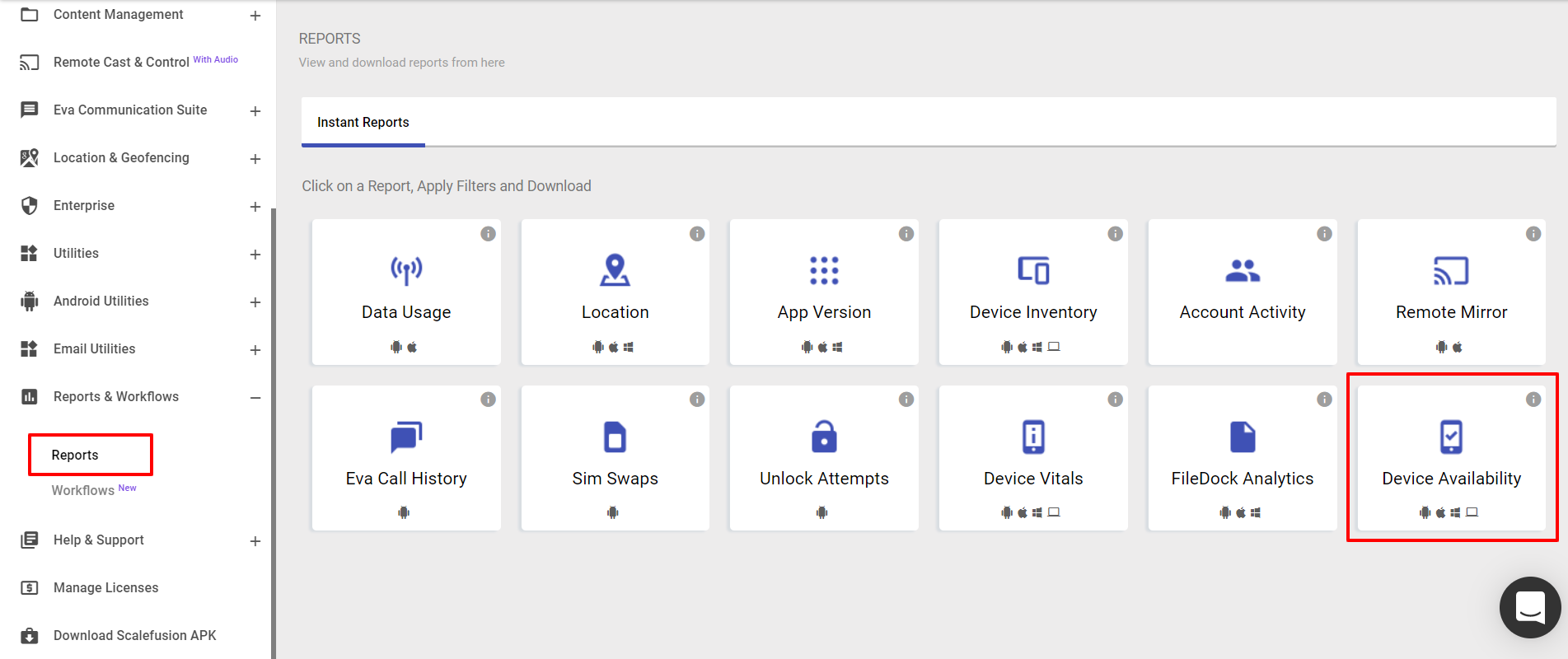

  1. Navigate to Reports & Workflows > Reports and click on Device Availability

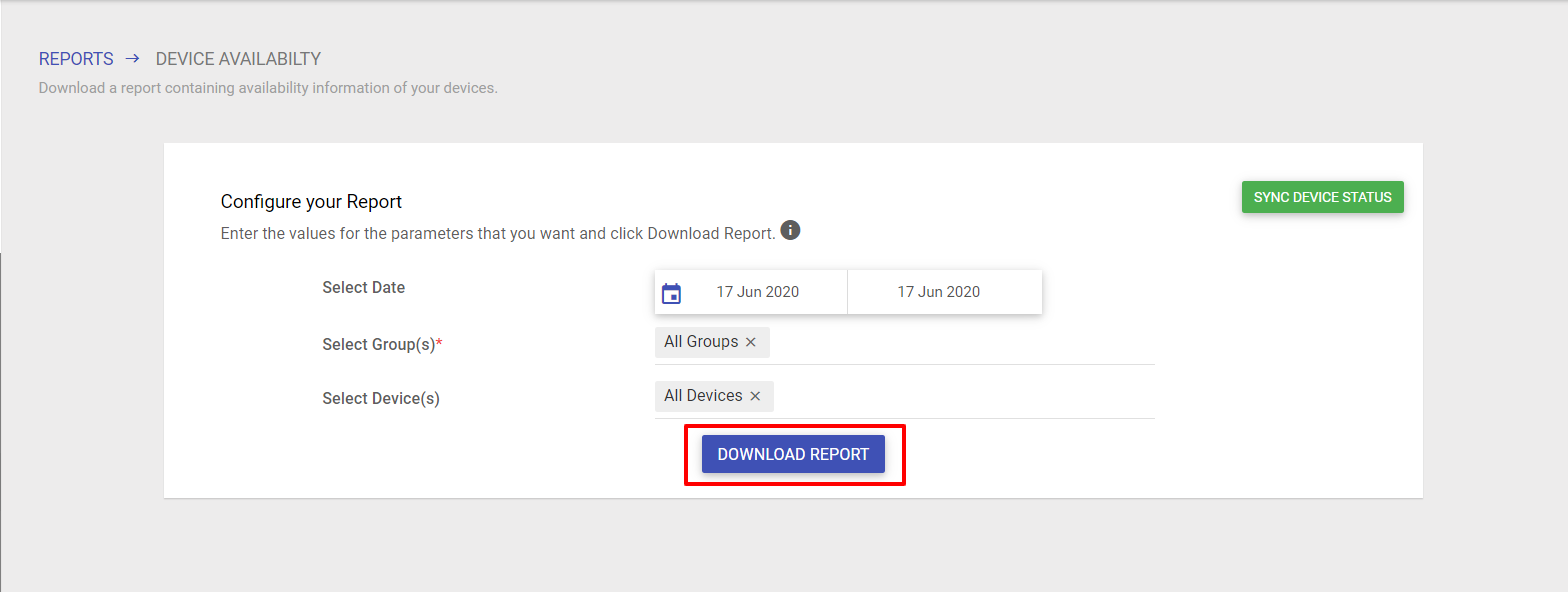

  2. Select Filters to configure your report

Filter

Description

Select Date

Select the date range. By default current date is selected

Select Group(s)

Lists those groups which have at least one device. Select Group(s) for which you need to generate report. By default, all groups are selected. It is mandatory to select group(s)

Select Device(s)

Lists all Devices and the Devices available from selected Groups. Select device(s). By default, all devices are selected

  1. Once field selections are done, click on Download Report. The report will be downloaded in CSV format based on the filters selected by the user.

Report Output

Following details related to the device availability are fetched in the downloaded CSV file

  • Device Name
  • Device Group
  • From: Time from when device's record is logged for status update
  • To: Time till when device's record is logged for status update
    The time will display as per user's preferred time zone selected in Account Details on Scalefusion dashboard.
  • Availability Status: Shows device's status as Active/Inactive/NA
    • Active - Device is online
    • Inactive - Device is offline or inaccessible due to being switched off or no network connection
    • NA - Unable to fetch device status
  • Duration: Indicates how long device has been Active/Inactive. For eg.: 3 hrs, 3 days, 1 Month

Additional Features

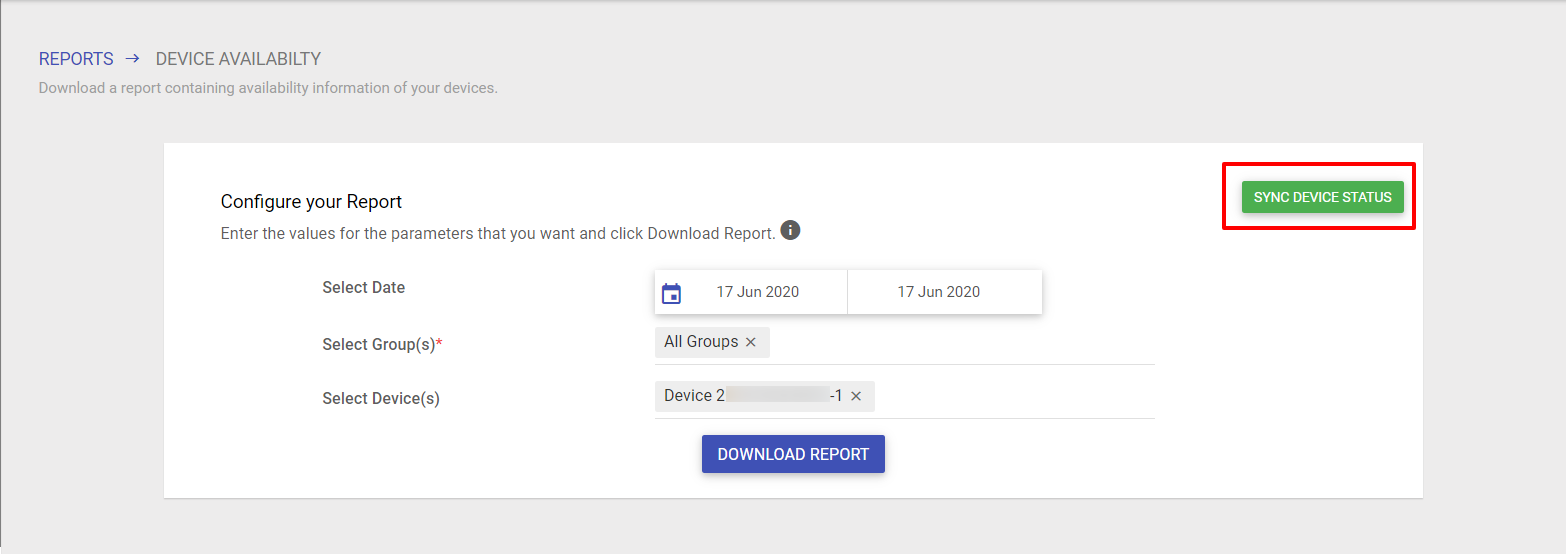

  1. Sync Device Status - The admins can Sync Devices for the latest availability status. This can be done through Sync Device Status. On clicking Sync Device Status button, the selected devices status and sync time gets updated.

Battery History

Battery History Report helps in determining battery status of devices, possible failures due to wear and tear, batches of defective batteries, all this on the basis of certain analytics. This information helps the admin in identifying remotely how much time of useful life any device's battery has.

Platforms: Android, Windows

Category: Advanced

Steps:

  1. Navigate to Reports & Workflows > Reports and click on Battery History
    Reports can also be accessed from the top navigation bar

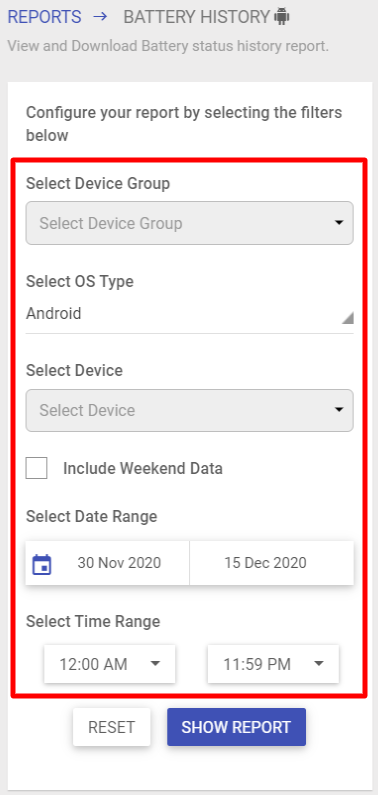

  2. Select Filters to configure your report

Filter

Description

Select Device Group

Lists Device Groups and Sub-Groups. Select a device group/sub-group.

Select OS Type

Lists OS types viz., Android, iOS, Windows. Select an OS type.

Select Device

Lists all the enrolled devices. If a Group is selected, then it lists only the devices which are part of that group. Select a device.

If list of devices is long, you can even search devices by name, IMEI number, serial number etc.

Include Weekend Data

If checked, the report fetches battery usage details for weekends as well, else not.

Select Date Range

Select the Date Range for which you want to check the usage.

By default, the start Date is 15 days from current date.

Select Time Range

Select Time Range for which you need to check battery status.

On dashboard, in Reports > Settings the flag Store Historical Records should be enabled. Only then the battery information from the device will be synced and reflected in the report.
By default this flag is set to OFF.
  1. After selecting filters, click on Show Report

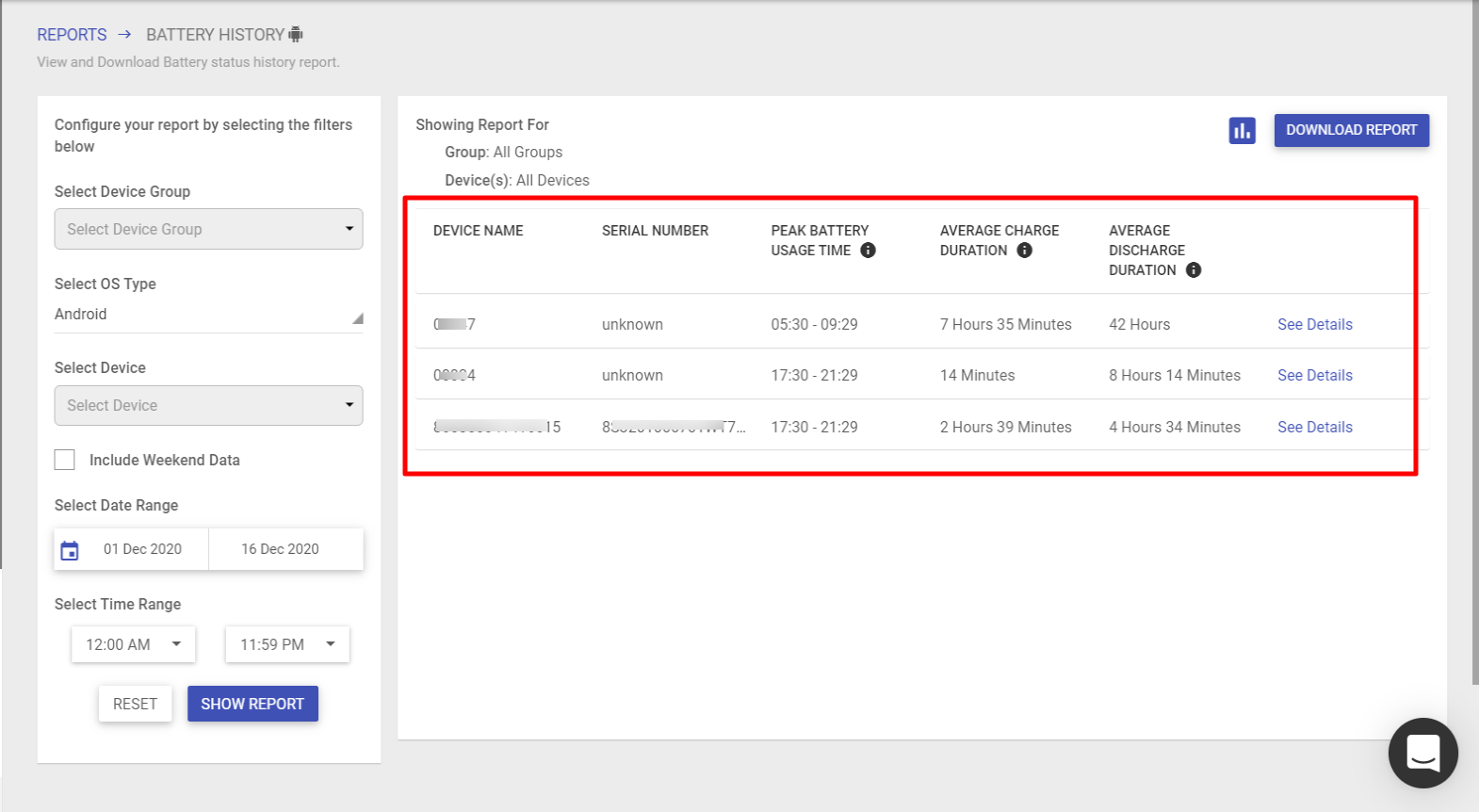

Reports Output

Based on selected filters, the report gets generated with the following details:

  • Device Name: Name of the enrolled device
  • Serial Number: Serial Number of the enrolled device
  • Peak Battery Usage Time: The timings during which the battery was drained the most. Usually covers 4 hours duration.
  • Average Charge Duration: The average duration for which the device was on charge. This is calculated as Total Time Device was charging / Number of days.
  • Average Discharge Duration: The average duration for which the device was on discharge. This is calculated as Total Time Device was discharging / Number of days.

  • See Details: Clicking on this opens a new dialog box showing graphically, the device's battery usage:
    • Average Battery Vs Time: The average battery consumption (%) in every three hours duration. Timezone is the preferred Timezone selected by the user in Profile.
    • Average Battery Per Day: The average battery usage (charge and discharge duration) per day.
    • Charge Discharge Pattern: The charge/discharge pattern of the device in every 3 hours duration. Here, green dots reflect charging time and red ones reflect discharge time.

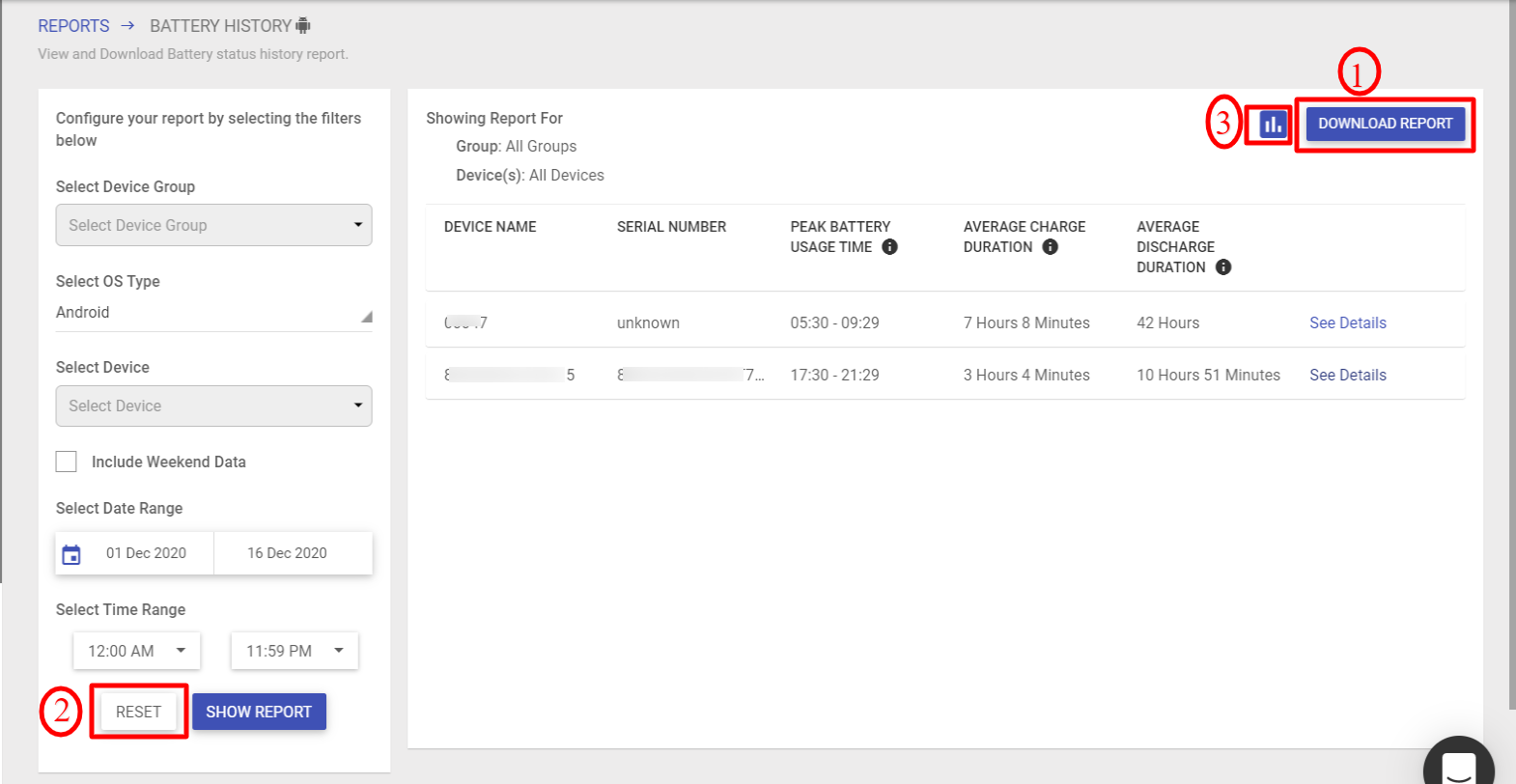

Additional Features

  1. Download - The report gets downloaded in CSV format on clicking Download Report button. The report covers information under following heads:
    1. Device Name
    2. Group
    3. IMEI Number
    4. Serial Number
    5. Peak Battery Consumption
    6. Average Charge Duration
    7. Average Discharge Duration
    8. Average Battery Per Time Slot
    The naming convention of the CSV file once downloaded, is automatically given based on the selected filters. For example, battery_history_report_01-12-to-16-12 would be the name of the report for the date range 1st to 16th December.
  2. Reset filters - The filters selected can be cleared and re-selected. The Reset button clears all filters.
  3. View - You can switch between device view and summary view. Device view gives a graphical representation of battery usage of devices.

How did we do?

Powered by HelpDocs (opens in a new tab)
