Android Device Profile Restrictions for Company Owned Devices

As part of device policy controls, the Restrictions section offers a wide collection of control and security policies that let you control and manage your devices better.

This document explains all Restrictions offered under Scalefusion Dashboard that can be applied to managed Android Devices.

Before You Begin

You must have a valid Scalefusion account

How to Access

Follow these steps to access Restrictions section in a corporate profile:

1. From your Scalefusion dashboard, go to Device Profiles & Policies ➞ Device Profiles.
2. Click on Create New Profile in the upper right corner or edit an existing Android device profile.
3. Select Kiosk/Agent option.
4. Enter a name for the profile and an exit passcode. Click on the Submit button. You will be redirected to the Profile creator view.

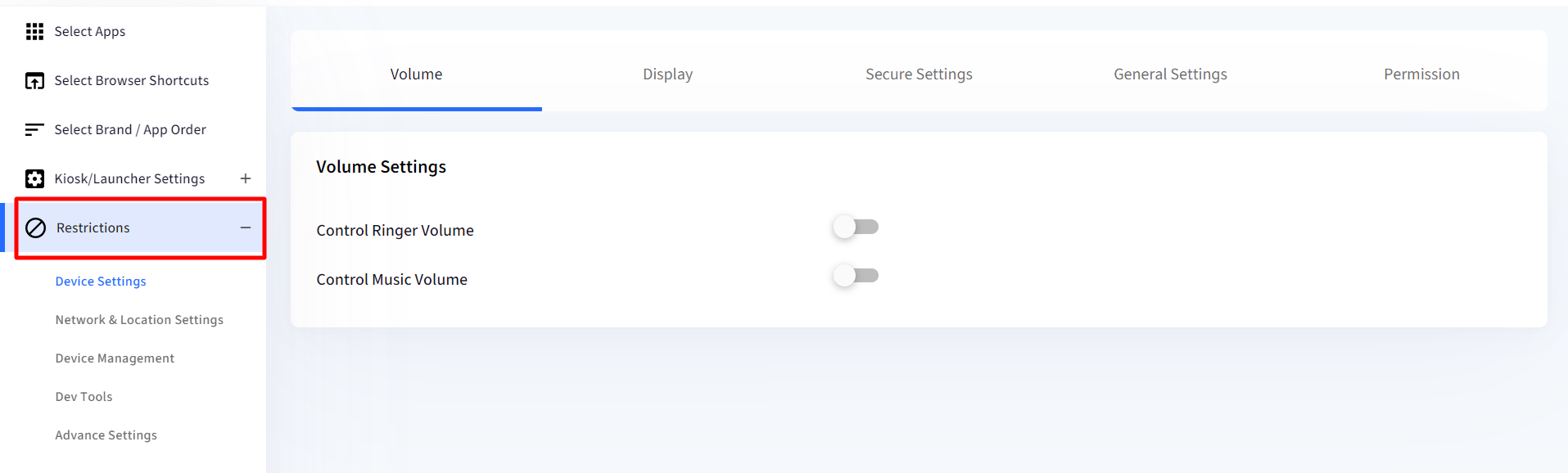

5. The last section is the Restrictions section. We explain below each of the controls in this section,



   Device Settings

   Volume Settings

   This setting allows you to control the volume attributes of your devices.


   Setting	Description
   Control Ringer Volume	Allows the user to control the device’s ringing volume. Choose one from the following options: Never: If this is chosen, volume cannot be controlled by Dashboard. Users can set volume according to their requirement manually. Mute: Sets volume to 0 (no volume) Fix at Level: Shows a bar which you can drag to fix the volume level Specify Range: Drag on the bar to set volume range
   Control Music Volume	Allows the user to control the music volume of the device. Shows same options as above to choose from.
   Control Alarm Volume	Allows the user to control the alarm volume of the device. Shows same options as above to choose from.

   Display Settings

   This setting allows you to manage the display attributes of your devices.


   Setting	Description
   Screen Time Out Settings	Allows you to set idle screen timeout duration from the dropdown list. ⚠ This is a device specific feature and may not work on all devices.
   Power Button causes the display to sleep	If the screen time out is set to Keep Always On, then an additional option that can be used to define power button behavior.
   Enable Adaptive Brightness	Enabling this auto-adjusts the device brightness according to the surrounding lights.
   Allow changing of brightness	Allows the user to change the screen brightness of the device from either the 3 dots Menu on Scalefusion home screen or Notification centre.
   Control device screen brightness	Use this option to enforce the default screen brightness. This will override user choice on the device if any. At a time you can only enable one out of the three settings enable adaptive brightness or allow changing of brightness or Control device screen brightness

   Secure Settings

   Configure additional security settings for your company owned devices to get better control and provide an enhanced kiosk experience. To start configuring these settings enable Override Global/Device Secure Settings,



   Setting	Category	Description
   Allow users to do Factory Reset*	Device Management	Choose if the user's are allowed to factory reset the device. On Samsung, Sony and LG, if disabled then it prevents the user's from factory resetting the device by using the ROM recovery method. For normal EMM devices, blocks the Factory Reset option in System Settings.
   Allow users to boot device in Safe Mode*	Device Management	Choose if the user's can use the power-off key and boot into safe mode.
   Allow users to power off the device	Device Management	Choose if the users are allowed to use the power-off button and switch off the device.
   Enforce SD card Encryption	Device Management	Enabling this setting enforces encryption for the SD card on Knox enabled devices. Password should be set on devices to be able to use this feature. Place a shortcut on home screen to prompt users: Places a shortcut on the home screen which directly takes you to Settings app from where you can enforce encryption. This can be enabled only if SD card encryption is enforced. To enforce encryption: Enable this setting on Dashboard. On the device, click on the shortcut icon on home screen. Encrypt the SD card.
   Allow users to enable/disable the airplane mode	Settings Management	Choose if the users can control the Airplane mode from the power-off menu or from system settings.
   Disable Guest Mode	Settings Management
   Allow System Error Dialogs	Settings Management	When this setting is turned on, the error dialogs will be visible to users for cases like app crashes. If turned Off, the error dialogs will be hidden. Applicable on EMM managed devices

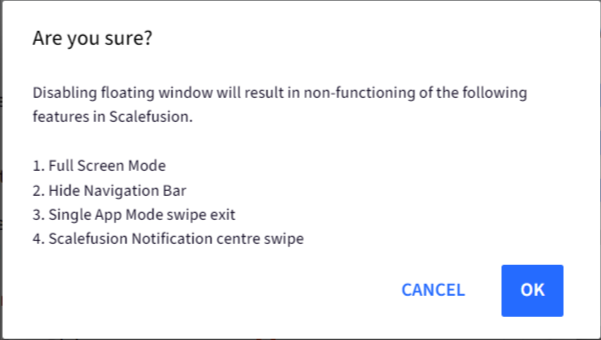

   Allow Floating Windows	Settings Management	When this setting is turned On, floating app windows will be allowed on devices that support floating windows, for multi-tasking. After enabling, if you disable this setting, a confirmation box will come up
   Allow unknown sources*	App Management	Choose if the user's are allowed to install android applications from third party apps or directly by downloading apk's.
   Allow App Uninstallation and Clear App Data	App Management	Choose if the user's can uninstall and/or clear the application data of installed applications.
   Disallow User to set Wallpaper	Settings Management	Enable this setting if you want to restrict the users from changing wallpaper on EMM Managed and Samsung Knox enabled devices. This setting works when device is set in Kiosk or Agent mode.
   Set Lock Screen to None, if No PIN/password is set on device	Settings Management	Sets the lock screen to None when following conditions are met: The device supports Wingman No Password Policy applied No PIN/Password set from settings
   Disable Edge Screen	Settings Management	Disables access to Edge Screen from where you can quickly access your apps/features/contacts. Applicable on Knox devices
   Enable Double Tap to Wake	Settings Management	Wakes up the device from sleep mode on double-tap. This setting works on Wingman supported devices. This is an experimental feature and may not work on all devices.
   Block Settings on Boot	Settings Management	If this is enabled, users will not be allowed to access settings from the notification bar after device is rebooted. This setting is applicable on EMM Managed devices with Android OS version 7 or above.
   Prevent In-App Browsing	App Management	This setting blocks the Android Webview component thereby blocking apps using it for in-app browsing. Please note this will work: If Scalefusion browser is not enabled URLs shortcuts have not been configured Devices are EMM Managed
   Disable Emergency Call Menu on Lock Screen	App Management	Disables the emergency call menu on Lock screen on Lenovo devices
   Block Incoming MMS	App Management	Enabling this blocks incoming MMS on Knox supported devices
   Allow Users to change Screen Lock Type	App Management	The setting will allow/disallow the user from setting a lock screen Password on Lenovo devices (OS 10 & above). The user will not be able to access the lock screen password configuration in Settings app.
   Allow users to use Home Key	Hardware Keys	Choose if the user's can use the Home button on the Android devices.
   Allow users to use Back Key.	Hardware Keys	Choose if the user's can use the Back button on the Android devices.
   Allow users to use the app switch key.	Hardware Keys	This setting can be used to block the Recent Key altogether.
   Allow Multi Window	Settings Management	Choose if user's can use the multi-window feature on some phones/tablets.
   Allow MTP access	USB Device Management	Choose if the user can access the media on the device via MTP protocol when connected with a device via USB cable.
   Allow users to connect via USB cable	USB Device Management	Choose if the users can connect the device via USB cable and access the USB storage and other options.
   Allow USB Debugging mode	USB Device Management	Choose if the users can use the USB Debugging feature when connected to a USB cable.
   Disable SIM card	Additional Settings	Disables SIM card on Lenovo devices
   Disable Accessibility Option in Navigation bar	Additional Settings	Disables accessibility option present in Navigation bar. This is applicable on Lenovo devices.

   NOTE: Secure Settings can be controlled from Enterprise > Secure Settings section as well, however we recommend controlling this from Device Profile for uniformity and ease of management.
   Secure Settings can also be enforced using Wingman on non-EMM devices that support Wingman. For this navigate to Android Utilities > Global Settings and enable the flag Use Wingman to enforce secure settings on Kiosk Devices

   Unlock Settings

   An IT admin may need to unlock a device for a short duration for debugging or some other reasons. To maintain the security of the device even when it is unlocked, certain settings can be configured. Click here to learn about the settings and their configuration.


   General Settings

   These settings allows you to manage some general settings.
   Timezone Settings


   Setting	Category	Description
   Configure Automatic Network Time & Timezone	Timezone Settings	You can configure the time & timezone to be picked up by the device. There are three options to choose from: Enable: Forces the device to use network time only, if available. If this is enabled, the rest of the timezone settings cannot be configured. Disable: Disables the network based time Allow Users: Users get option to toggle this setting to on or off. These are configurable on EMM managed, Lenovo and knox supported devices.
   Prevent users from changing date/time from Settings app	Timezone Settings	Blocks users from changing date/time from Settings app if they have access to Settings on device. This is configurable on EMM managed and knox supported devices with Android OS 9 and above.
   Allow users to set Date/Time from Scalefusion app	Timezone Settings	Provides an option to users to set the date/time manually inside Scalefusion app. This is configurable on EMM managed, Lenovo and knox supported devices.
   Allow Users to access “Timezone” inside the app	Timezone Settings	If this option is enabled then user's can see an option in Scalefusion menu to change timezone.
   Choose Timezone configuration	Timezone Settings	Enforce a default timezone for the devices from a list of previously created TimeZone configuration.
   Disable Power Menu	Disable Power Menu	Enabling this setting hides the power off menu when user presses on the Power button. Note this does not disable the Power off functionality completely but just hides the Power off menu. This setting may not work consistently on Android OS v9.0 and above.

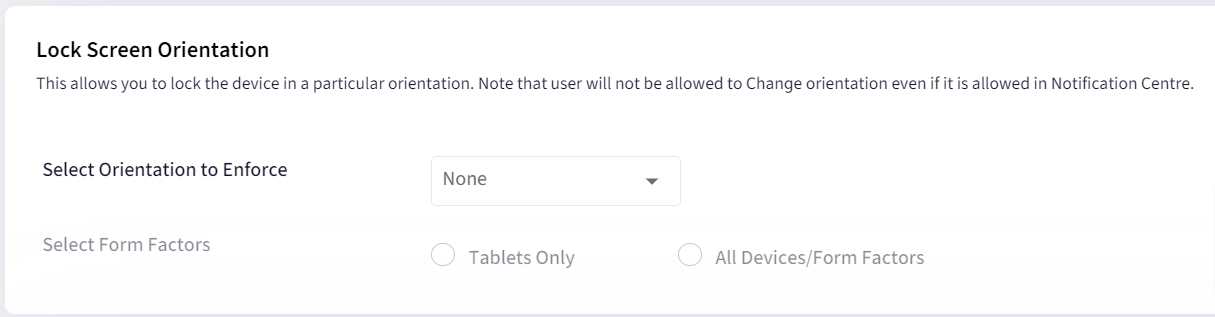

   Lock Screen Orientation	Lock Screen Orientation	Enforce an orientation on your devices by selecting the following: Select Orientation: Select either Portrait or Landscape Select Form factors: Apply the orientation on tablets or all devices. Select one. You cannot enable the Change Orientation feature from Notification centre if you configure orientation from this setting ⚠ This is a device specific feature and the mileage may vary from OEM to OEM.
   Wifi State	Network/Peripheral Settings	Choose if you want to enforce the Wifi to be always On or Off. By default it is set as None and no policy is enforced.
   Bluetooth State	Network/Peripheral Settings	Choose if you want to enforce the Bluetooth to be always ON or OFF. by default it is set as None and no policy is enforced.

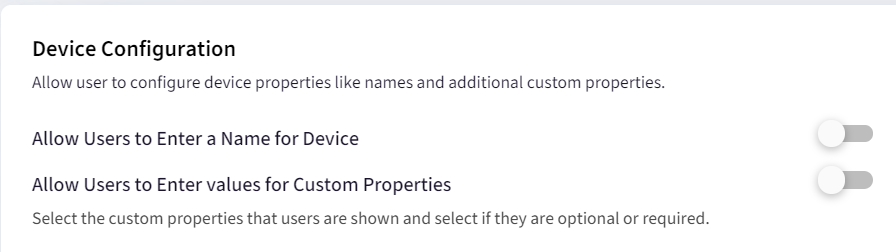

   Device Configuration	Device Configuration	Allows users to configure device properties like names and additional custom properties with the following settings: Allow Users to Change the Name of Device: If this toggle is set to ON, then users can set the device name from the device. Allow Users to enter values for Custom Properties: With this toggle on, you can select the custom properties that users should be shown on the device and select if they should be optional or required. Having set this, the custom fields that are allowed, users can set values for those custom fields (from the device).

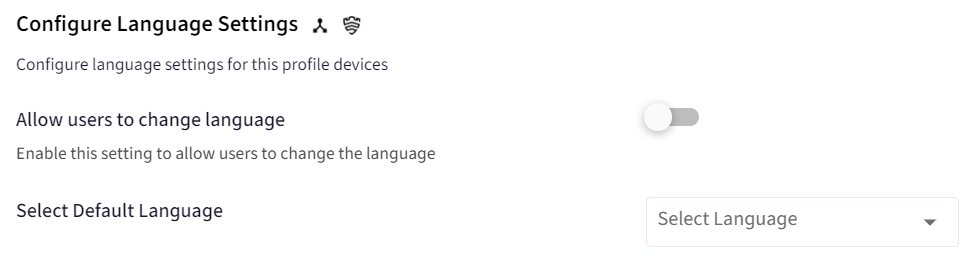

   Configure Language Settings		Configure language settings for devices with the following settings: Allow Users to change Language: Choose this if you want to allow users to change language on device Select Default Language: Select the default language for the device These settings are configurable for Samsung Knox and Wingman supported devices.

   Permission Settings

   Scalefusion requires some permissions to manage the devices properly. Choose what happens when permissions are missing and control additional permissions.


   Setting	Description
   Enforce Exit Password to Complete Setup	Toggle on this option to enforce an exit password to be entered by user for completing setup
   Enforce Disable Assist App	If you select this, the Google assist app will be disabled for the user
   Enforce Battery Optimization Exclusion permission	Battery Optimisations kill the apps and its process in background to optimize battery usage. However, to be able to apply all policies properly and secure the device, Scalefusion needs to be kept running in background. Enabling this setting ensures Scalefusion agent app to run in background for longer times and excludes it from battery optimization. When this setting is enabled, a permission toggle is shown during enrollment that asks for battery optimization exclusion. This permission is applicable only when Scalefusion app is installed from Application Management > Scalefusion Apps. It won't be included when Scalefusion is installed from PlayStore.

   Network & Location Settings

   WiFi Settings

   This setting allows you to manage the WiFi configuration of your devices.


   Setting	Description
   Choose WiFi configuration	Allows you to select and switch between Primary as well as additional Wifi configurations.  Since it is multiple Wi-Fi, users can Switch Wifi connection, between the available ones. Once Wi-fi is published on the device, it attempts to connect to the one with the strongest signal. Wifi Configurations can be created from Device Profiles & Policies > All Configurations > Global Settings > Wifi Settings
   Allow Fallback if configured Wifis cannot be setup	If enabled, it allows users to connect to a different Wifi if any of the configured Wifis cannot be connected. We show a list of possible wifis the user can connect to.
   Allow Fallback if configured Wifis are not reachable post setup	Allows users to connect to a different Wifi if the configured Wifis are valid but not reachable.
   Allow users to access “WiFi Connection” menu inside the app	Enables access to the WiFi Connection menu from the Scalefusion application. If a Wifi configuration is applied then this menu cannot be used. ⚠ This feature works only when Scalefusion is set as Launcher.
   Allows users to connect/disconnect from WiFi Network	Allows the user to connect or disconnect a WiFi network from the Scalefusion application. If a Wifi configuration is applied then this menu cannot be used. ⚠ This feature works only when Scalefusion is set as Launcher.

Mobile Network

This setting allows you to manage the Mobile data configuration of your devices.

Hotspot Settings

Mobile Data Settings

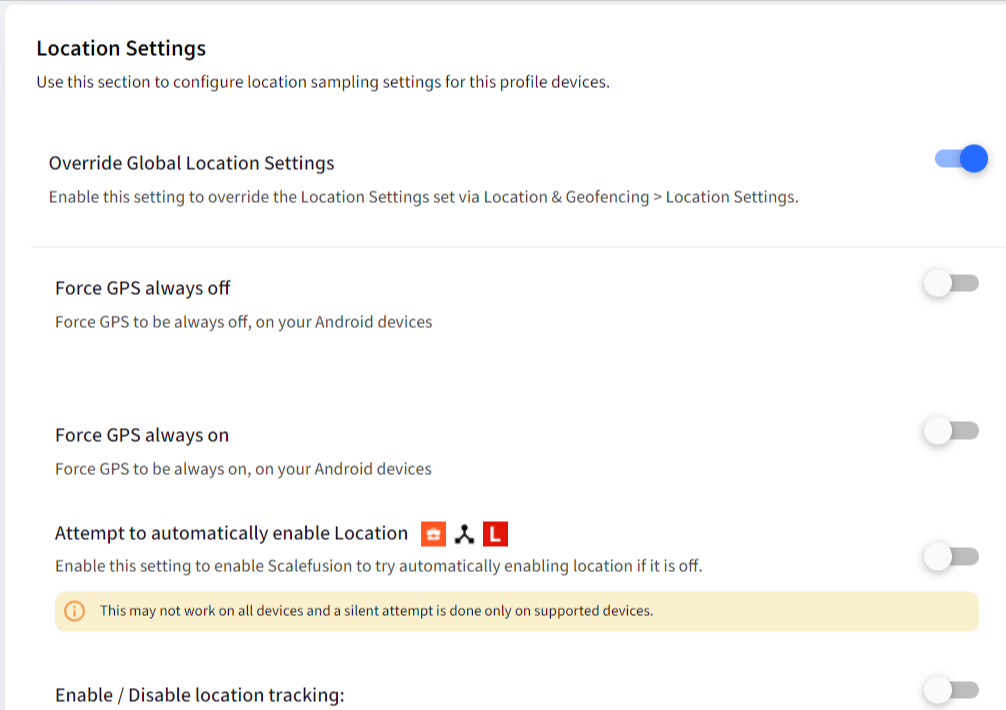

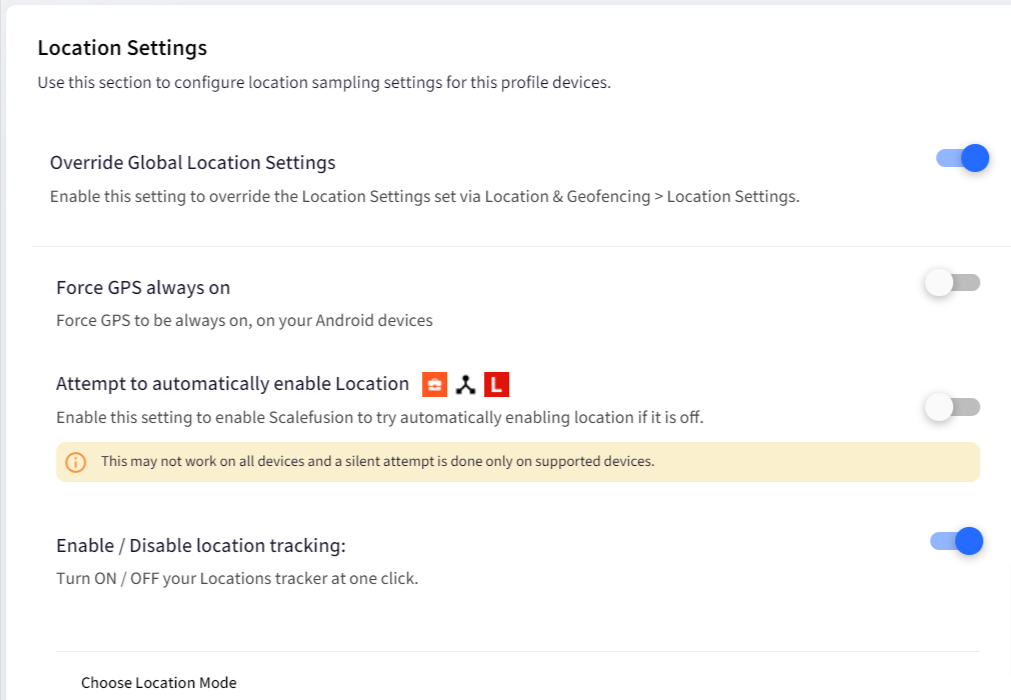

Location Settings

Configure Location Settings on the device profile which get applied to the devices on which the profile is applied. To configure Location settings, toggle on the first setting that is, Override Global Location Settings. This enables the other settings and makes them configurable. When applied, they override the settings which have been set through Location & Geofencing > Location Settings on Dashboard.

Force GPS always off: Enforces GPS to be always off on Android devices which are EMM Managed, Wingman, Knox and Lenovo. If this setting is enabled, the rest of the settings are not configurable.

To learn more about Location Settings, visit the section Configure Location Settings

VPN Settings

From the list of applications, you can select one app and mark it as Always On VPN with an additional flag to lock down the network.

This feature works only on EMM devices having OS7 and above versions, being setup using afw#mobilock or is setup as Device Owner.

Device Management

Application Management Settings

From this section admin can configure application management settings for EMM managed devices that lets them control the catalog features.

EMM Settings

These are the additional settings for your EMM managed devices that provide additional security and control. These settings also allows you to give your users access to System Settings in a controlled fashion if need be.

Compliance

When managing company owned devices, it becomes imperative to make sure that the device adheres to compliance standards such as the device integrity, security and compatibility.

To mitigate such risks Scalefusion uses Google Play Protect API to check the device compliance.

Google Play Protect examines software and hardware information on the device where the Work Apps are being used. This attestation helps Scalefusion to determine whether or not the particular device has been tampered with or otherwise modified.

Using Scalefusion's Device Profile for kiosk devices you can enforce stricter device compliance rules and the actions that need to be taken in the event of violation.

Access Conditions

There might be some applications that distract users while driving. Scalefusion has provision to control the access to applications based on device speed. With Speed Based Access configurations under Access Conditions, admin can block such applications once users have reached a specified speed limit thus making driving a seamless experience.

Please refer to the document for Speed based Locking of apps to know how it can be done.

Exchange Settings

Use this setting to configure an Exchange account on the device. You can select a previously created exchange configuration. Please refer to our Exchange configuration document for details.

Dev Tools

Developer API

In the Developer API section of Device profile an MDM SDK is provided that can be used in your enterprise apps to get the device information and perform a wide variety of actions (like launching wifi screen, toggle mobile data, toggle hotspot etc.) locally on device. Visit here for more details.

Advance Settings

Schedule Power On/Off Settings

This section can be used to configure settings for specific devices mainly Lenovo and Samsung Knox

SIM Binding Settings

SIM cards can be bound with the IMEI number of devices to prevent the device's misuse. Click here to learn the SIM binding settings and how you can configure them.

Configure Support Messages

IT admins can configure support messages that appear on the settings screen when user tries to access any functionality/feature that is blocked or restricted. Both long and/or short messages can be configured. To configure,

1. Toggle on the setting Configure Support Messages



2. In the text area, enter message. The maximum length of the message is 4096 characters. However, for a short message, if the message length is greater than 200 characters, the message is truncated on the device.
3. IT admins can enter the message in their preferred language.

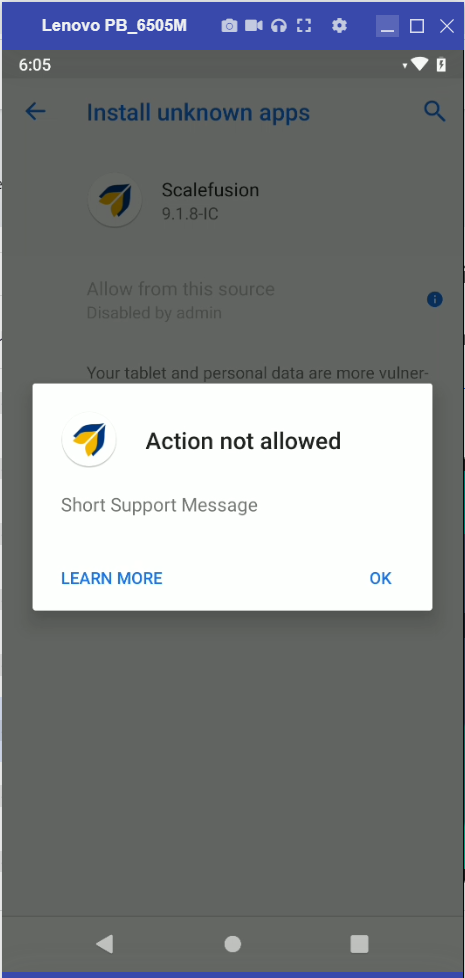

4. This is how the message will appear on the device screen.



OS Update Settings

You can select a policy for installing Android OS Updates. Click here to learn about all the settings.

Run Commands

With Run Commands, IT admins can configure additional triggers to execute Remote Commands whenever that event occurs (run at install, schedule at a specific time etc.) and even when the devices are offline. Click here to learn more.

OEM Configurations

OEM Configurations section displays the collection for OEM specific Configuration applications aka OEM Config apps. The applications are developed by Original Equipment Manufacturers (OEM) that are purpose built to give you fine grain control on their devices. These applications let you remotely configure additional proprietary settings of the device via these applications that are not possible otherwise.

Using the OEM Configuration section, you can configure these directly from the profile and also view the status of the deployment as a quick action item. Please refer to this document on how to setup these policies.
