Configure Wifi Network on Windows Devices

MobiLock's Wifi configuration feature helps you create a Wifi Network that can then be pushed to the devices, so that the Wifi network is automatically configured.

In this guide we will see how to create a Wifi configuration and then apply it to a Windows Device Profile.

Before you Begin

  1. Login to MobiLock Dashboard
  2. Have access to the Wifi network settings.
  3. Have access to one MobiLock managed Windows device.

Wifi Configuration

Creating a Wifi Configuration

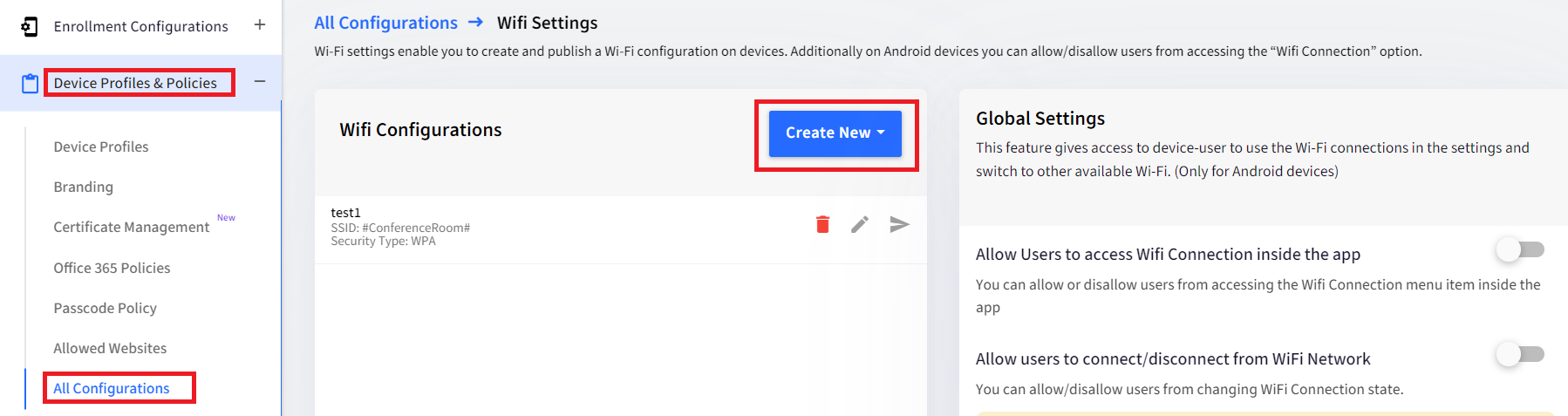

  1. Navigate to Utilities > Wifi Settings. This screen displays all the Wifi networks that you have created till now. Click on CREATE NEW to create a new Wifi configuration.
  2. The Wifi Configuration window is displayed with the following fields,
    1. Configuration Name: Enter a name for this configuration, to refer to it across Dashboard.
    2. SSID: Enter the SSID broadcast name for the Wifi.
    3. Hidden Network: Enable this if the network is hidden.
    4. Security Type: For Windows 10, MobiLock currently supports None, WEP, WPA/WPA2 PSK.
    5. Password: If the security type is WEP OR WPA/WPA2 PSK, enter the password required to connect to this Wifi.
      Once you have entered the relevant details, click on SUBMIT to save the configuration.

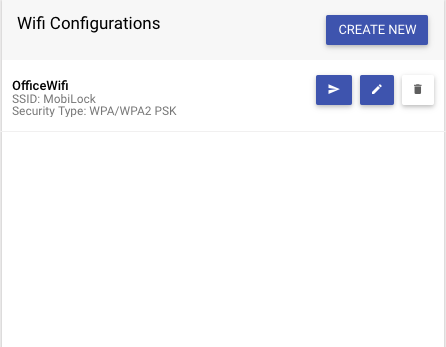

  3. Once the configuration is saved it will start appearing in the list of configurations.

Publishing a Wifi Configuration

  1. Navigate to Utilities > Wifi Configuration to see the list of configured Wifi networks.

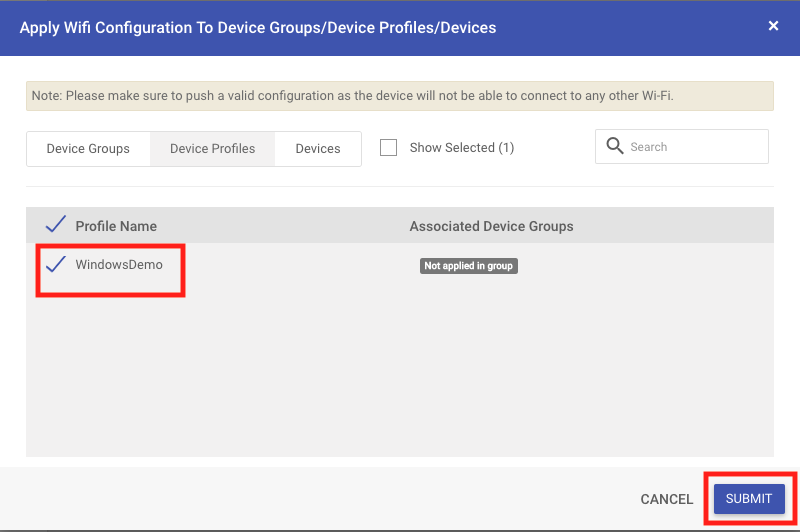

  2. Click on the Publish icon and select the Device Profile(s). Once you have selected the Device Profile(s) click on SUBMIT
Wifi Settings can be applied to Windows Device Profile only. They cannot be applied to Device Groups or individual devices.
Once a Wifi configuration is created, you can apply the Wifi configuration by editing the Device Profile. In Device Profile you can control other network settings from a single place.
