Step 3 : Create a QR Code Configuration

QR Code or Device Enrolment Configurations are a quick and easy way to enrol your iOS devices. By creating a QR Code configuration, you can choose the default Group or Profile and a naming convention for the devices that are enrolled using this QR Code.


Additionally, these Configurations also provide you with an URL that can be used with Apple Configurator 2 or directly on Safari on the iOS device.

Before you Start

  1. Make sure you completed APNs upload part as per Setting Up APNs.
  2. Make sure you have at-least one Device Profile as per Create an Apple Device Profile.

Video Guide:

Please watch the video for a visual walkthrough on how to create a QR Code configuration.

Details

  1. Once you are logged into Dashboard, navigate to Device Enrollment > QR Code.
  2. Click on CREATE.

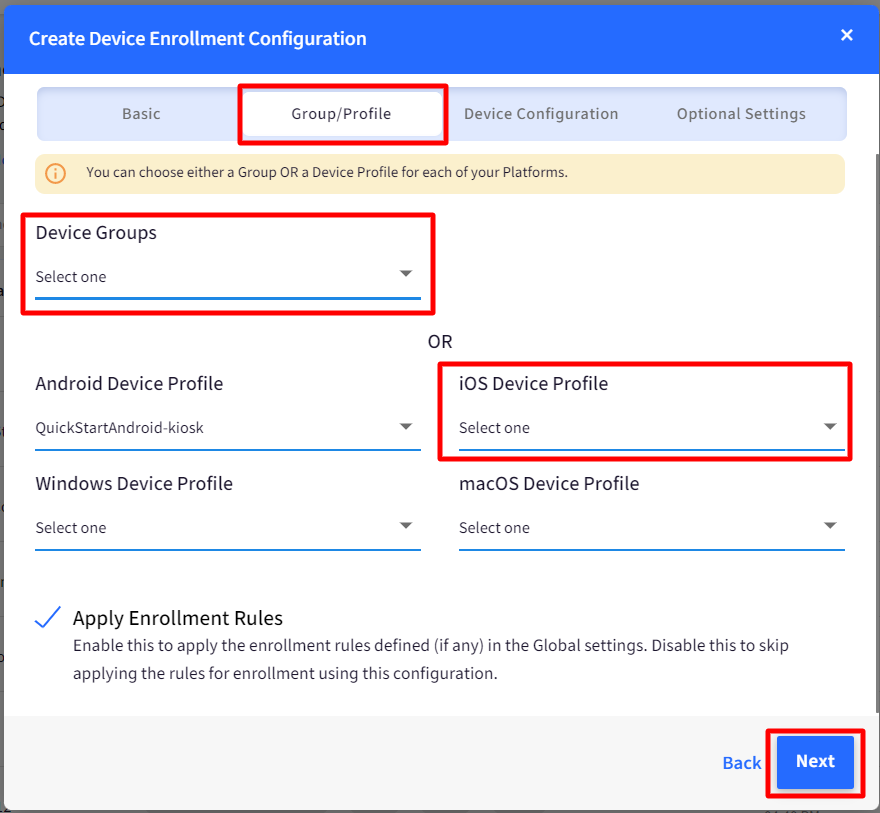

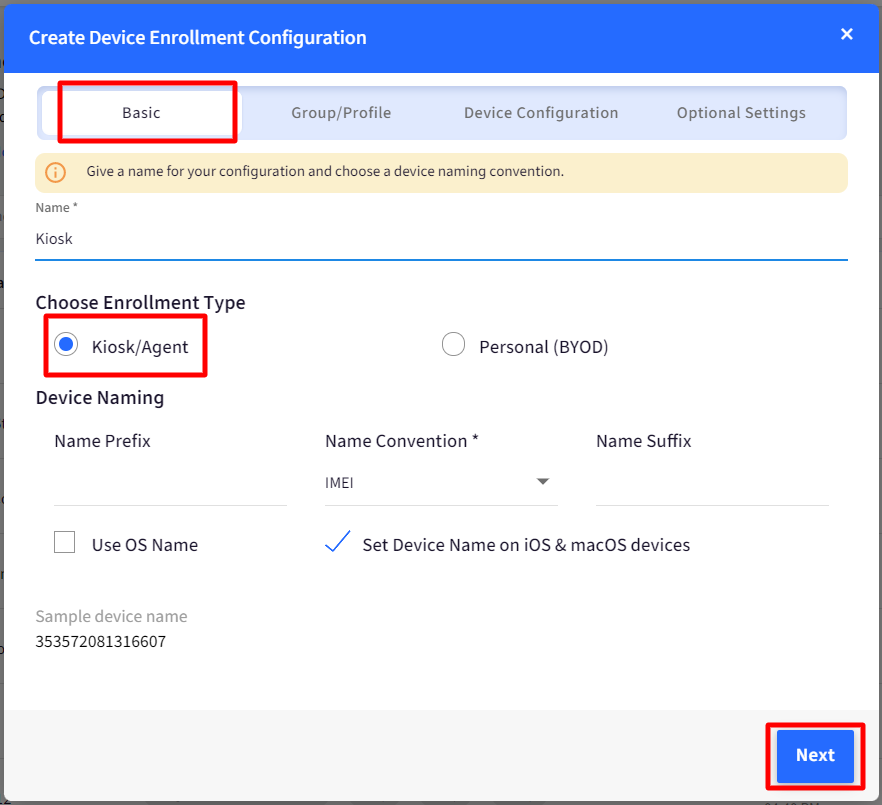

  3. This will open a Dialog where you need to do the following,
    1. Enter a Configuration Name
    2. Choose either a Device Group OR an Android Profile OR an Apple Profile
    3. Specify a Device Naming Convention that will be used to auto-generate device names.

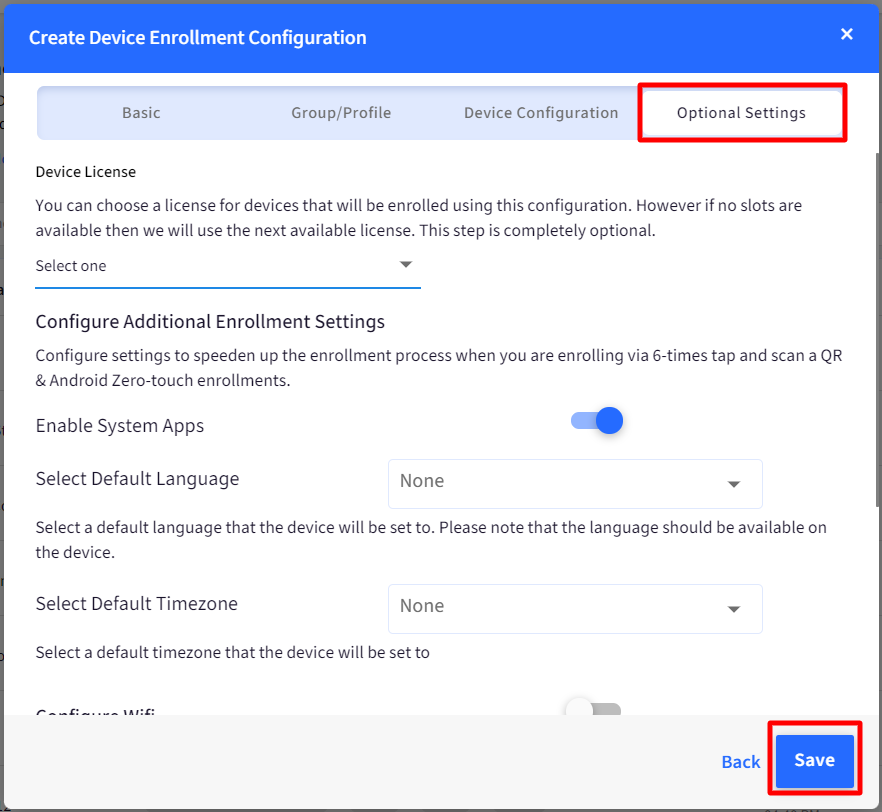

  4. Enter a Configuration Name, choose the Apple Device Profile that we created an a naming conventions. Once you have entered the details in Step 3, click SAVE.
  5. Once the configuration is saved, it will appear in the list. A configuration has the following things,
    1. QR Code - That can be used to scan using the iOS Camera.
    2. Enrolment URL - That can be used with Apple Configurator 2.

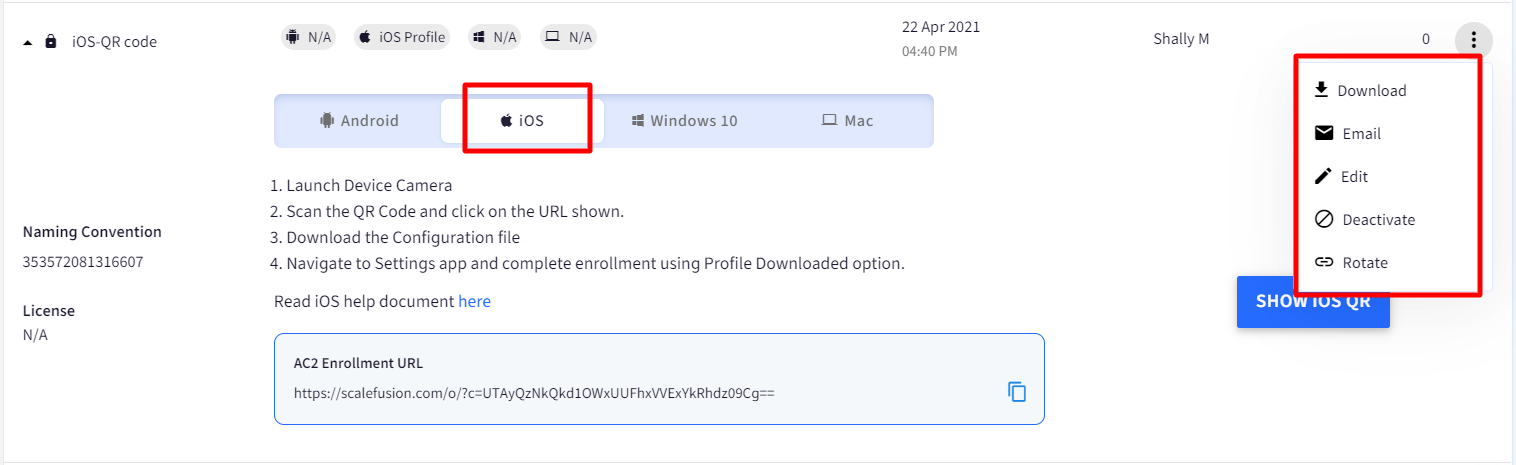

  6. The additional actions on a Configuration are,
    1. Download - This will download the configuration file. This is Not Applicable for iOS devices.
    2. Email - This will send an email to your account with QR Code and the details on how to set up.
    3. Edit - Helps you in editing the Configuration. Note that editing won’t impact the devices that are already enrolled.
    4. Deactivate - If you no longer wish to use this configuration or think it is compromised, then you can deactivate the config.
    5. Rotate - If you think that the configuration is compromised, you can use this option. This will generate a new QR Code and URL. Note that the previous QR Code and URL will no longer be valid.
