Location Reports

The devices enrolled through Scalefusion MDM are sometimes not located at one single place. However, there are mechanisms on Scalefusion Dashboard through which the locations of devices and other related details can be identified. Location reports give an account of all location related information tracked under Scalefusion Dashboard, in a systematic form.

This document gives description of all location related reports.

We have the following location reports:

  1. Location
  2. Geo-Fence Logs

Who can access

The reports are tied up to the plan that a customer purchases and hence divided in three categories:

Basic: All customers in Pro and Business plan. New Users are allocated Basic during the trial period

Legacy: All customers in a non-Enterprise plan

Advanced: All customers in Enterprise plan

Location

Location Report is a collection of two reports:

Report

Description

Platforms

Subscription Plan

Location

Gives complete location information of selected device

Android, iOS, Windows

All Plans

Distance Report

Distance travelled by device during the selected timeframe along with total time it was in motion and details of pitstops.

Android, iOS

Enterprise (Modern, Legacy or Trial)

These are explained in detail below:

Location Report

Location report gives complete location information of selected device

  1. Navigate to Reports & Workflows > Reports and click on Location

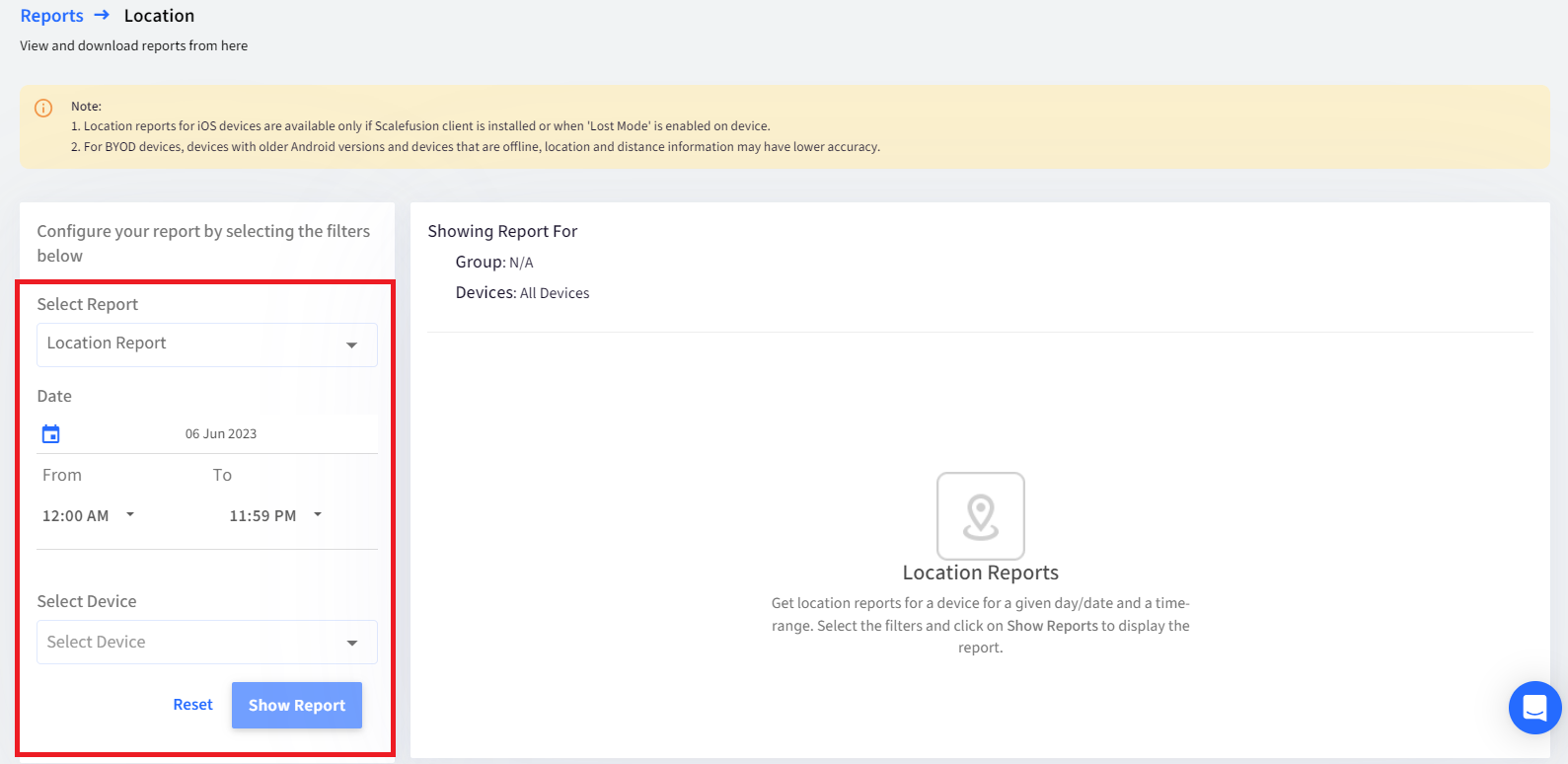

  2. Select Filters

Filter

Description

Select Report

Select Location Report from the drop-down

Date & Timeframe

Select a date and time frame (From and To) for which you want to check Location details. By default current date is selected

Show Report For

Select a device from the drop-down

Report Output

Once you select device, all the location details will show up:

  • IMEI number
  • Last Seen date and time,
  • Location co-ordinates (Latitude and Longitude)
  • Address

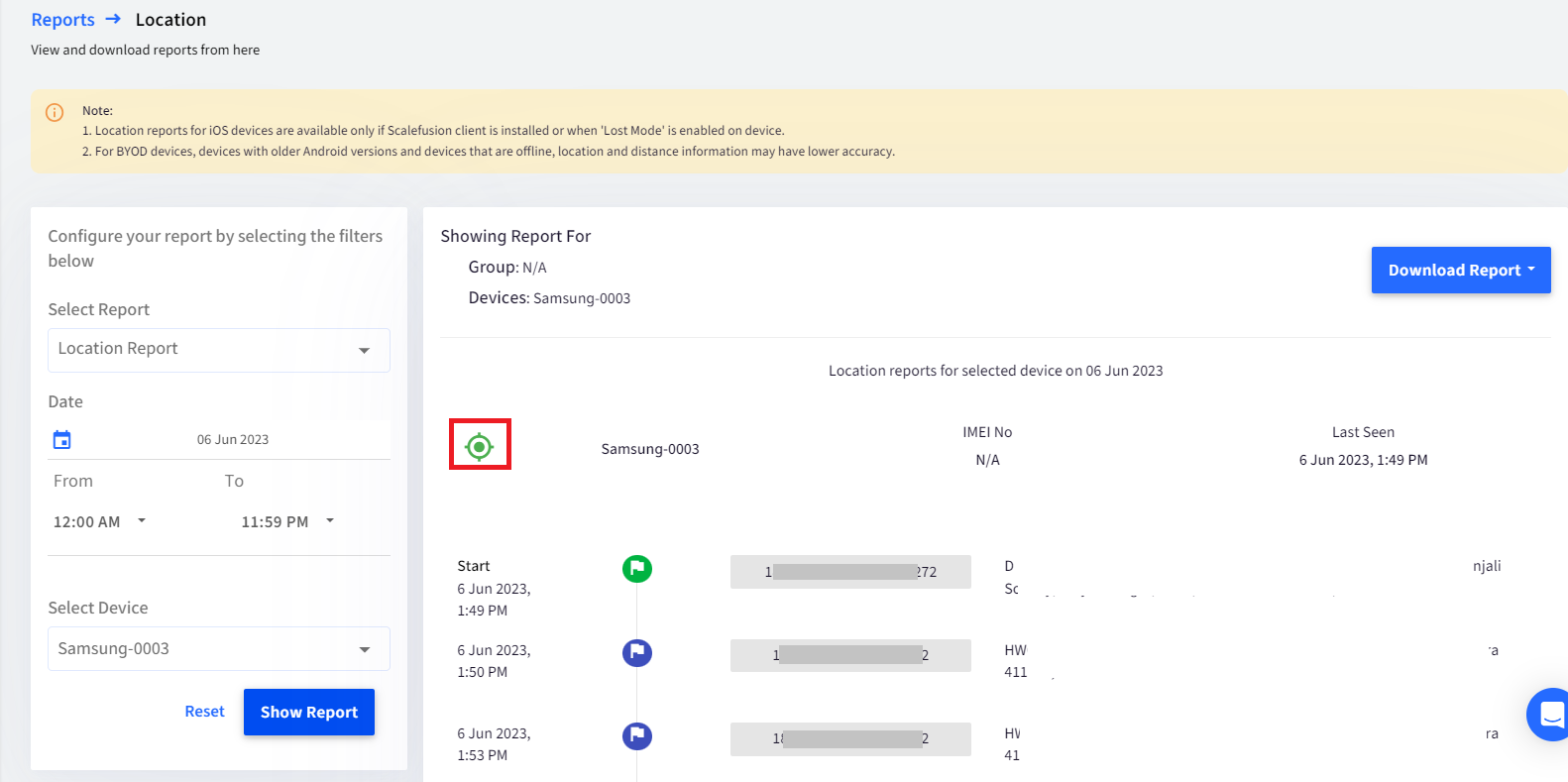

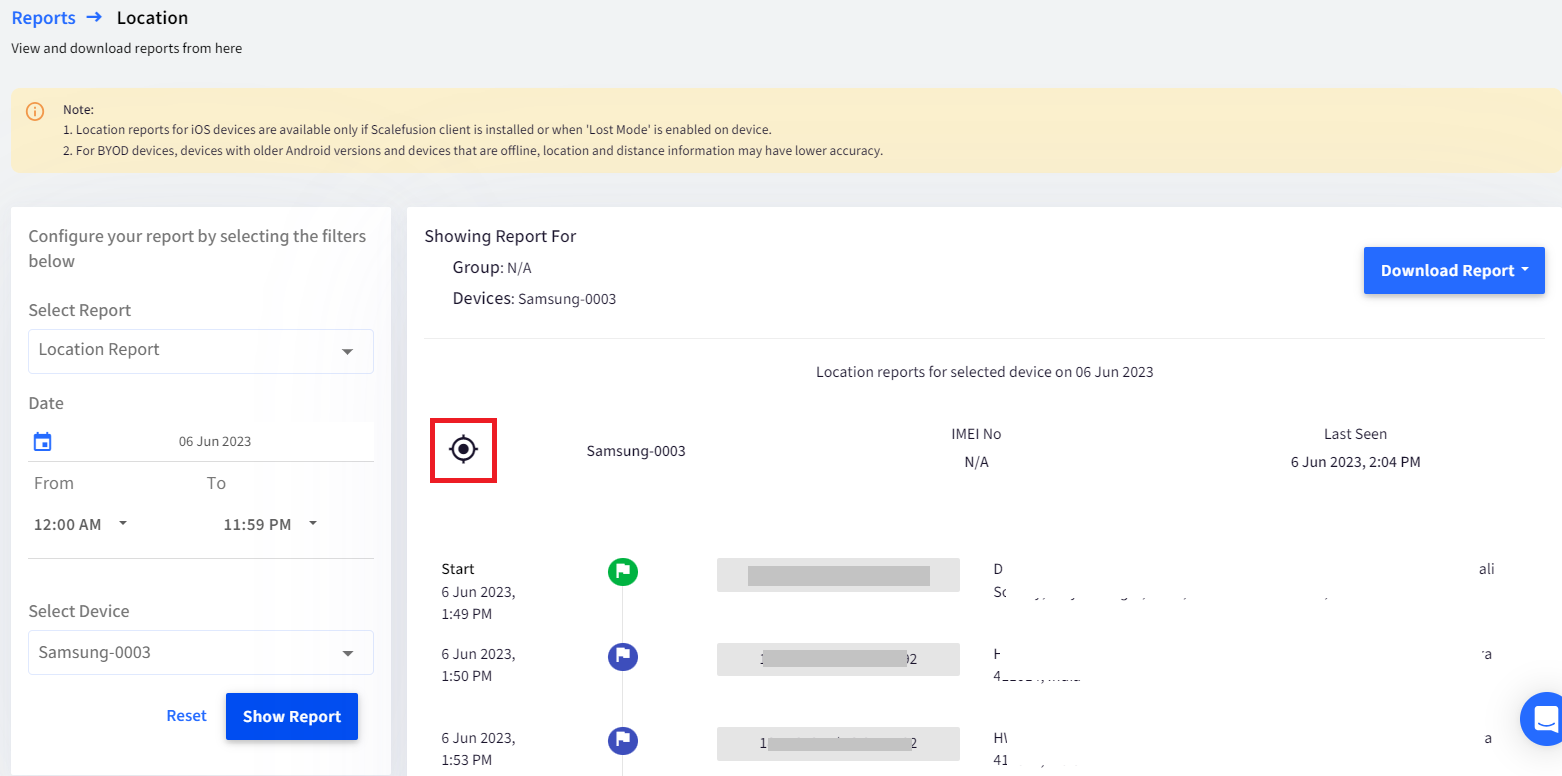

    An icon on the top left in results indicates Location Tracking setting of the selected device:
    - If Location Tracking is Enabled - It is Green
    - If Location Tracking is Disabled - It is Grey

Additional Features

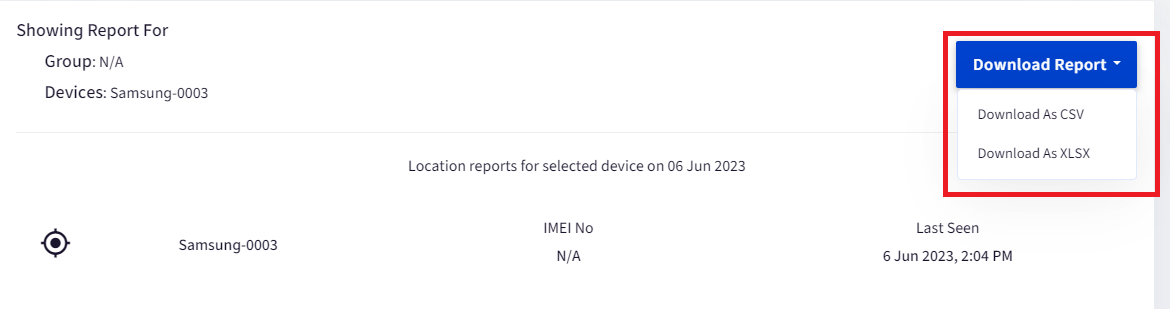

  1. Download - The Location report can be downloaded in CSV format from 'Download as CSV' button on top right
For iOS devices, Location reports are available only if Scalefusion client is installed or when 'Lost Mode' is enabled on device.

Distance Report

This report shows the distance travelled by device during the selected timeframe along with total time it was in motion and details of pitstops. It mainly helps dispatchers, Logistics industry admins to reconcile and track at what locations the device was not moving and for how long, during the distance travelled.

Prerequisites for iOS

Please ensure following settings are pre-configured on iOS devices:

  • Location permission should be set to Always allow
  • Precise location setting should be enabled (Settings > Scalefusion > Location permission > Toggle on Precise location)
Steps to access
  1. Navigate to Reports & Workflows > Reports and click on Location
  2. Select Filters

Filter

Description

Select Report

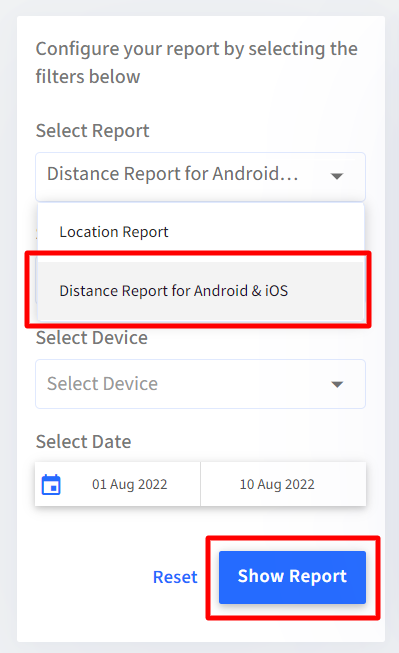

Select Distance Report for Android & iOS from the drop-down

Select Group

Lists Groups and Sub-Groups created. Select a group/sub-group.

Select Device

Lists all the enrolled devices. If a Group is selected, then it lists the devices which are part of that group. If not, select a device for which you want to see the report.

Select Date

Select the Date Range for which you want to check the report.

By default, the start Date is selected as 1st of current month to current day. At any point of time, you can select a date range of 30 days

  1. After selecting filters, click on Show Report
Report Output

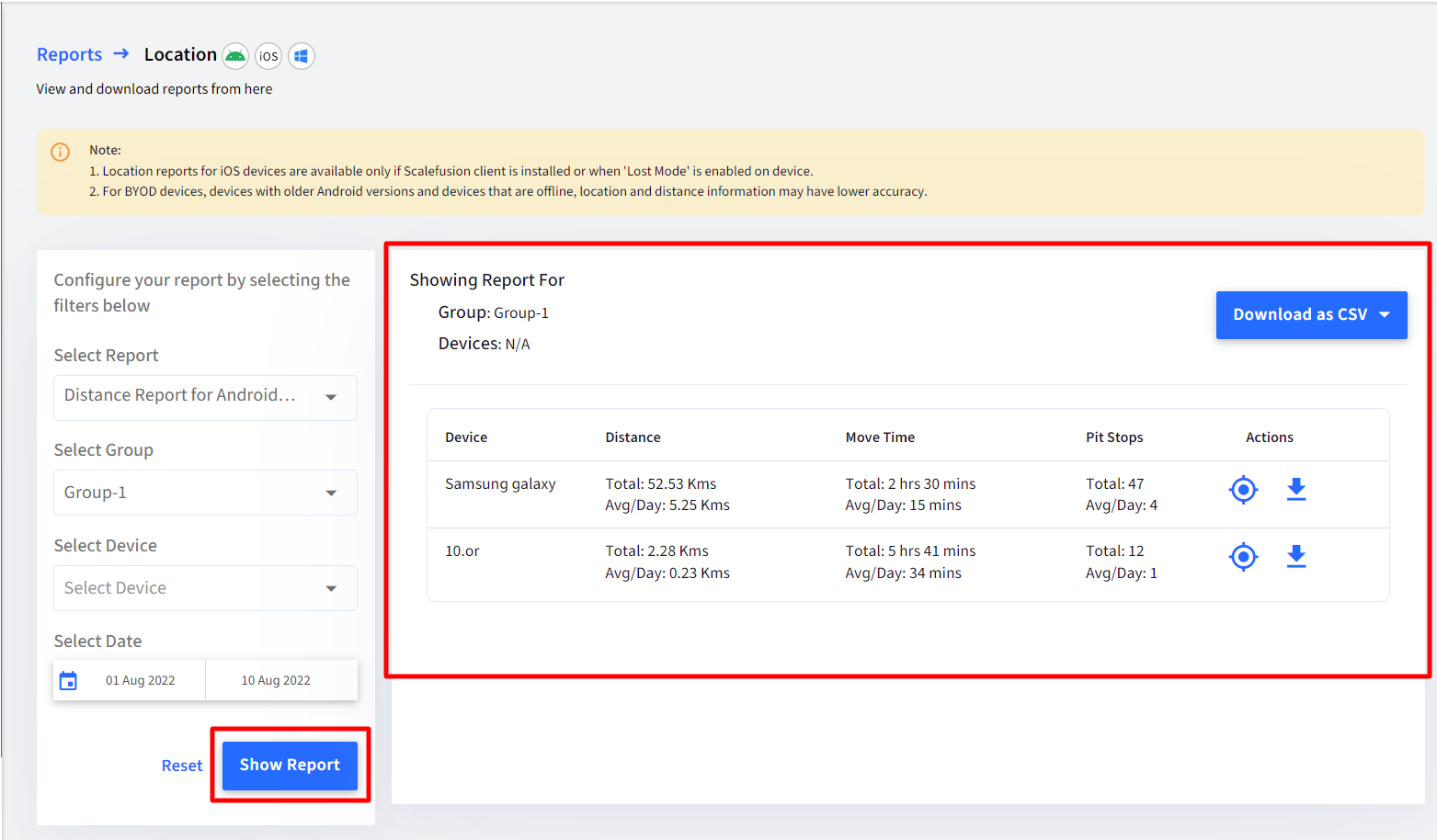

Based on selected filters, following details will show up with respect to distance travelled by the device:

  1. Device: The name of the device
  2. Distance: Total and average distance per day (in kms) travelled by the device
  3. Move Time: Out of the total distance travelled, the time duration for which device was in motion and its average move time per day.
  4. Pit Stops: Displays the no. of times device was not moving and the average pitstops per day.

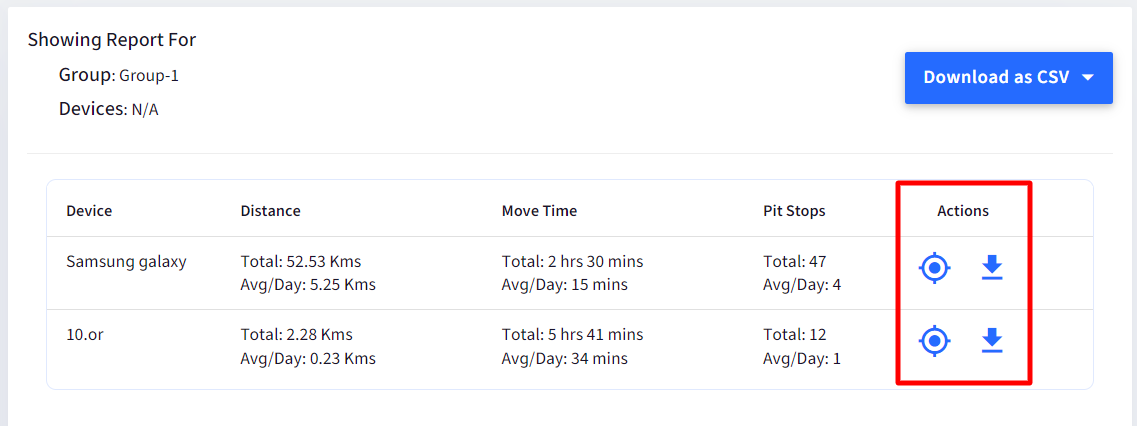

  5. Actions: Following actions can be performed on each device:

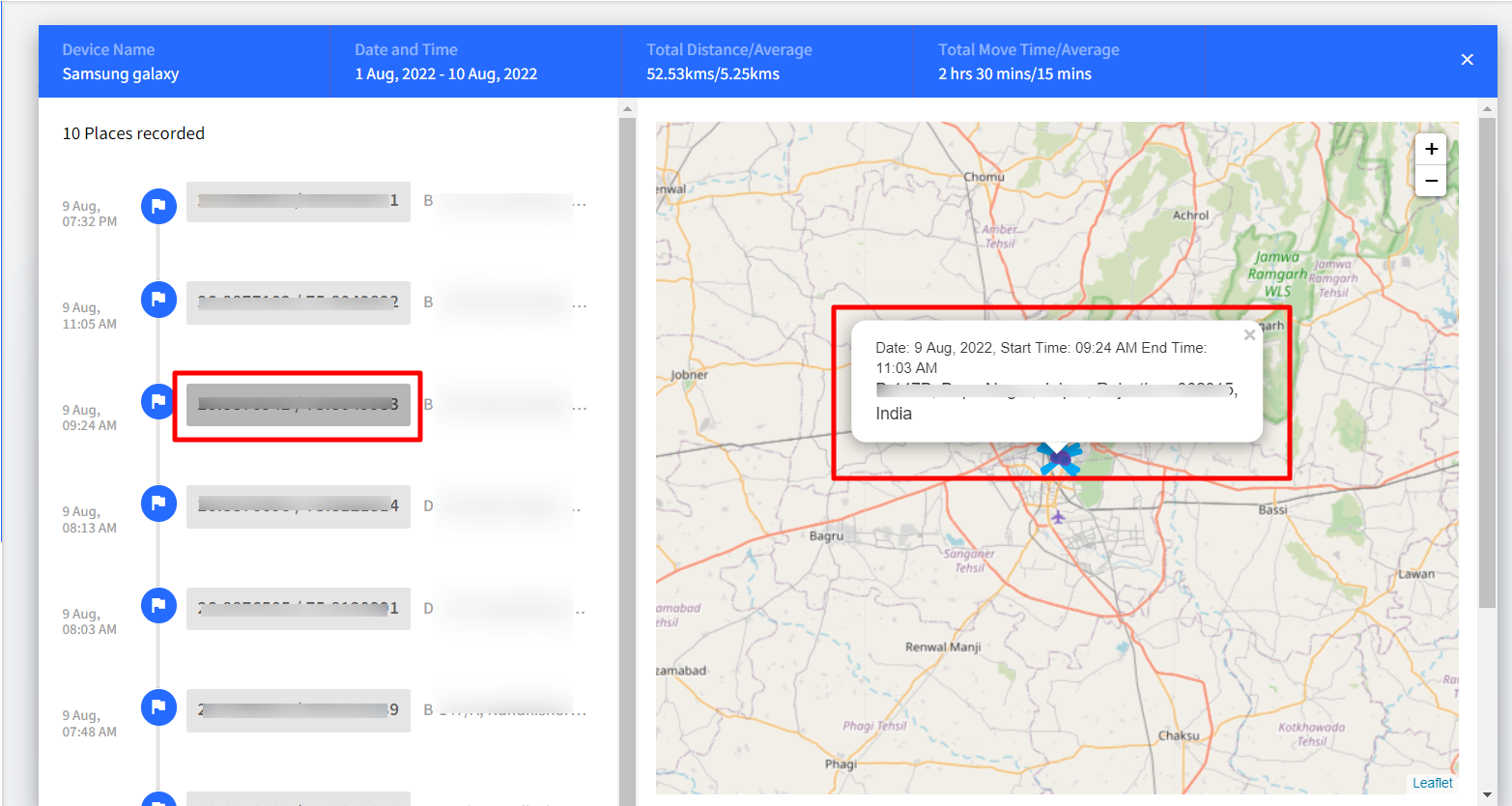

    1. Show map view: For a more granular view with information of pitstops, click on the location icon which opens the map view where it shows the pitstops details, distance travelled and total move time.
      To know at what particular location it stopped, click on the latitude/longitude details and the details can be seen on the map giving location, start time, end time and more.
    2. Download - Clicking on the download icon, downloads a report of the details of distance travelled by the device, in csv format.
      If there are no pitstops the download and download details will be disabled

Additional Features
  1. Download - A report can be downloaded in CSV format from 'Download as CSV' button on top right

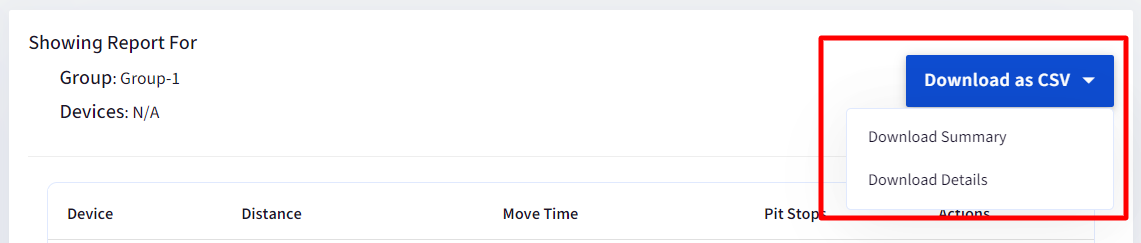

    There are two choices for downloading a report:

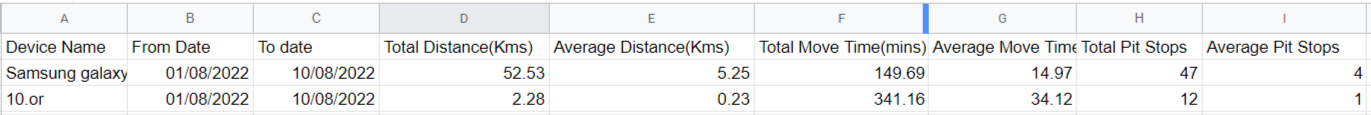

    1. Download Summary: Downloads a summarized report of device(s) mainly showing all the information that is displayed as report output on dashboard.

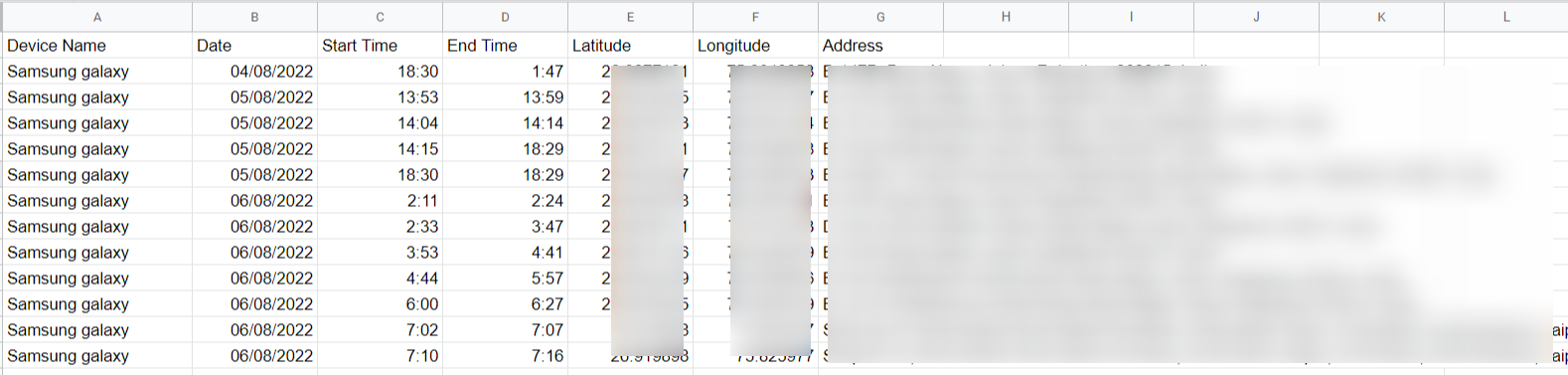

    2. Download Details: Gives a day-wise distance report of all devices. The following information is displayed:
      1. Device Name
      2. Date
      3. Start Time
      4. End Time (The end time is shown up to the Pitstop)
      5. Latitude
      6. Longitude
      7. Address
  2. Reset filters - The filters selected can be cleared and re-selected. The Reset button clears all filters.
Important
For Android, it is recommended to configure following settings on Scalefusion Dashboard for getting close to accurate results with respect to Distance:
- Set high accuracy for Location mode.
- Location tracking mode > Fleet tracking > 1 min
- Location Sampling frequency > High

Geo-Fence Logs

Geofences can be created on Scalefusion Dashboard by defining Latitudes, Longitudes, Radius etc. and then applied on enrolled devices. This enables admin capture the device's move in/out activities. Geo-Fence Logs report tracks and lists all geofence related details.

Platforms: Android, iOS

Category: Advanced

Steps:

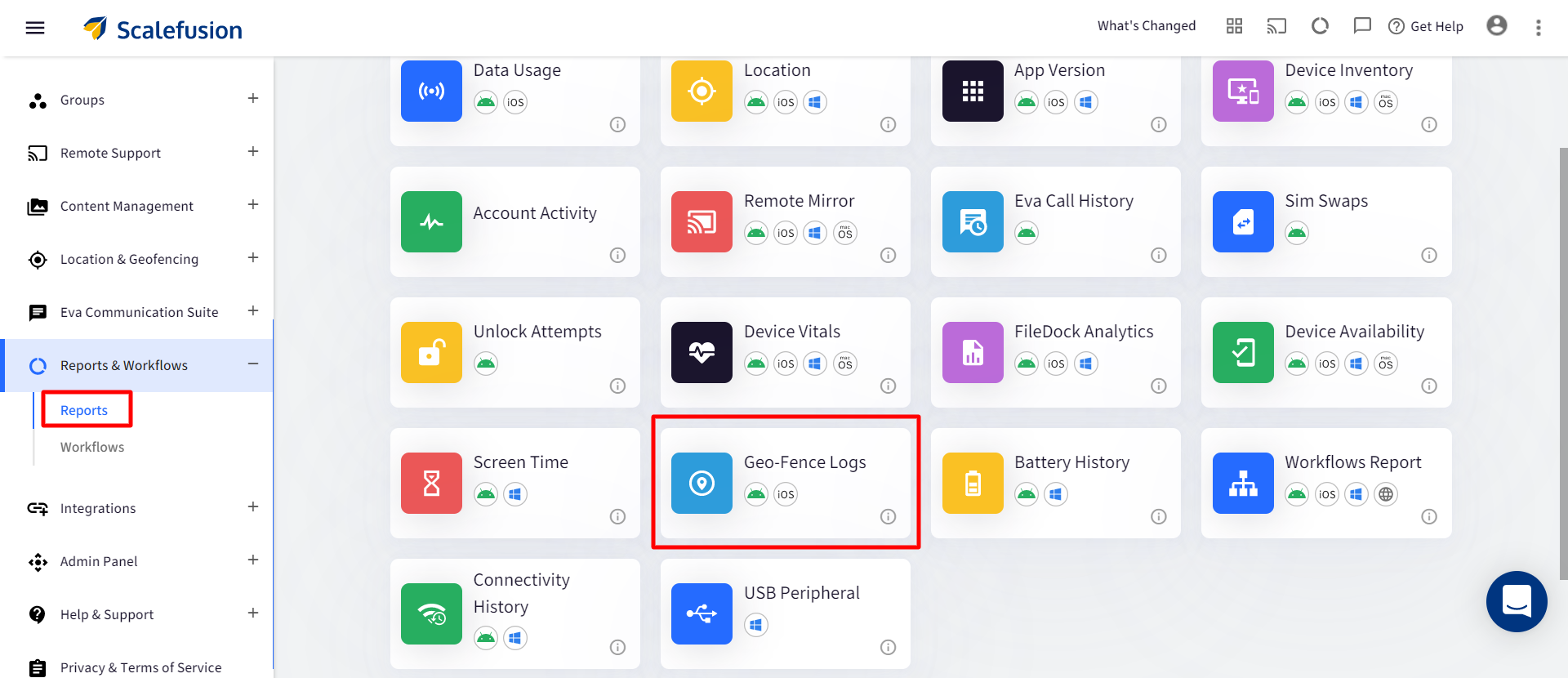

  1. Navigate to Reports & Workflows > Reports and click on Geo-Fence Logs
  2. Select Filters

    Filter

    Description

    Select Geofence

    The Geofences created by the user under Location & Geofencing -> Geo Fencing are listed here. By default, All is selected, that is, the logs for all geofences are displayed. You can select one for which you want to view the logs.

    Select Group

    Lists those Device Groups and Sub-Groups on which the devices have geofence logs reported. You can select one Device Group.

    Select Device

    Lets you select a particular device for which you want to see the geofence logs. Only those devices on which geofence logs are reported, are listed here.

    If you select a group then devices which are part of that group, are listed.

    You can select a device without selecting group also.

    Select Status

    If you want to see report for Moved In or Moved Out status separately, you can select the status here. By default All is selected, that is, report for both status types is displayed.

    Select Date

    Select the Date Range.

    By default, 90 days date range is pre-selected for Enterprise plan users while it is 60 days for Business plan users.
  3. After selecting the filters, click on SHOW LOGS
    The report will be generated.
    If no filters are selected, the report displays details of all geofences

Report Output

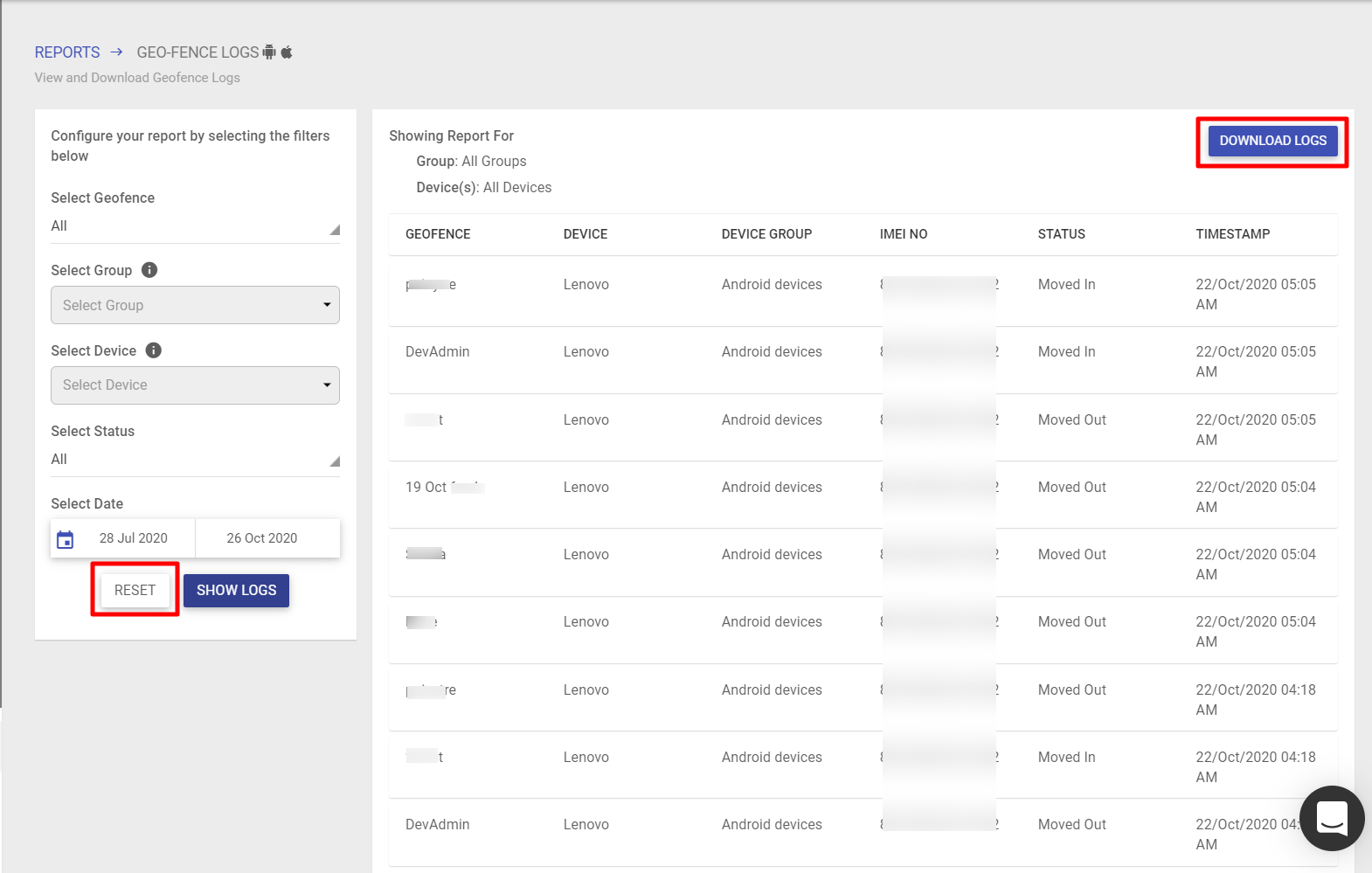

Following details are displayed in tabular format on clicking Show Logs:

  • Geofence Name: The name of Geofence
  • Device Group
  • Device
  • IMEI No: IMEI no. of the device on which Geofence activity took place
  • Status: Status of geofence activity, that is Moved In / Moved Out
  • Timestamp: The exact date and time at which Geofence activity took place. The time will display as per user's preferred time zone selected in Account Details on Scalefusion dashboard. However, if user has not set any timezone then it will display in UTC timezone by default.
If Device Group and/or Device is selected in filters, they will not display in report output. However, they will reflect in the downloaded CSV

Additional Features

  1. Download Logs - These geofence logs can be downloaded in CSV format by clicking DOWNLOAD LOGS button.
    The naming convention of the downloaded CSV files is automatically given based on the selected filters. For example, for a Geofence Logs Report with following filters:
    Geofence Name - Japr
    Device - QS_kiosk-02
    Date - From 26th July To 24th October

    The filename assigned would be
    Japr_QS_kiosk-02_geofence_logs_report_26-07-to-24-10
  2. Reset filters - The filters selected can be cleared and re-selected. The Reset button clears all filters.
