Admins based on On-Premise

With the On-Prem connector setup, IT Admins can setup AD based access to Scalefusion Dashboard which means the admins can sign in to Scalefusion Dashboard with AD credentials. For this, they need to choose AD (setup with OPC) as sign in provider.

This document covers the procedure to migrate an account to AD based account


  1. Scalefusion Account with Enterprise License
  2. OPC Configuration and Integration with Scalefusion Dashboard is done
  3. The user(s) to be migrated should be existing in Active Directory

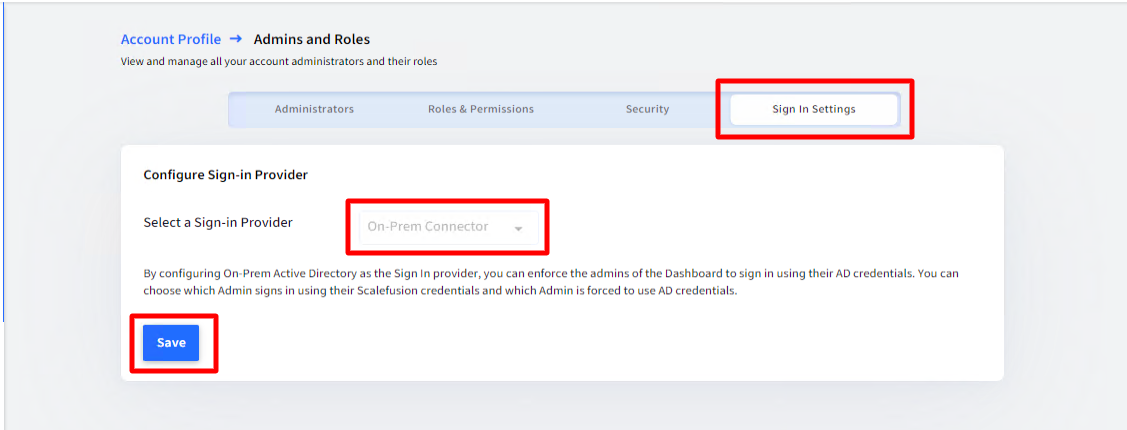

  1. On Scalefusion Dashboard, navigate to Admins and Roles > Sign-In Settings
  2. Note that Sign-In Provider is set as On-Prem Connector
  3. Click on Save
    Save button will be enabled when On-Premise Connector’s setup is successfully completed from Integrations > OnPrem Connector.

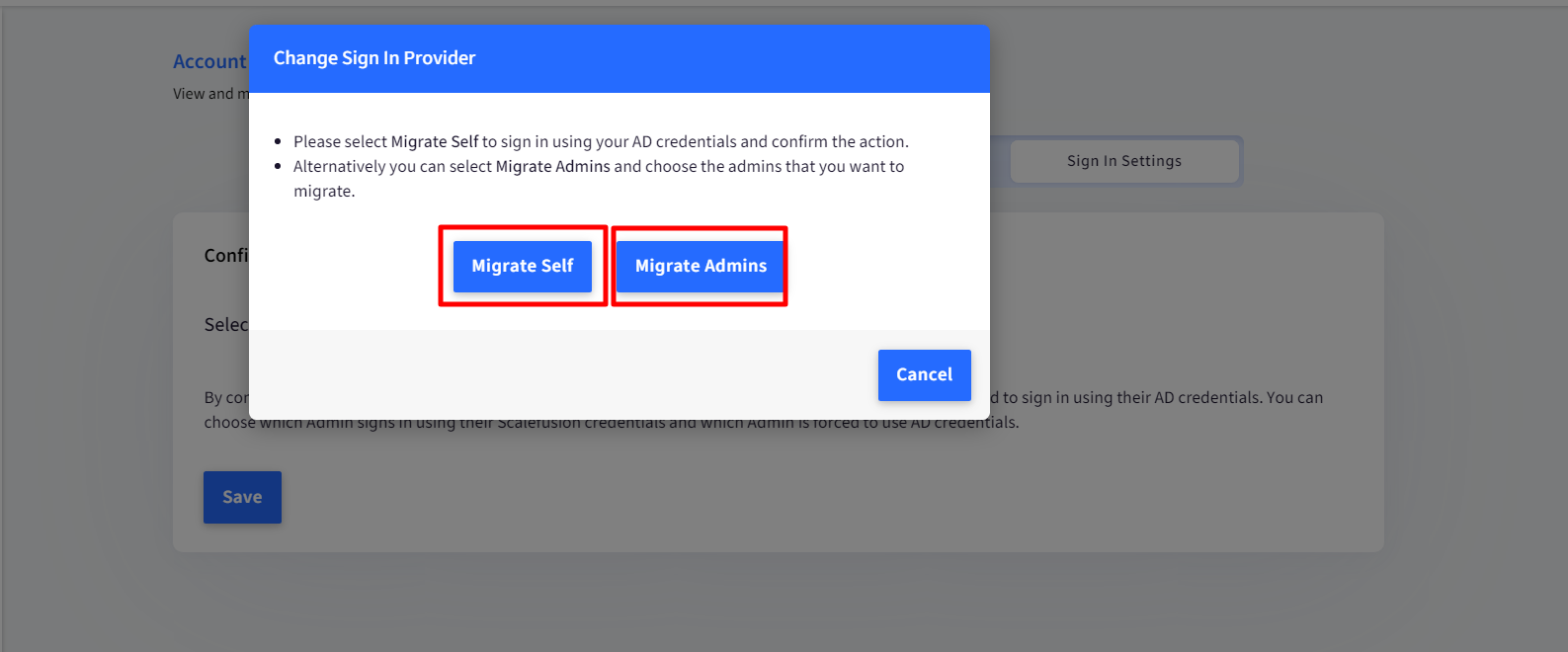

  1. This brings up a dialog Change Sign In Provider with following options:
    Migrate Self: Allows the administrator to sign in to Scalefusion dashboard with AD credentials.
    Migrate Admins: Choose the admin(s) whom you want to migrate to AD based access
Migrate Self

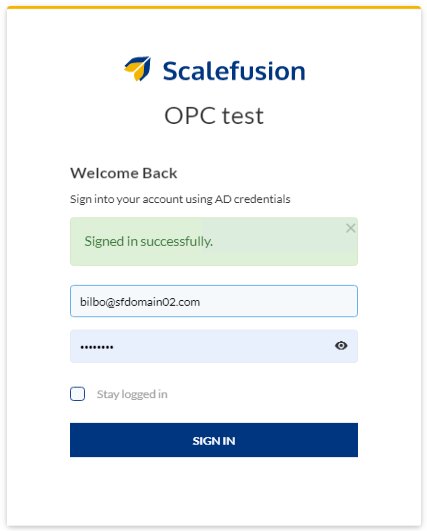

  1. Clicking on Migrate Self, will redirect you to AD user's sign-in page. Enter AD user’s credentials and Sign In
    The user should be an AD User

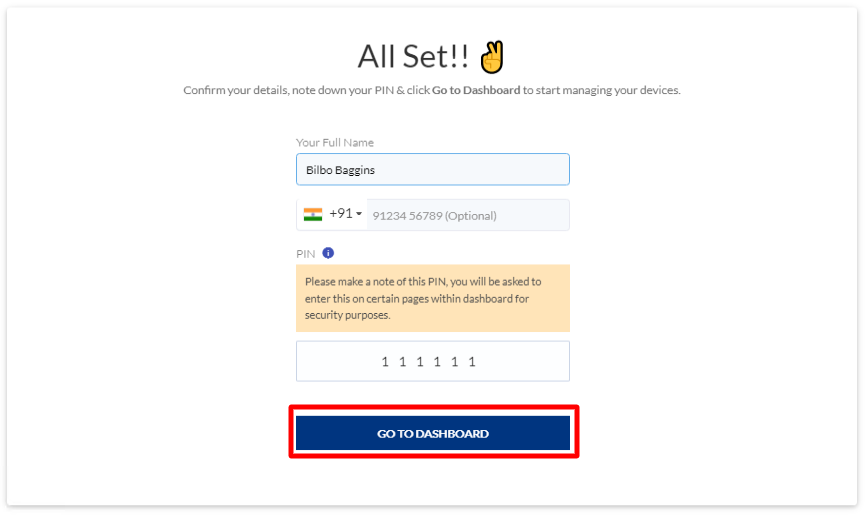

  2. Once the Authentication succeeds you will get the page with a PIN. Make a note of this PIN and click Go to Dashboard
  3. Once the PIN is confirmed, the account is marked as AD SSO based account. The next time whenever this user tries to Sign in he/she will not be asked to enter password because it is authenticated against the provider (AD SSO). This is also indicated on the Scalefusion's Sign In screen where Password field is not there.
  4. After Sign-In, the user lands on Sign In Settings with a dialog to select the admin accounts which he wants to migrate to use AD based sign in. The user can choose to MIGRATE or choose the option LATER.
  5. The settings are successfully configured. On Sign In settings page you will see additional buttons to Disable and Migrate Admins. This indicates that the migration is successful.
Migrate Admins

In the Change Sign In Provider dialog box, when you click on Migrate Admins, a dialog box comes up showing all those admin accounts which can be migrated to AD based sign in. Select the admin accounts that have to be migrated and click on Migrate

The admin gets migrated to AD based Sign In. Select Later if you do not want to migrate the admins at this point of time.

In User Management > Settings the setting Enforce Users to Sign in using AD SSO is accessible only when you migrate the owner or its admin after setting up OPC which allows BYOD users to enroll using AD credentials

Disable AD Based Access

To disable AD Based access,

  1. Navigate to Admins and Roles > Sign In Settings
  2. Under Sign In Settings click on the button DISABLE
  3. A dialog box comes up asking you to set a password. This password would be used to sign in to Dashboard once AD based access settings get disabled. Click Save after entering password.
