Message Broadcasting

Through Broadcast feature in Eva Messenger admin can send a common message to a list of devices. A separate channel named Broadcast has been created where admin can compose and send message which is broadcasted to all the subscribers (chosen by admin) of the channel. Unlike Close Channel, in Broadcast the subscribers can only view the message sent by admin, they cannot reply on it.

The feature is quite useful wherever admins want to send a common message or make an important announcement to a mass of people. For example, an IT Admin, who wants to inform all users that they need to install a security patch on their devices or a company's HR has to inform all the employees that a particular HR policy is updated. In this case, HR Admin can broadcast a message along with updated policy file which briefs about the changes in the policy.

This document describes how broadcast messaging can done.

Before You Begin

  1. Make sure you have the Eva Communication Suite enabled for your account.
  2. All the devices have been updated to Eva application -> Android: v4.5.0.2224 (56)
  3. Dashboard version -> v18.9.0

Setting up a Broadcast channel

  1. Sign In to Scalefusion Dashboard.

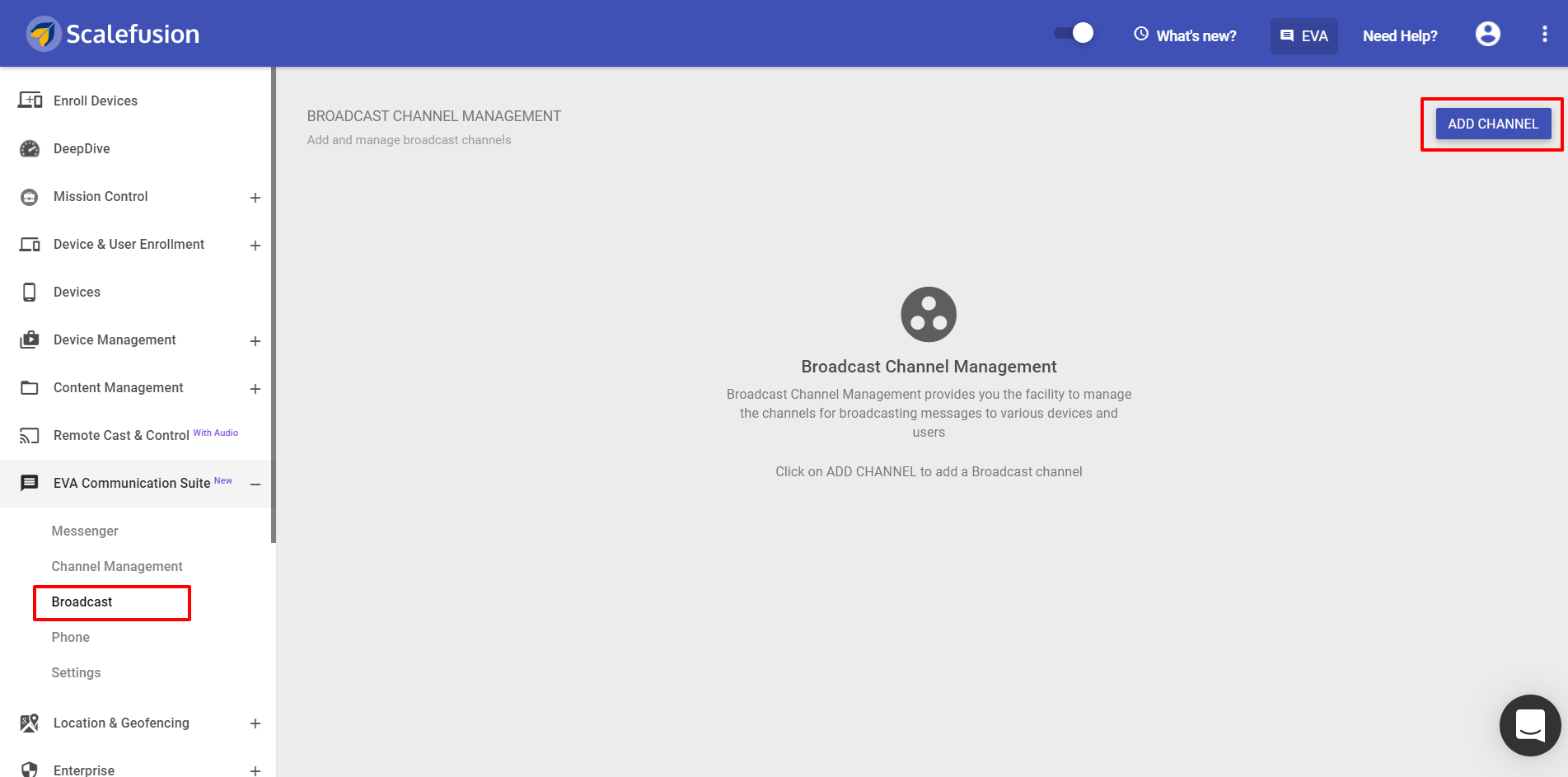

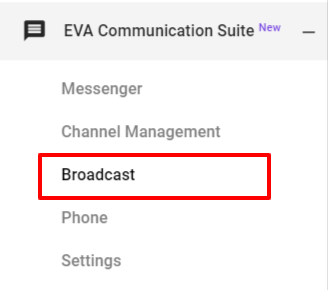

  2. Navigate to Eva Communication Suite > Broadcast
  3. Click on the button Add Channel

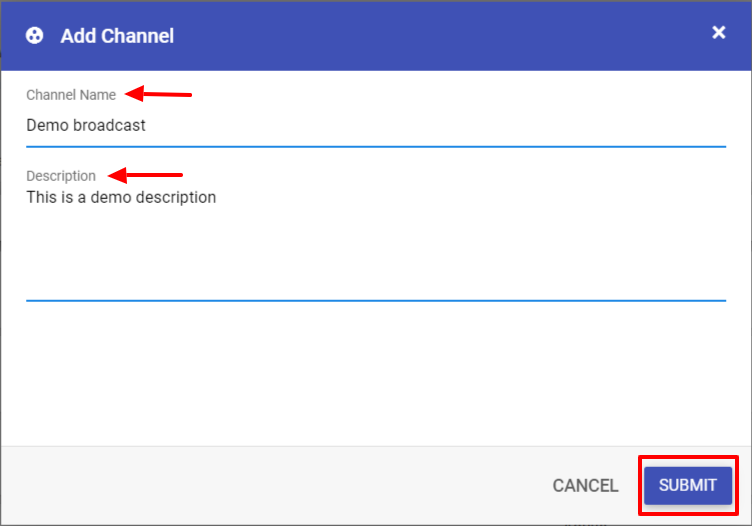

  1. This will open the Add Channel dialog box. Here enter the following:
    1. Channel Name - Any name you want to give to this channel
    2. Description - Here you can enter a short description about the channel
    3. Click Submit

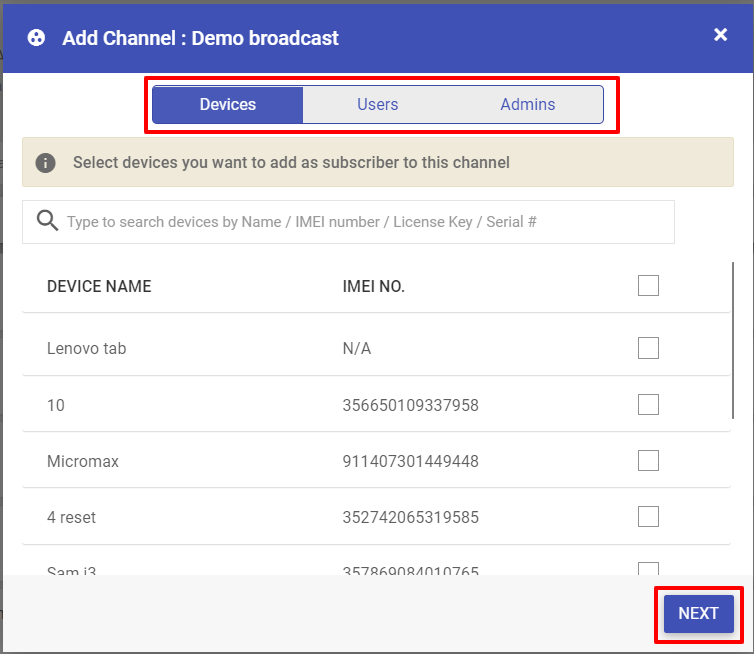

  1. A new dialog box comes. Here, select Devices, Users and Admins who the admin wants to add as subscribers to the channel. The Devices which are enrolled will be visible here. Select devices and click Next. Select the users whose devices should be part of the channel and click Next. All admins (Group Admin, Device Admin, Co-owner or any custom role), will be listed here. Select the Admins and click Save

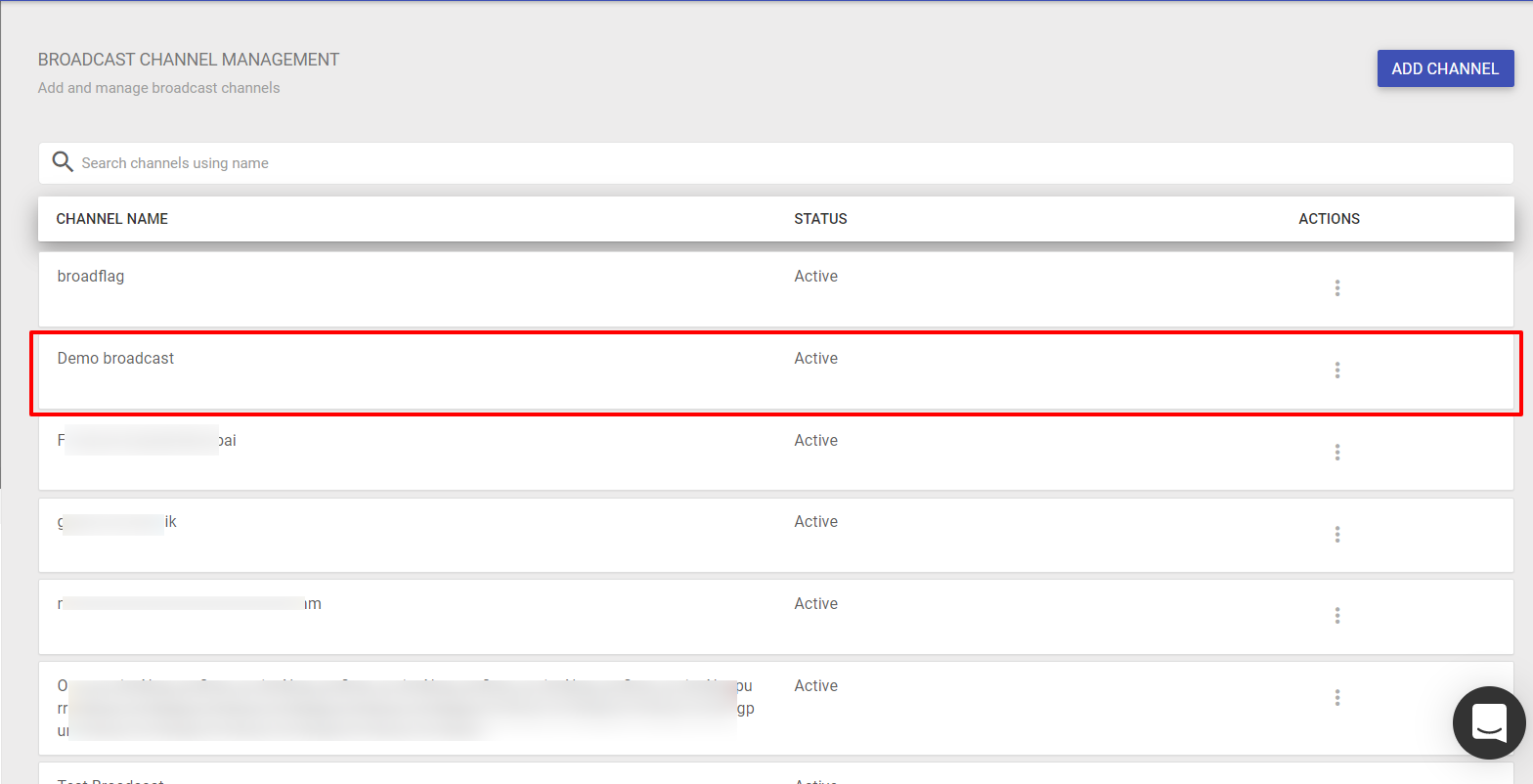

  2. The channel gets created and is available in the list of channels, in Active Status.
  3. All the device owners / users / admins who have been selected by the admin become subscribers of this channel.
Additional Actions on a Broadcast Channel

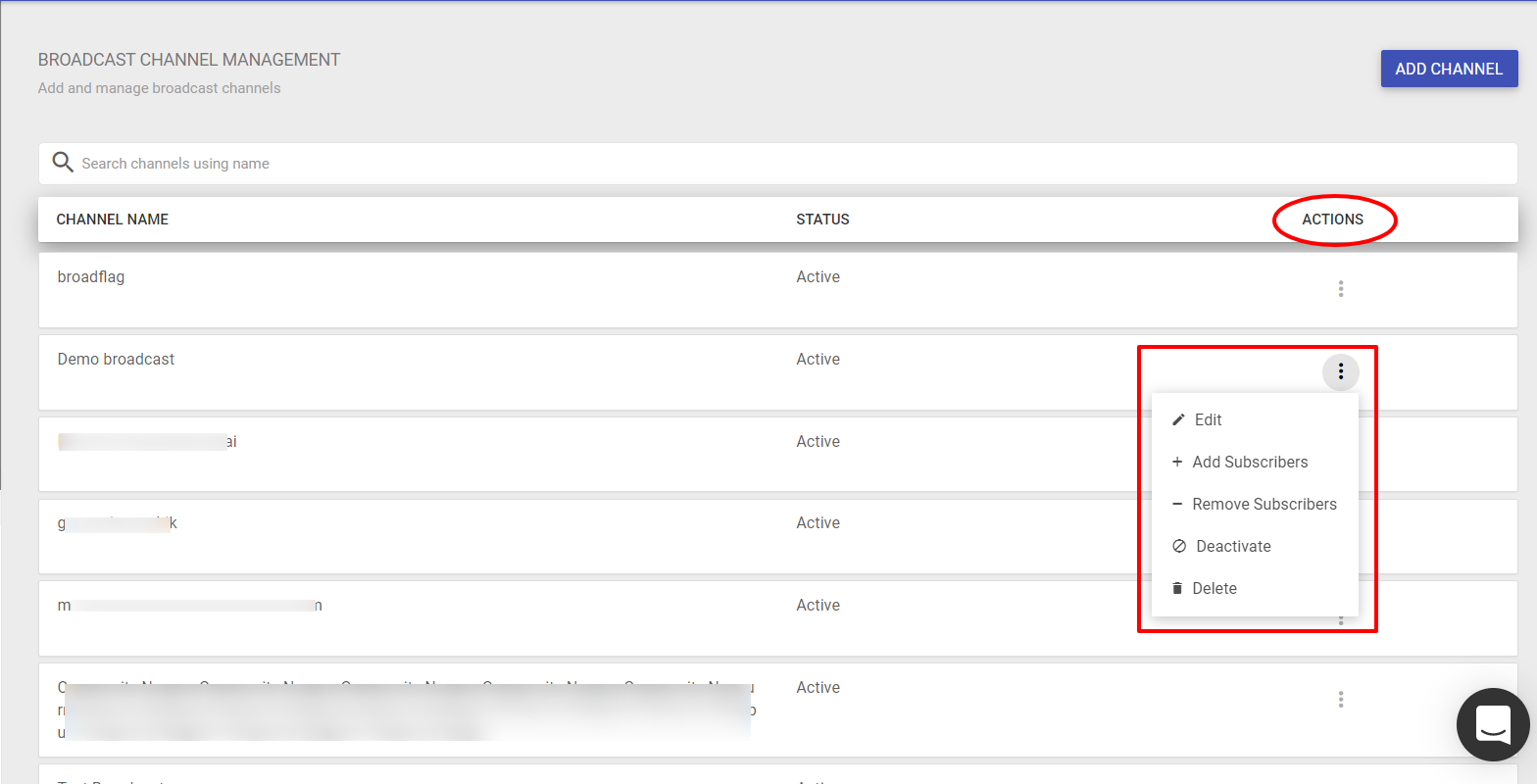

From the dashboard, you can perform following actions on a broadcast channel:

  1. Edit: The name and description of the channel can be edited
  2. Add Subscribers: Add more subscribers to this channel. Clicking on this opens the same dialog box where admin can select more devices, users and admins to be included in this channel.
  3. Remove Subscribers: All those who have already subscribed to the channel will be listed and admin can remove the subscribers. Click on Remove Subscribers, the dialog box will open, select devices/users/admins which have to be removed and click Remove Subscribers.
  4. Deactivate: A broadcast channel can be deactivated with this option. When you deactivate a channel, the broadcast conversation gets removed from the devices till the time you activate the channel again. A channel once deactivated can always be activated again.
  5. Delete: The channel can be deleted. Once deleted, it gets permanently removed from the devices of all the subscribers as well as from the dashboard.

Sending Broadcast message

  1. Navigate to Eva Communication Suite > Messenger,

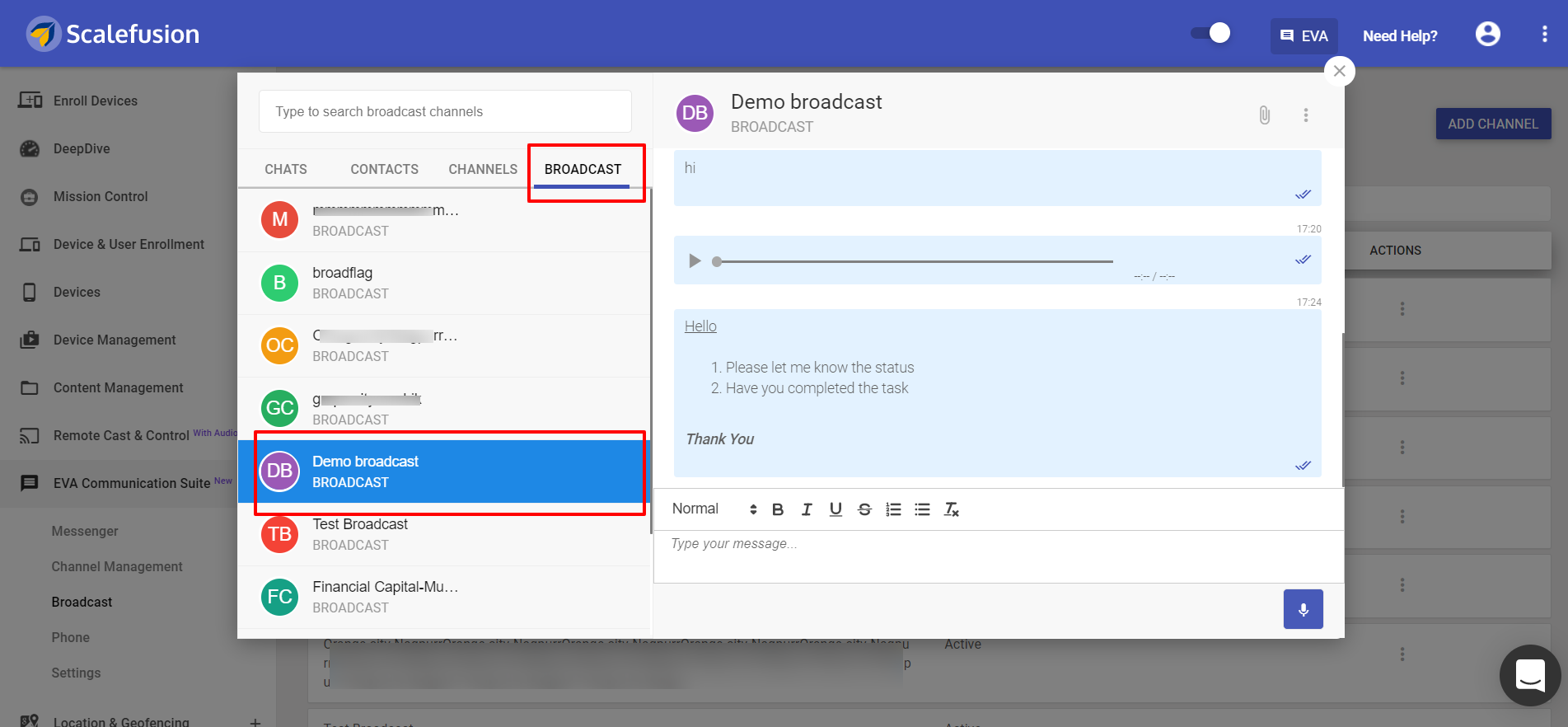

  2. All the broadcast channels will be listed under the tab ‘Broadcast’.
  3. The admin can select the broadcast channel, compose the message in the right side area and click on Send button to send messages.

Features:

  1. Admin can send plain text message as well as media messages (Audio, Image, Any File).
a. Image or any other file can be sent through the attachment icon on the top.
b. To send audio message, click on Mic button at the bottom

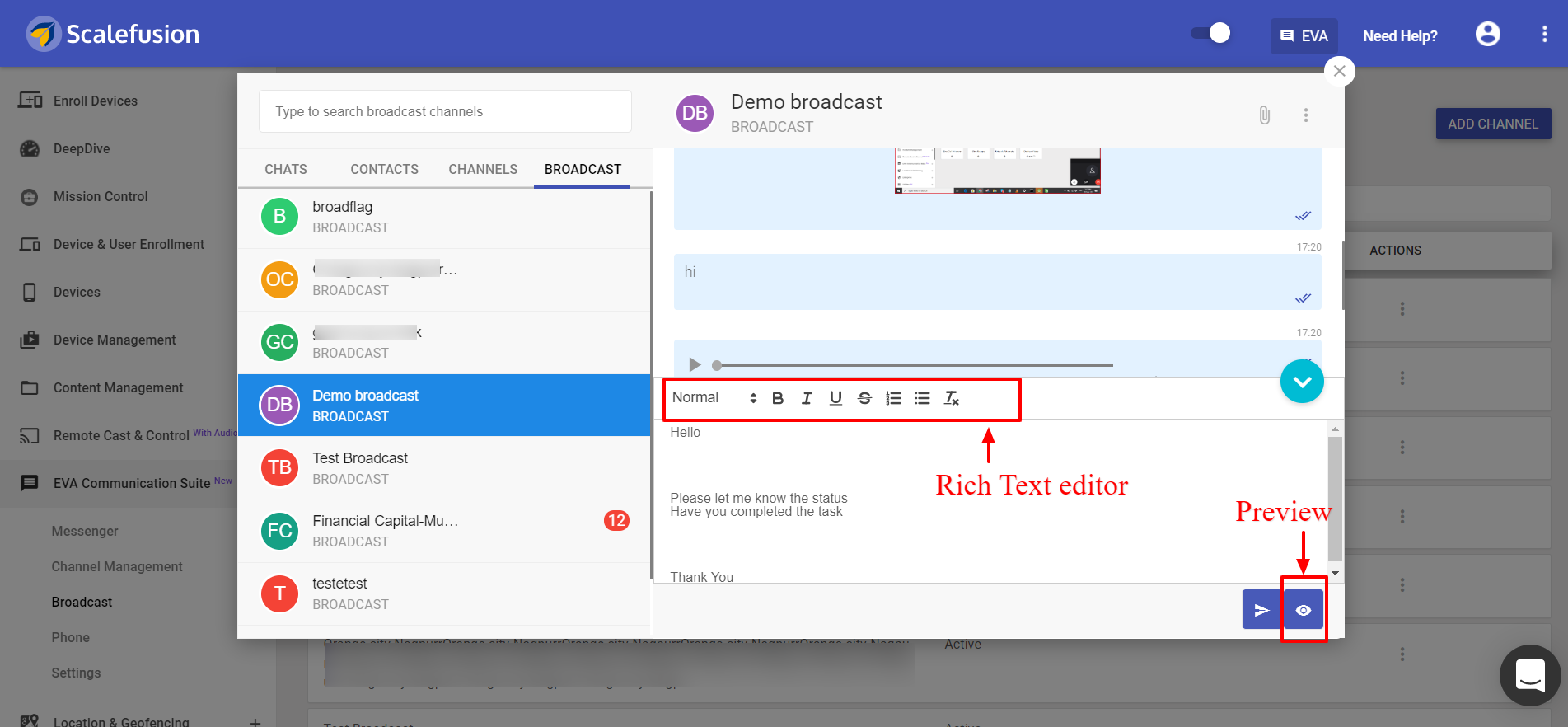

  1. Text editor: Text editing features are available through which admin can make the text bold, underline, italicize as well as use other features with the help of Rich Text Editor.
  2. Preview: Before sending the message, there is an option to preview it. When you type your message, a preview button appears next to the send button. Clicking on it opens its preview and you can see how the message will look like once you send it. This way you can edit the message (if required).

Additional Actions

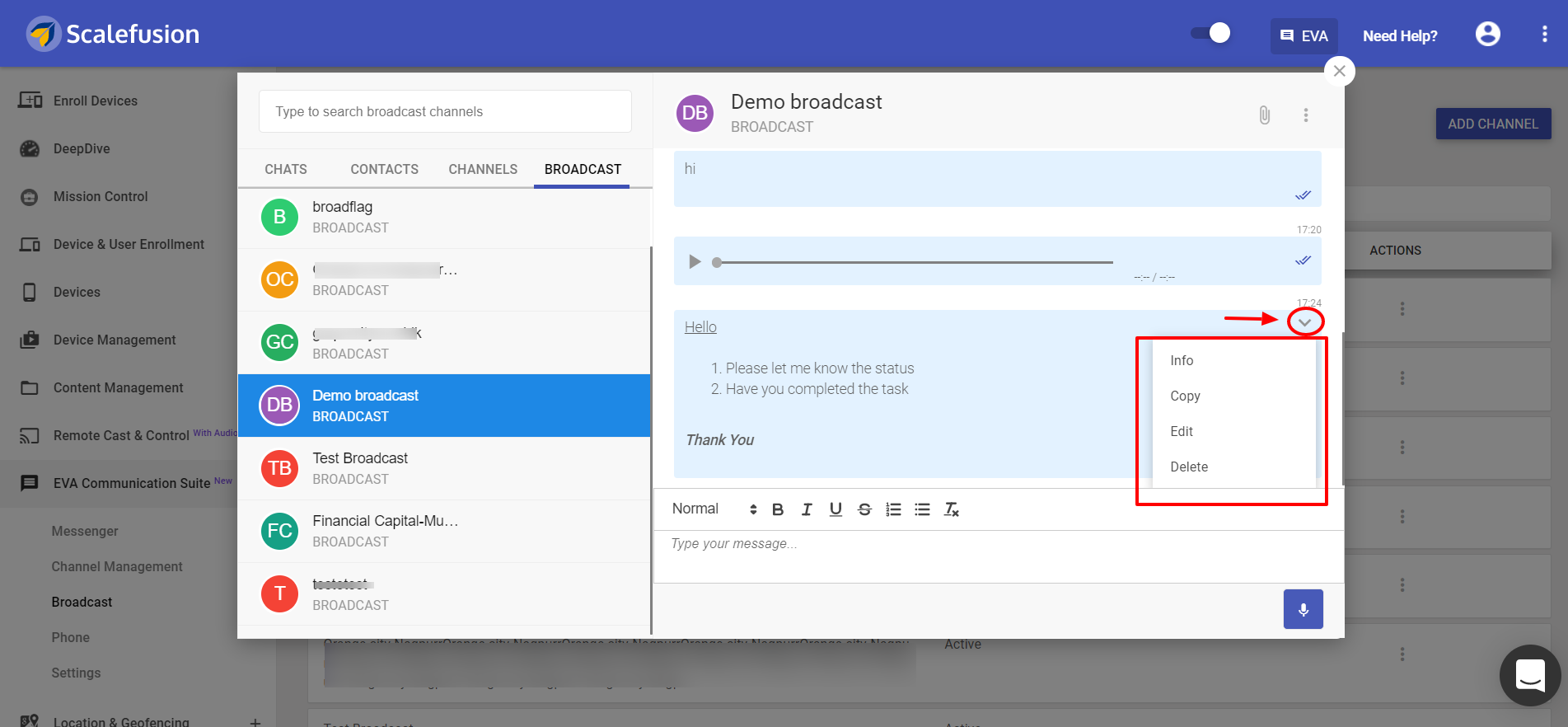

When a message is broadcasted, following actions can be performed on it. These options can be accessed by clicking on the down arrow on the top right of the message (shown in screenshot below):

  • Info: This basically shows the message sent status, that is, message delivered, undelivered, read by etc. All this information is shown in a small window that opens over the message area. This way admin can know the current status of his broadcast.
  • Edit: The message content can be edited. Click on Edit and the message will again show up in the text area where you can edit and resend it.
  • Copy: Copies the message. If you want to send the same message to another broadcast channel, you can utilise this feature
  • Delete: Deletes the message altogether.
'Edit' and 'Copy' options are available only in case of a text message

On the Device

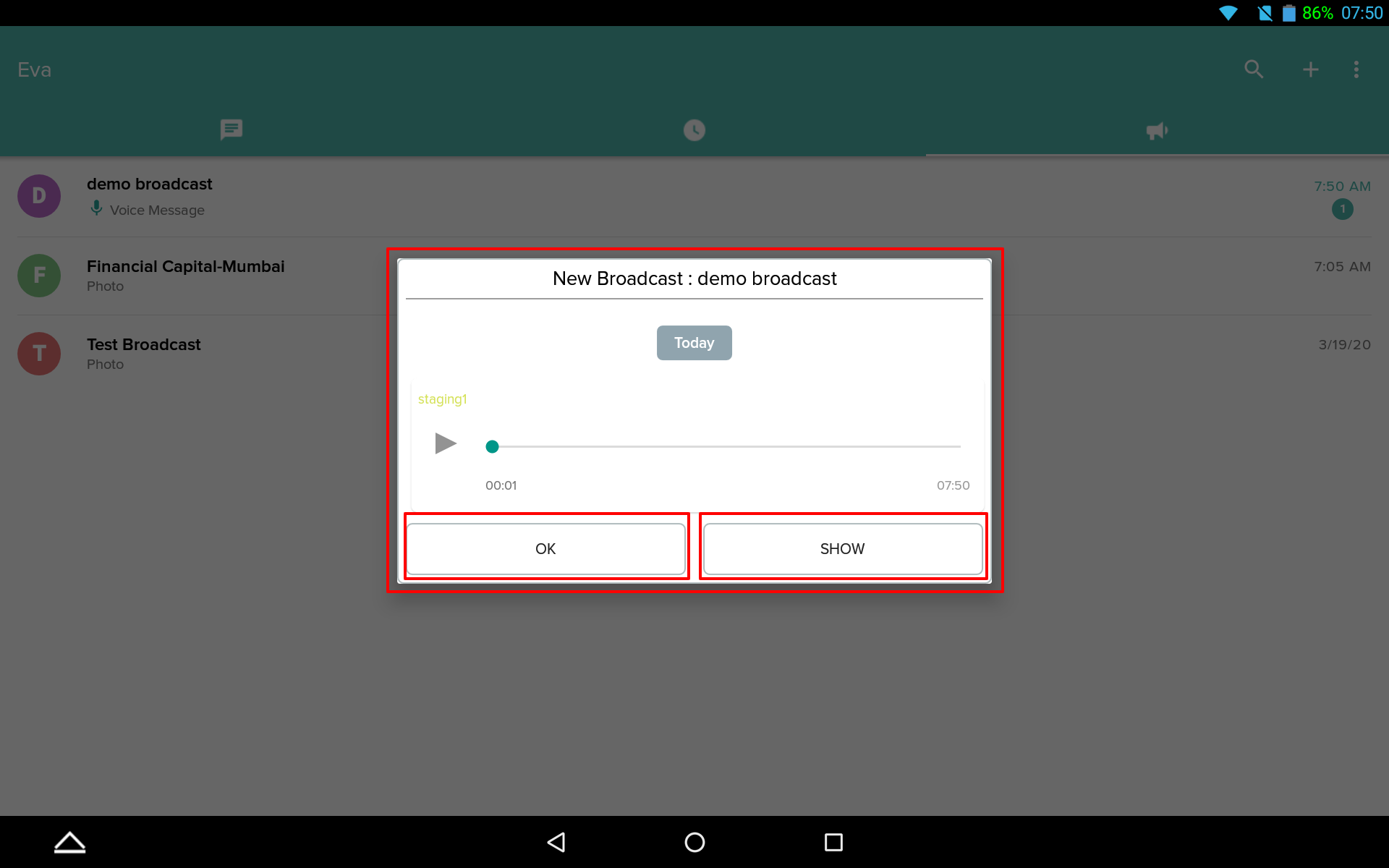

Whenever a broadcast message is sent by the admin, for the receiver it flashes on the top of Eva application on his device. You can read the message from here also.

  • OK: Closes this flash message window

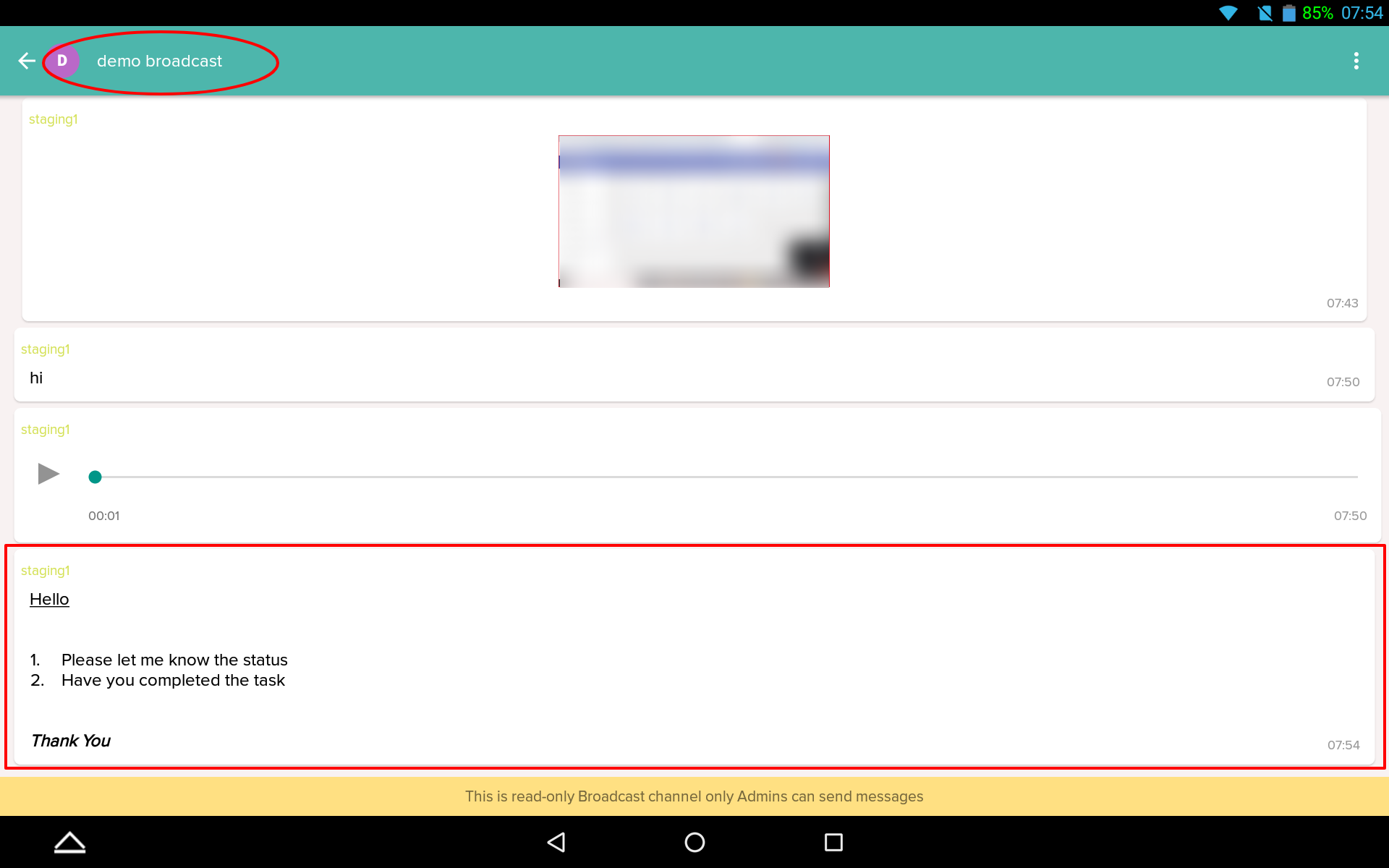

  • SHOW: Leads you to the Broadcast channel area and shows this message under the Broadcast channel on which the admin has sent this message.

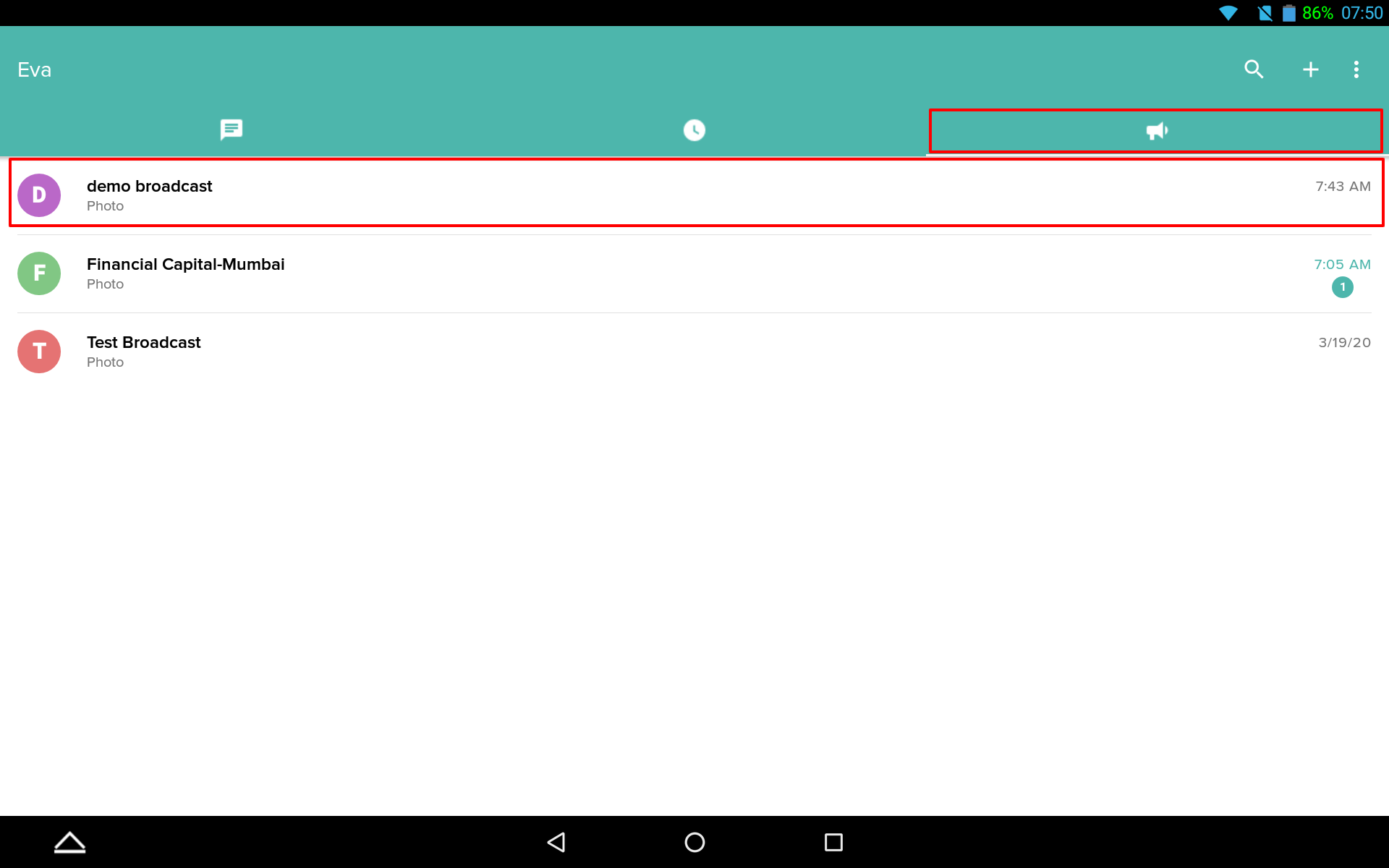

Alternatively, the message is also displayed under the Broadcast tab, in the specific Broadcast channel on which it is being sent by the admin.
